Additional Applications with 6 Voltage Inputs
General
Description
For a primary object with voltage inputs from two (load) sides, for example, reclosers, both sides must be
supervised. Each side has a set of 3 voltage inputs. 7SC803 supports 6 voltage inputs, that is, the terminals VA,
VB, VC defined as side 1 voltage inputs and V2A, V2B, V2C as side 2 voltage inputs. The following figure
shows a typical connection.

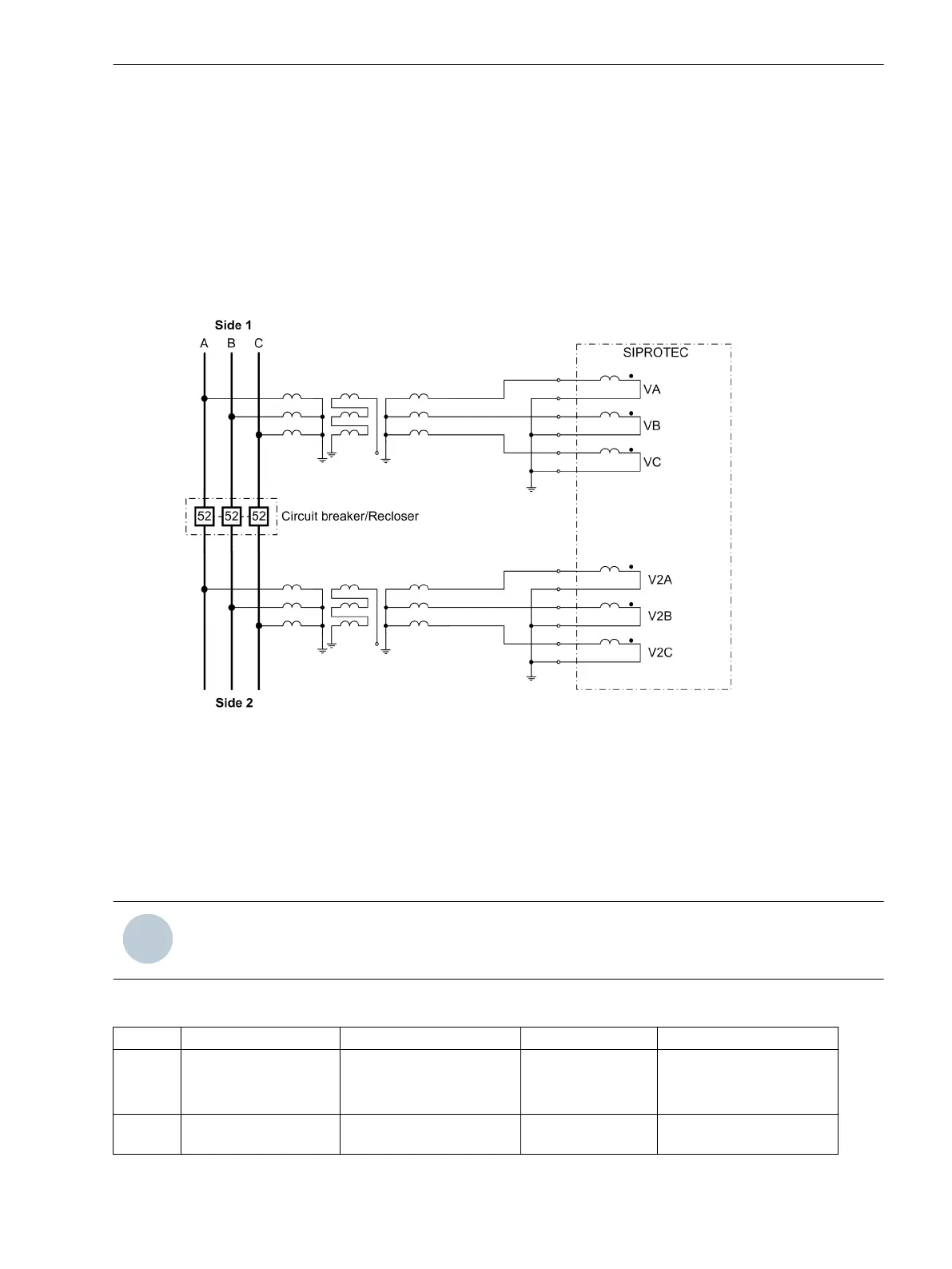

[dw_Side_2_UserScenarios, 1, en_US]
Figure 2-141 The user scenario with 6 voltage inputs
Besides the functions of side 1 introduced in the previous chapters, 7SC803 provides additional functions of
side 2. All side 2 parameters and information are marked with Side 2 or S2.
Setting Notes
All parameters of three voltage inputs of side 2 can be set separately from side 1. However, the parameteriza-
tion is the same. The available parameters are listed in the setting table.
i
i
NOTE
To enable the applications of side 2, the parameter 712 VT Assignment must be set to 6xPT.
Settings
Addr.
Parameter Setting Options Default Setting Comments
219 VT Con. 3ph S2 V2an,V2bn,V2cn
V2a2b,V2b2c,VGn
V2a2b, V2b2c
V2an,V2bn,V2cn VT Connection, three
phase Side2
220 Vnom prim S2 0.10 .. 800.00 kV 20.00 kV Rated Primary Voltage
Side2
2.30
2.30.1
2.30.1.1
2.30.1.2
2.30.1.3
Functions
2.30 Additional Applications with 6 Voltage Inputs
