7SC8022* and 7SC8025*
[kl-uebers-7sc80-2, 1, en_US]

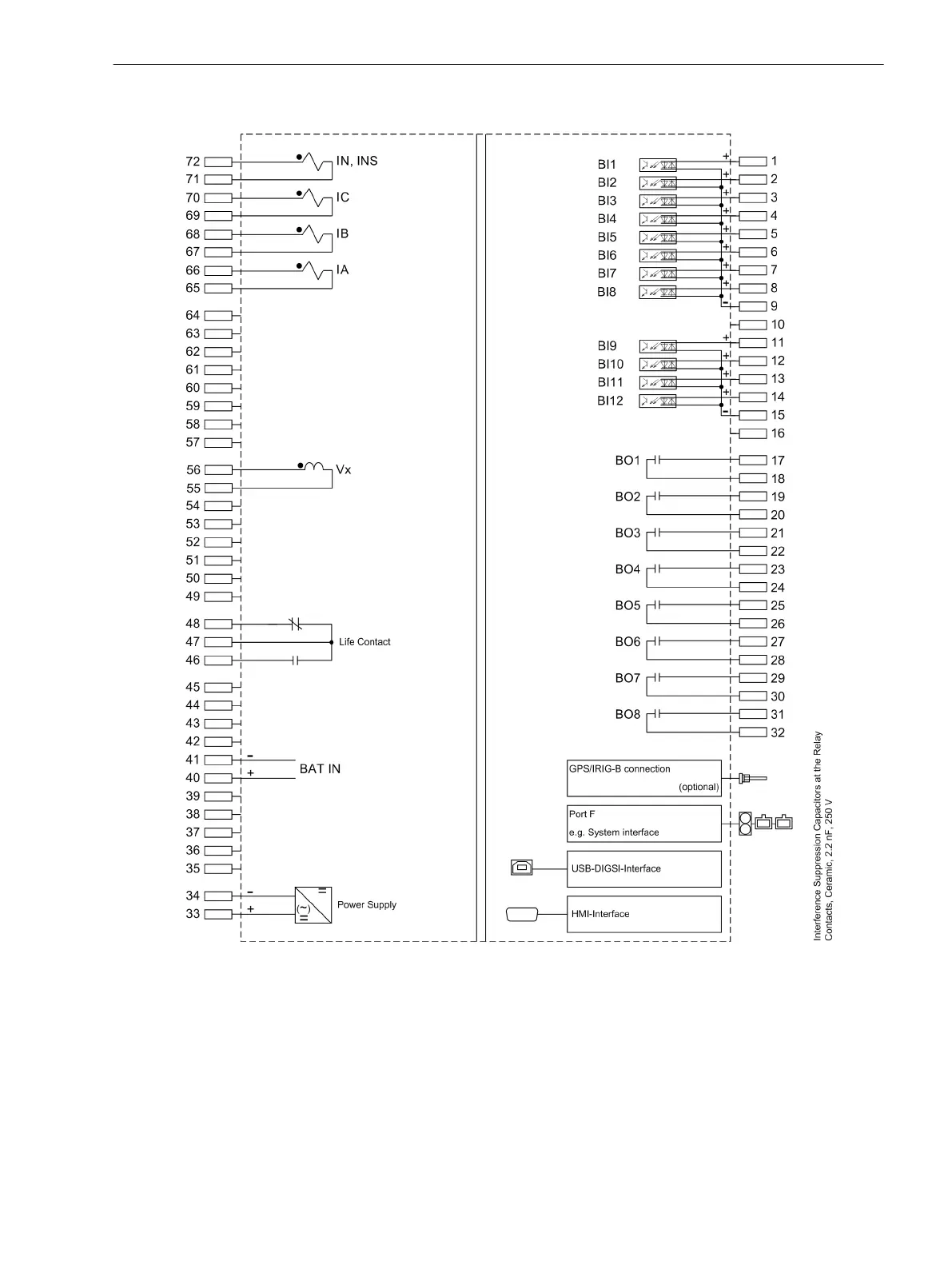

Figure B-2
Overview Diagram 7SC8022* and 7SC8025*
Terminal Assignments
B.1 7SC80 — Housing for cabinet flush mounting and cabinet surface mounting
SIPROTEC Compact, 7SC80, Manual 593
E50417-G1140-C486-A8, Edition 07.2017
