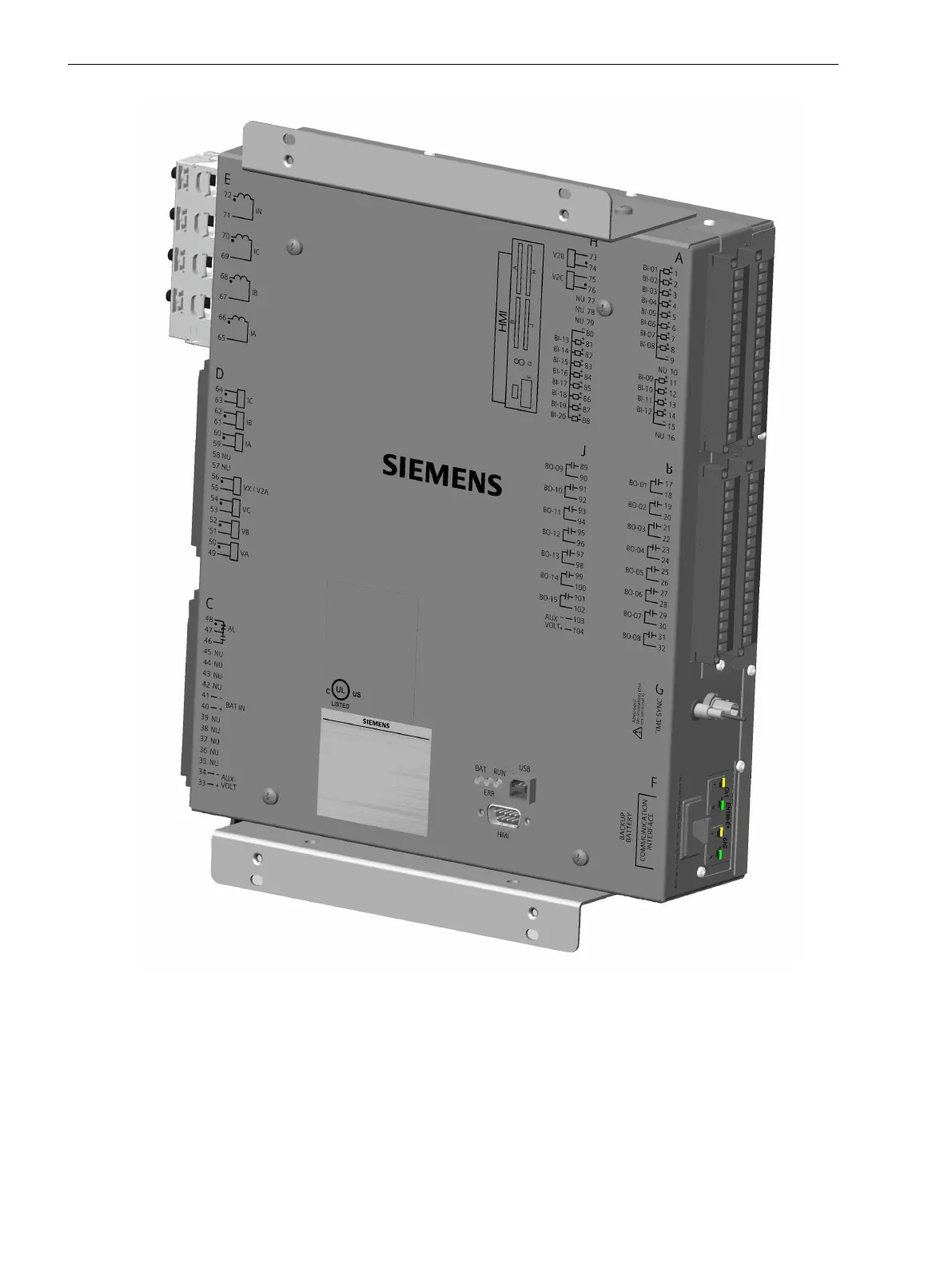

Figure 3-10
Device view
Housing Assembly
•
Fix the device to the mounting brackets with 4 screws.
•
Loosely screw the two mounting brackets into the rack or cabinet with 4 screws each.
•
Tighten the 8 screws of the mounting brackets in the rack or cabinet.
Mounting and Commissioning
3.1 Mounting and Connections
