[7sc80-hmi-direct-121110-new.vsd, 1, en_US]

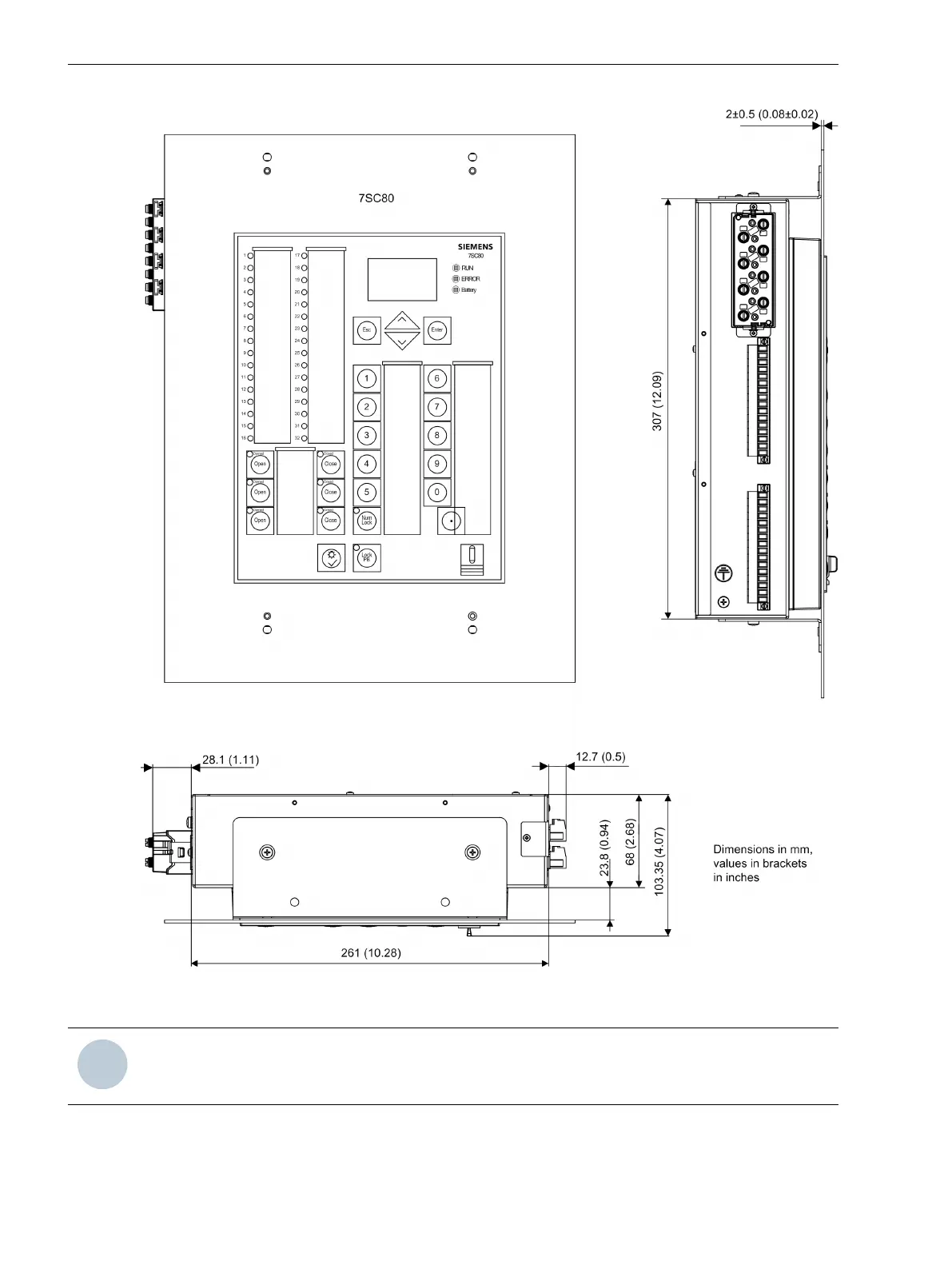

Figure 3-11
Variant with Attached HMI
NOTE
If the HMI is attached directly on the 7SC80, remove the hexagon bolts at the D-SUB socket of the HMI.
Mounting and Commissioning
3.1 Mounting and Connections
464 SIPROTEC Compact, 7SC80, Manual
E50417-G1140-C486-A8, Edition 07.2017
