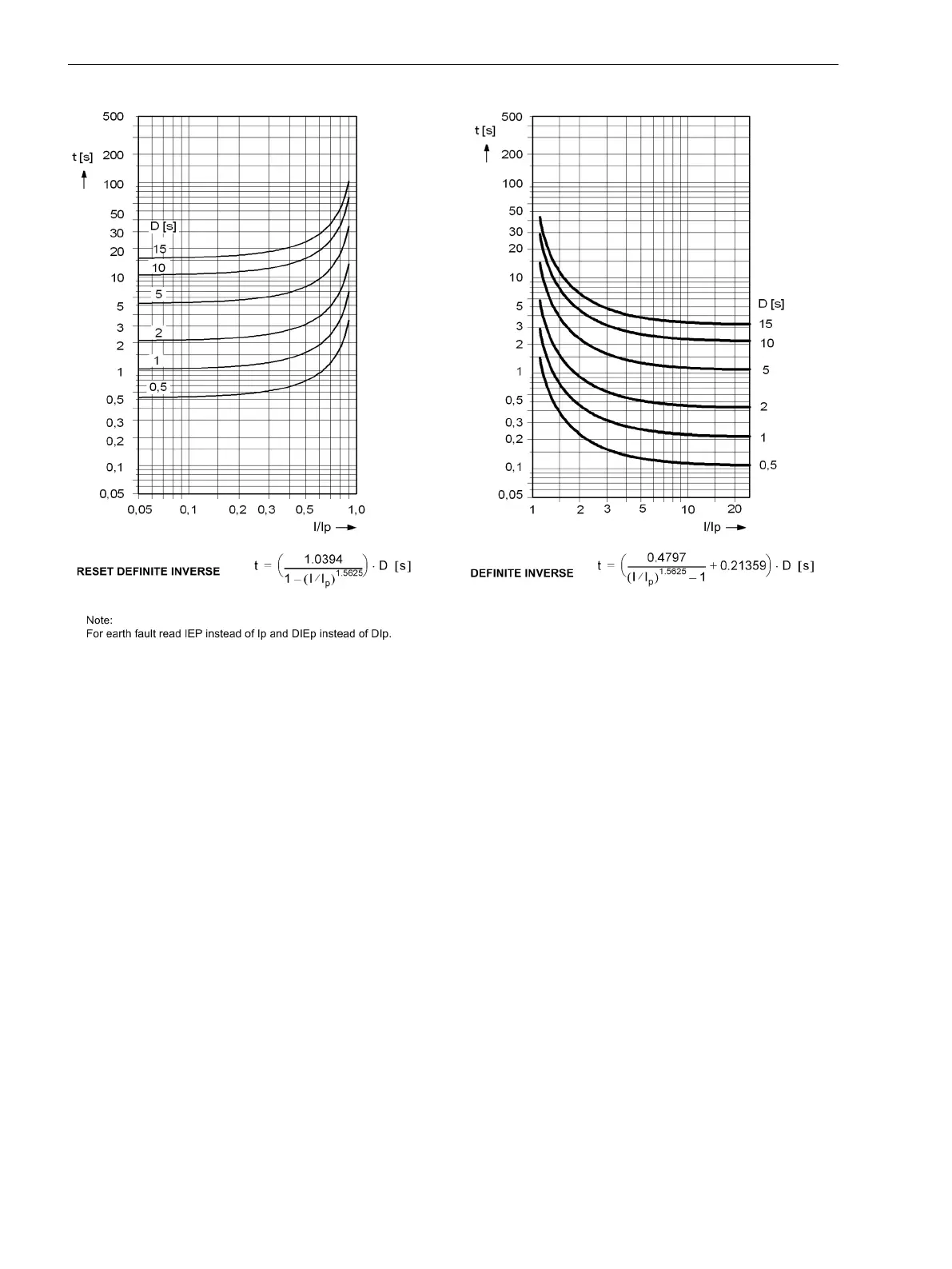

Figure 4-6
Dropout time and trip time curve of the inverse time overcurrent protection, acc. to ANSI/IEEE
Technical Data
4.3 Inverse-Time Overcurrent Protection
522 SIPROTEC Compact, 7SC80, Manual
