[ausloese-iec-schieflast-inv-stark-extr-lang-18012013, 1, en_US]

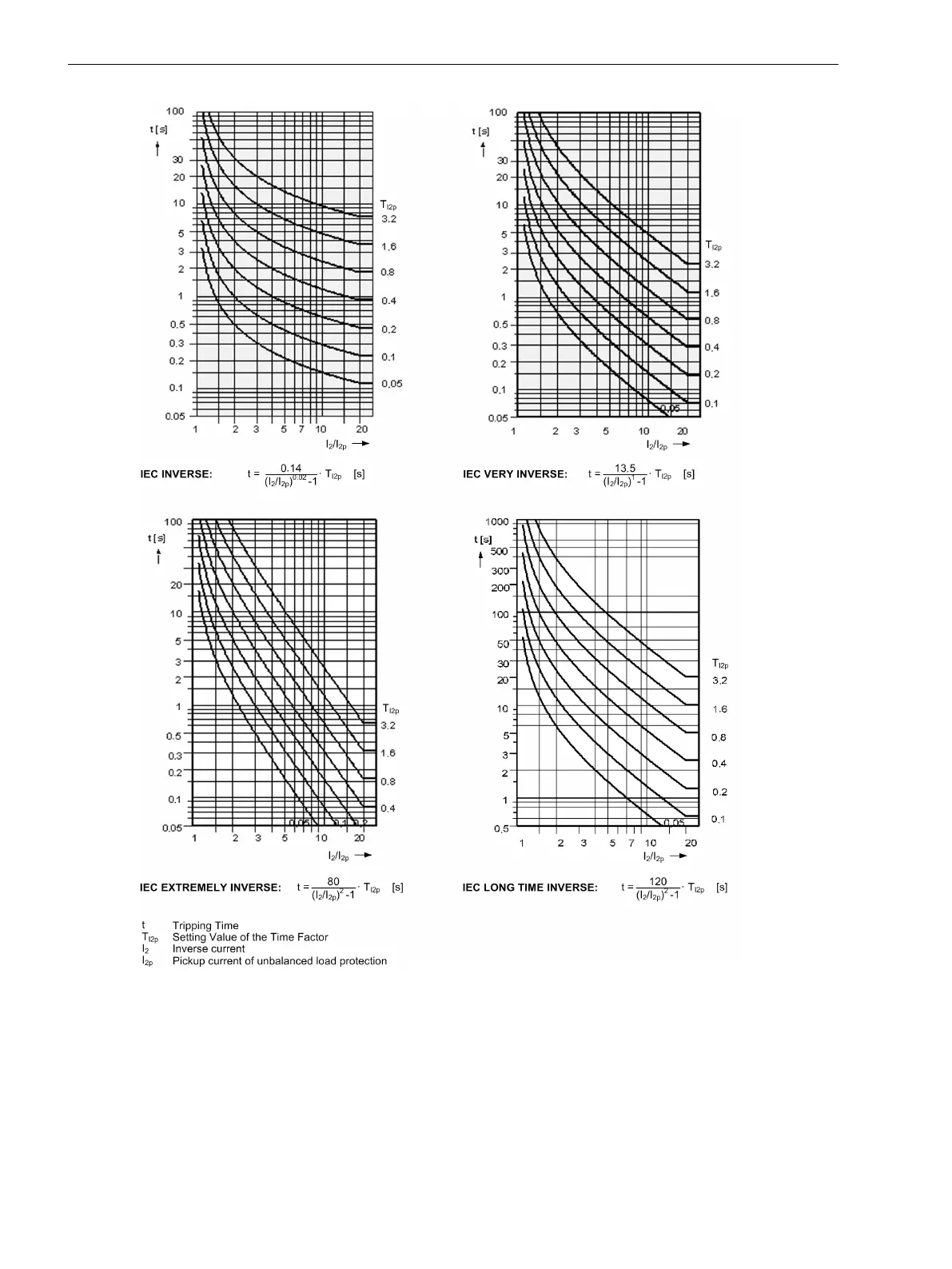

Figure 4-11
Tripping Characteristics of the Inverse Time Element of the Unbalanced Load Protection
according to IEC
Technical Data
4.12 Negative Sequence Protection 46-TOC (Inverse Time Characteristic)
540 SIPROTEC Compact, 7SC80, Manual
E50417-G1140-C486-A8, Edition 07.2017
