[grundb-6zei-ohne-u-ohne-erw-mw, 1, en_US]

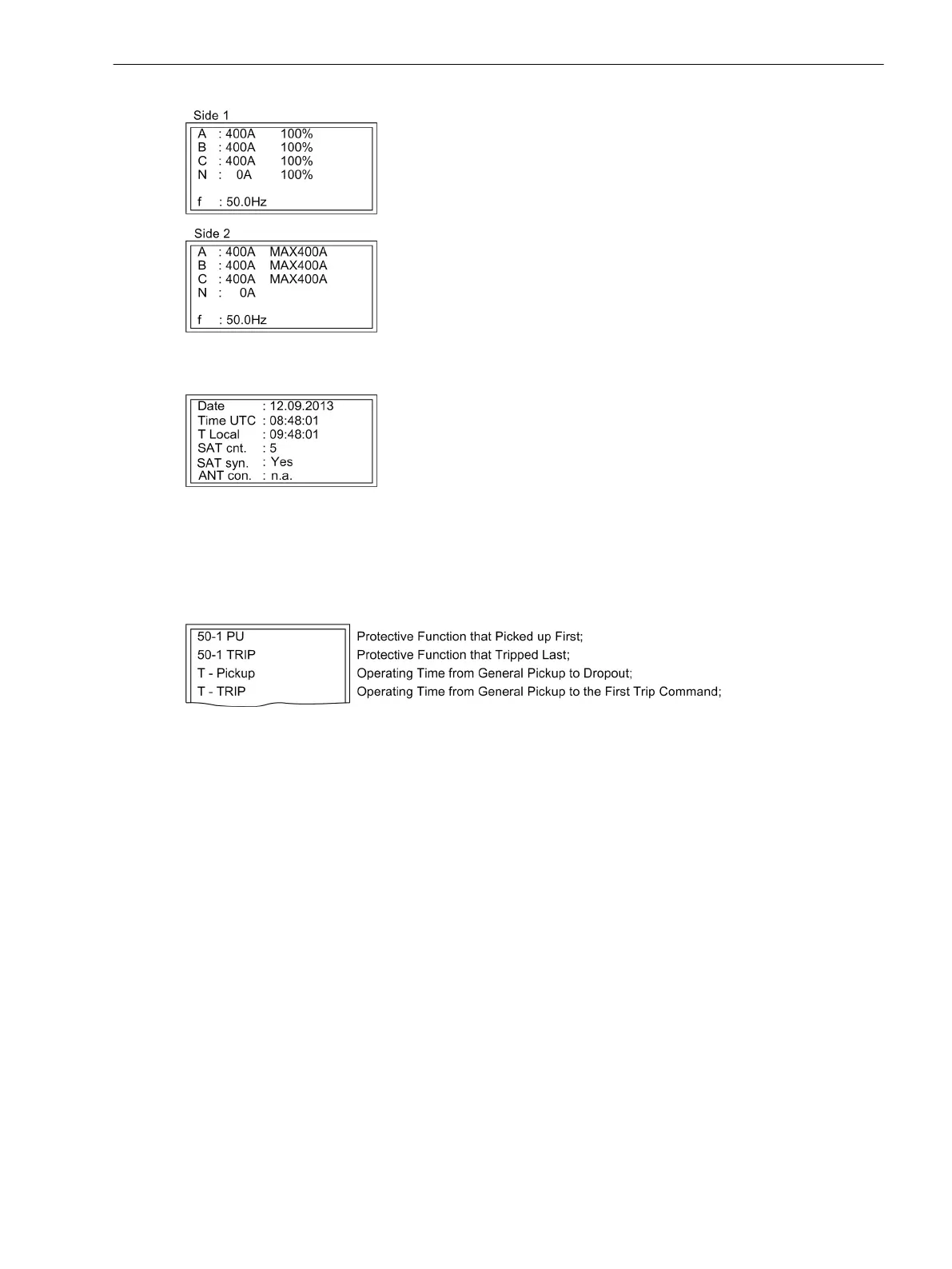

Figure E-2 Default display of 7SC80 for models without V
[gps-time, 1, en_US]
Figure E-3 Default display page 3 or 7
Spontaneous Fault Display
After a fault has occurred, the most important fault data are automatically displayed after general device
pickup in the order shown in the picture below.
[anzeige-spontanmeldungen-im-display-des-geraetes-260602-kn, 1, en_US]
Figure E-4 Representation of spontaneous messages on the device display
Default Settings and Protocol-dependent Functions
E.5 Default Display
SIPROTEC Compact, 7SC80, Manual 615
E50417-G1140-C486-A8, Edition 07.2017
