9.4.2 NC utilization
Precondition
The System Res. softkey has been pressed in the Service Displays
working window.
The following working window is then displayed:

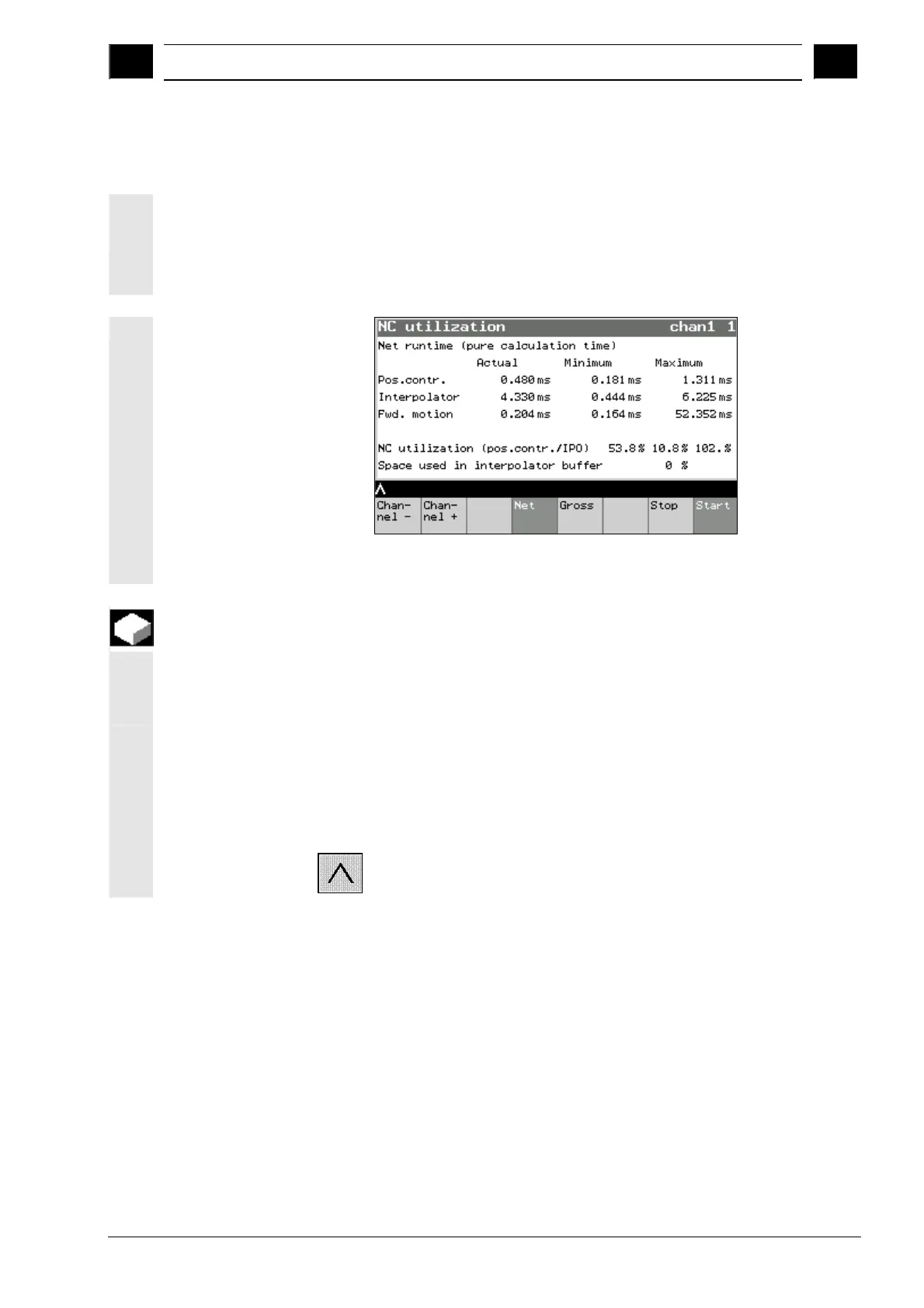

Net NC Utilization working window
Function
In this window the net runtime (pure computation time) is displayed
for the NC.
Further buttons
Channel -/+ Displays information about the previous/next channel
Stop Number refresh is stopped, numerical values stop.
Start Number refresh is restarted (inverted on selection).
Recall → Service Displays working window
