03.04 Messages, Service Displays, PLC Data – Operating Area Diagnosis
9.4 Service dis
la
s
9
9.4.5 NCU version data
Precondition
• The Version softkey has been pressed in the Service Displays
working window.
• The Vers.NCU softkey has been pressed.
The following working window is then displayed:

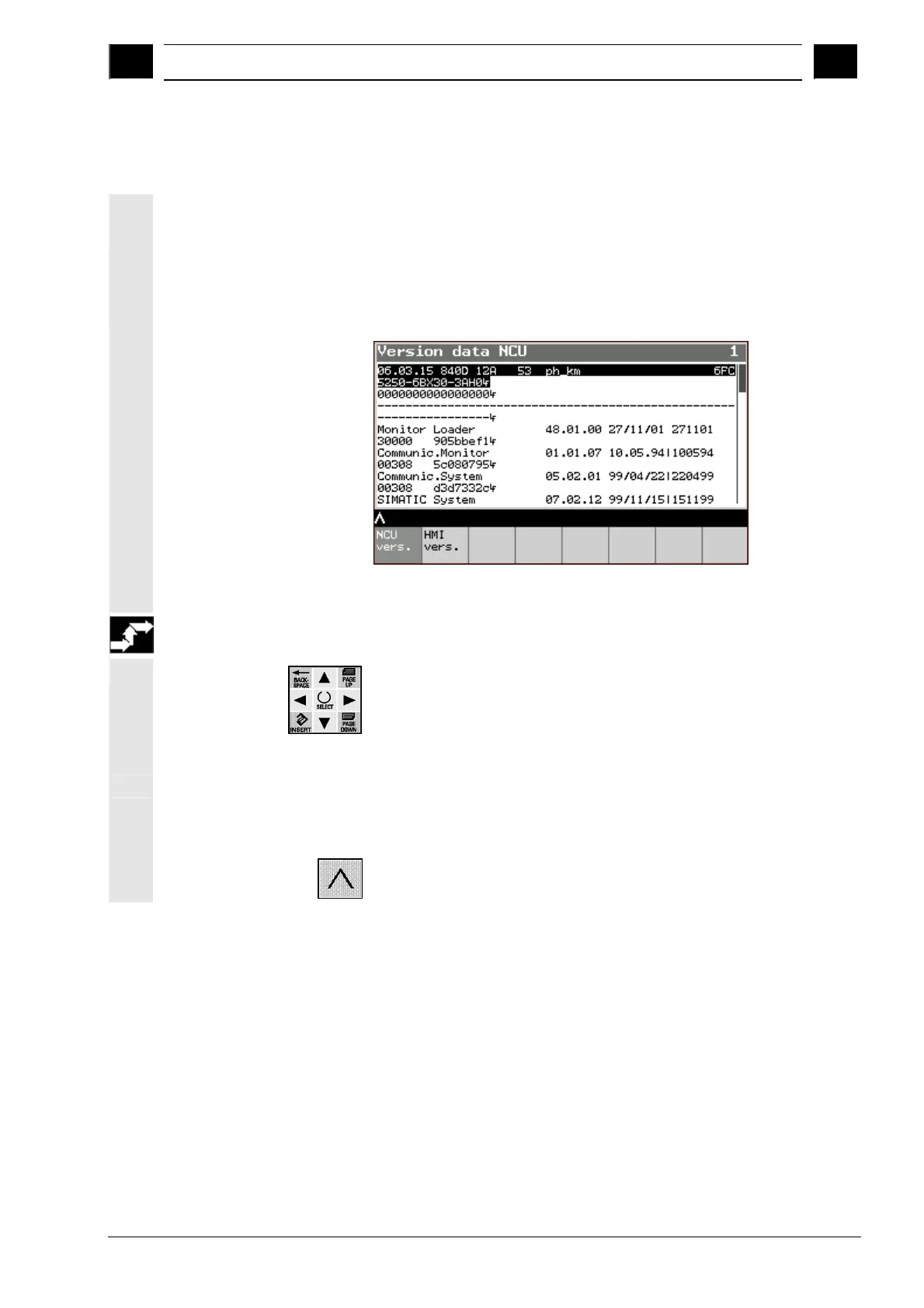

NCU version data working window
Operating sequence
• Use the cursor keys to select the desired line.
Further buttons
Vers. HMI HMI version data working window
Recall Returns to the calling working window
Siemens AG, 2004. All rights reserved.
SINUMERIK 840D/840Di/810D Operator's Guide Handheld Terminal 6 (BAH) - 03.04 Edition 9-109
