10
03.04 Machine Data, NC Start-Up, System Parameters – Operating Area Start-Up
10.6 Settin
the s
stem
arameters
10
10.6 Setting the system parameters
Function
System-specific settings can be displayed and, in some cases,
changed here.
• LCD contrast settings
• Backlighting
• Language change
• Password processing
Precondition
• The System softkey in the Startup Overview working window has
been pressed.

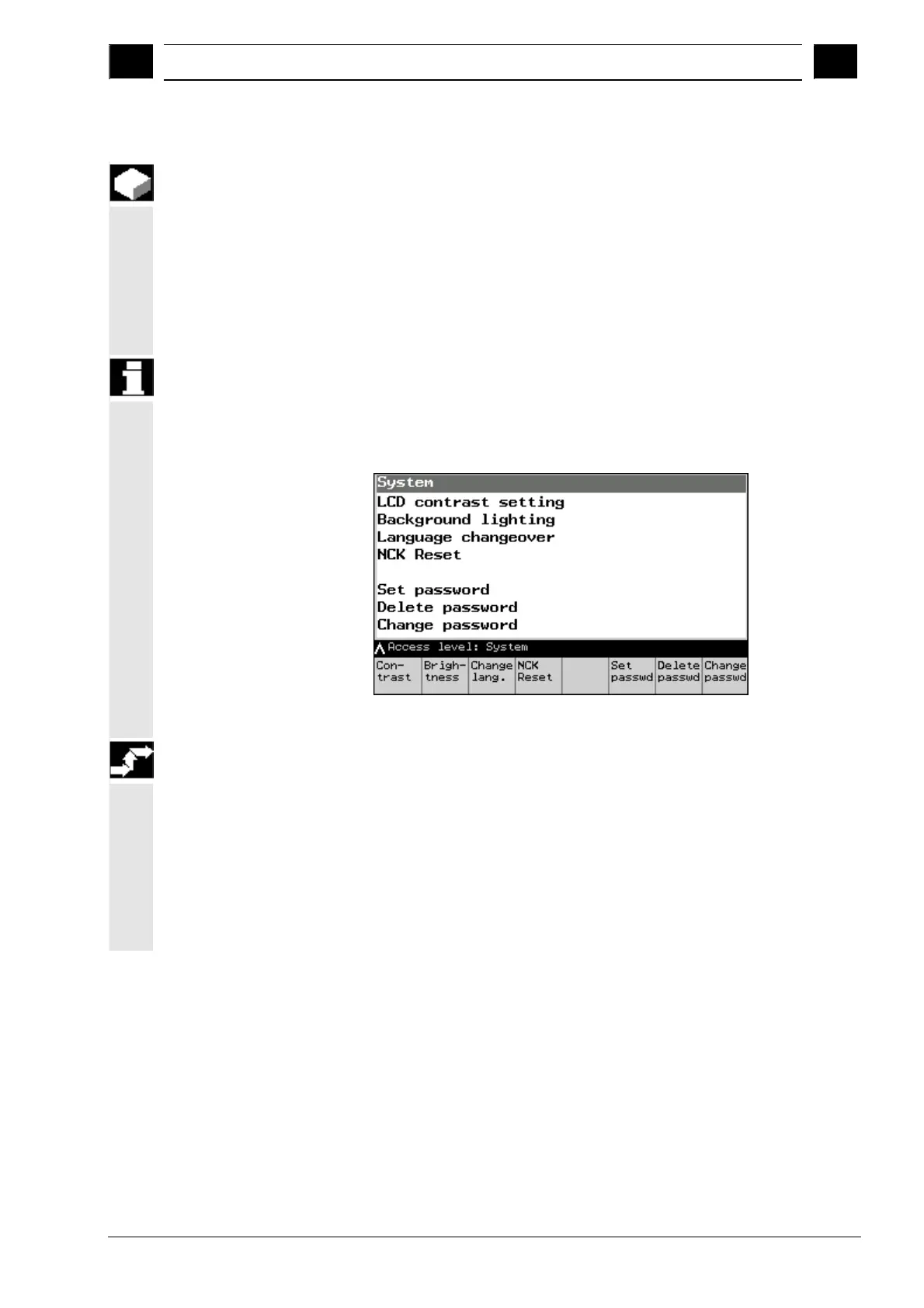

The following working window is then displayed:
System working window
Operating sequence
Call up the desired function with the corresponding softkey.
Contrast Changes the contrast settings for the screen
of the HT 6
Brightness Changes the backlighting of the HT6
Change lang. Toggles between the two online languages
Set password Sets a password
Del. password Deletes a password
Change password Changes a password
Siemens AG, 2004. All rights reserved.
SINUMERIK 840D/840Di/810D Operator's Guide Handheld Terminal 6 (BAH) - 03.04 Edition 10-129
