8
Data Transmission – Operating Area Services 03.04
8.2 Read in data
8

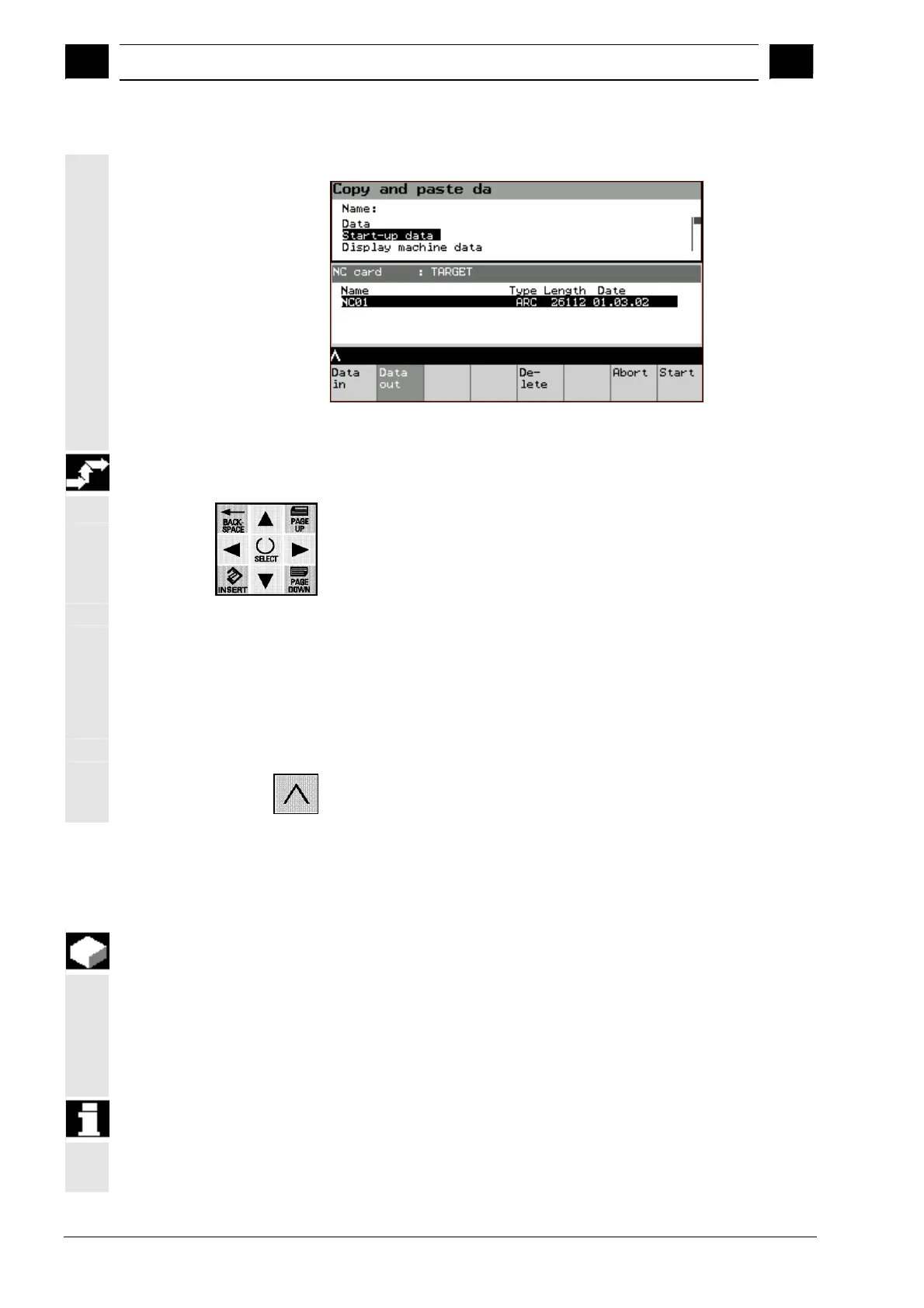

The following working window is then displayed:
Select NC Card Data working window
Operating sequence
• Use the cursor to select the desired source.
• Use the Start softkey to call the startup window for reading in
from the NC card:
The working window opens, e.g. Commissioning Data.
• Click on the OK softkey to start the transfer, the commissioning
data are read in.
Further buttons
Recall "Cancel read-in": Cancels the transfer and returns to
the starting window.
8.2.7 RS-232-C settings
Function
Standard values for the parameterization of the interface are read
from the display machine data.
You can adapt the standard values to the current transfer in the
following working windows.
The changes are applied to the machine data.
Precondition
• The RS-232-C Param. softkey has been pressed in the Read in
Data working window or in the Output Data working window.
Siemens AG, 2004. All rights reserved.
8-98 SINUMERIK 840D/840Di/810D Operator's Guide Handheld Terminal 6 (BAH) - 03.04 Edition
