03.04 Parameters operating area
3.4 Settin
g
data
3
3.4 Setting data
Function
The setting data can also be displayed and modified in a similar
manner to the R parameters. There are:
• General setting data
• Channel-specific setting data
• Axis-specific setting data
One of these types can be selected after pressing the Setting Data
softkey in the Parameters Operating Area working window.
Operating sequence
Use one of the softkeys to choose the desired type of setting data:
General SD General Setting Data working window
Channel SD Channel-specific Setting Data working window
Axis SD Axis-specific Setting Data working window
Further buttons
Recall Return to the Parameters Operating Area working
window
3.4.1 General setting data
Prerequisites
• The softkey General SD has been pressed in the Setting Data
working window.
The working window General Setting Data ($SN_) is opened:

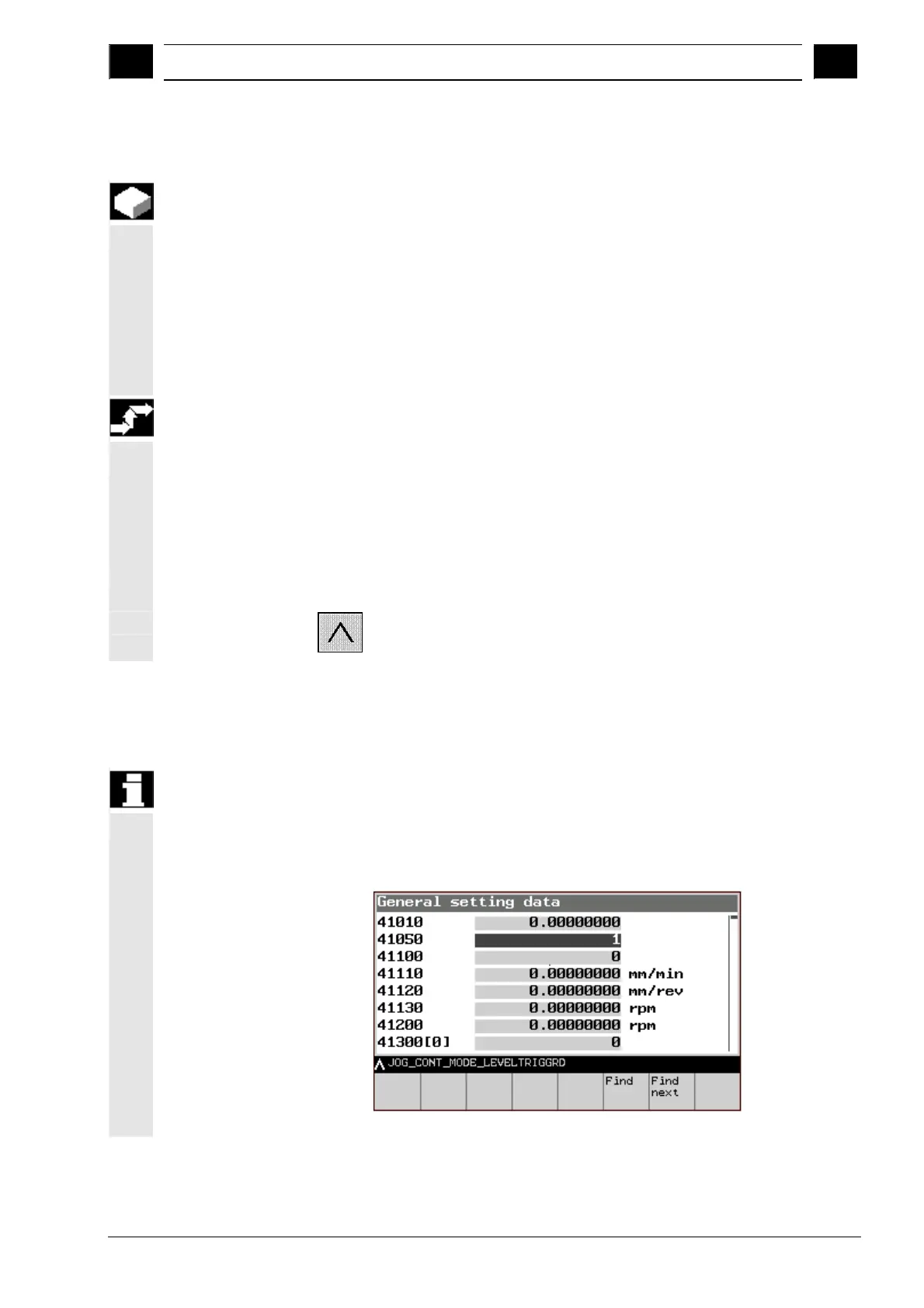

General Setting Data working window
