3.5 Settable zero offset
3
3.5.3 Rotation/Scale/Mirroring (ZO)
Function
Rotation, scale and mirroring can be entered or modified for each of
the three coordinate axes.
Precondition
• The softkey Rot./Scale has been pressed in the ZO – Offset
working window.
The following working window is then displayed:

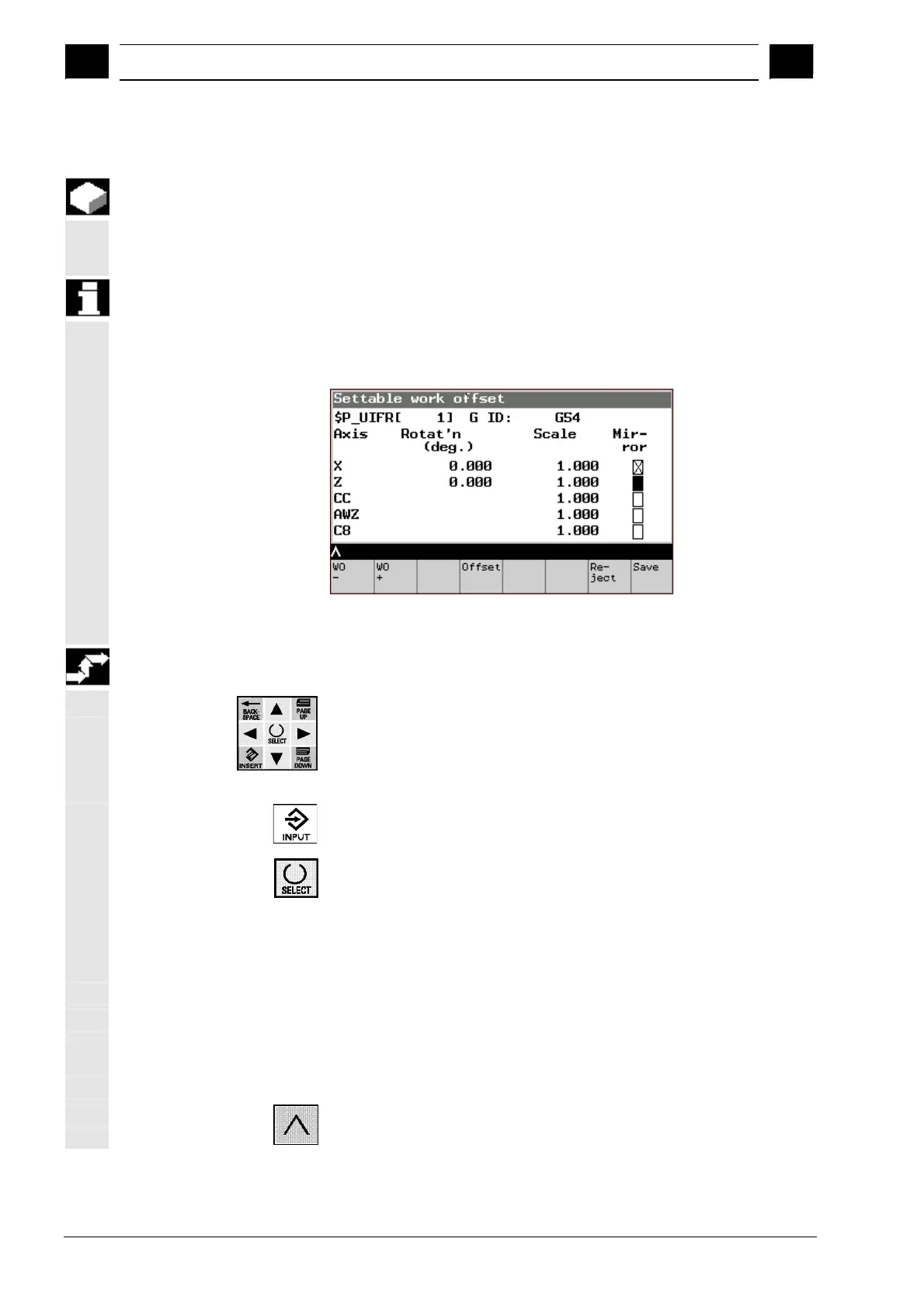

Working window: Settable ZO – Rotation/Scale/Mirroring
Operating sequence
• Select the input field with the cursor.
• Change the angle of rotation or the scale numerically.
• Press Input to jump to the next input field.
• Switch the mirroring on or off using the Select key.
• Click on the Save softkey to accept the entries.
Further buttons
ZO -/+ Previous/next ZO
Offset Use this softkey to access the Offset working
window.
Refer to Chapter: Offset (ZO)
Cancel Discards the entry.
Recall Returns to the Settable ZO Overview operating
window
