Siemens HT6

7
Teach-In 03.04
7.3 Insertin
g
a block
7
Further buttons
Destination point Goes to new complimentary working window
without accepting the settings
Teach-Para. Teach-in Parameters working window
Recall Goes to the starting window without accepting
the settings
7.3.2 Inserting a block - A-Spline (option)
Function
The spline interpolation function can be used to link series of points
along smooth curves.
Precondition
The softkey A-SPLINE has been pressed in the working window
Teach-in – Insert Block.
Keys
same as for the working window Insert Block
7.3.3 Specifying parameters
Function
At the start of an editor session all of the axes are selected. A
selection can be made as required:
After pressing the Teach Para. softkey in the Insert Block or Change
Block working window the following working window will appear:

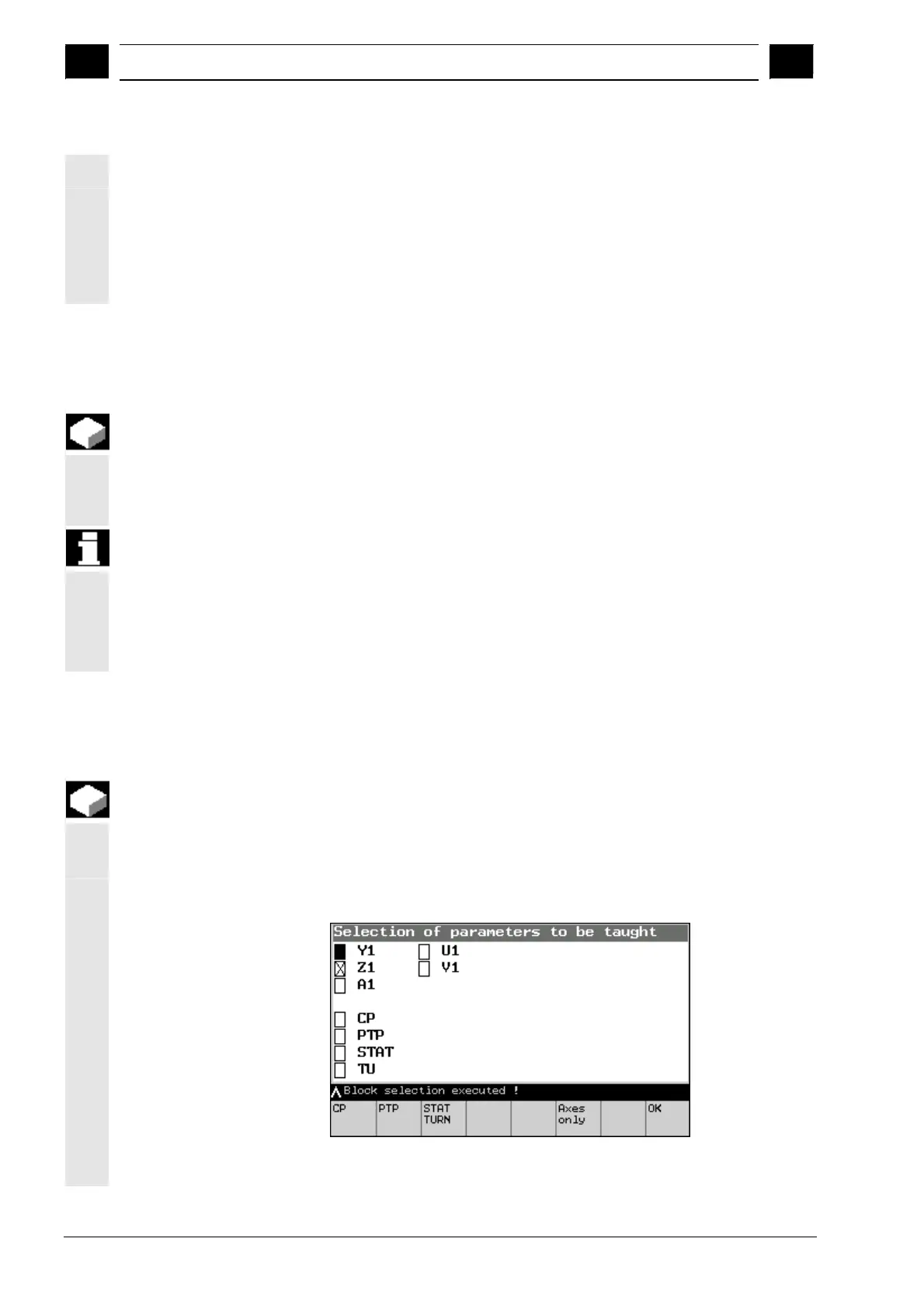

Specifying Parameters working window
