3
Parameters operating area 03.04
3.2 Tool offset
3
Further buttons
Delete Tool Deletes the currently selected tool
New Tool Creates a new tool
Create New Tool working window
3.2.2 Correcting tool data
Function
Tool data can be displayed and modified.
Prerequisites
• The desired tool has been selected via the cursor in the Tool
Offset Overview working window or by direct input of the tool
number and
• the Input button has been pressed to jump to the desired tool.
The following working window is displayed:

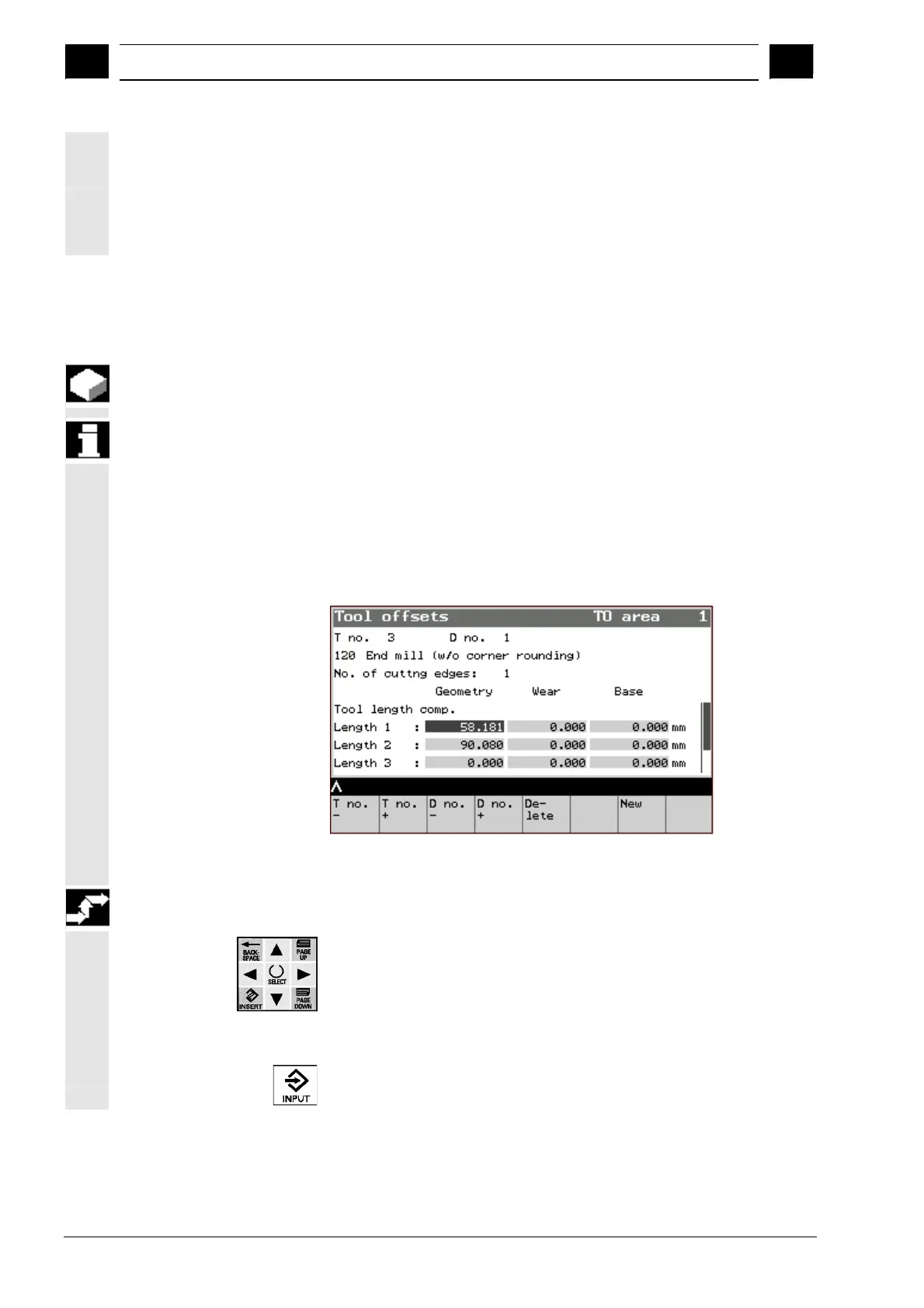

Tool Offset Parameters working window
Operating sequence
• Select the parameters with the cursor.
• Use the numerical input to modify the parameters (permitted
characters: digits, decimal point, minus sign).
• Press Input to accept the value and jump to the next input field.
Siemens AG, 2004. All rights reserved.
3-32 SINUMERIK 840D/840Di/810D Operator's Guide Handheld Terminal 6 (BAH) - 03.04 Edition
