Parameters operating area 03.04
3.3 R
arameters
3
Further buttons
Abort (softkey) Cancel input or
Recall Return to the starting window without
creating a cutting edge or new tool
3.3 R parameters
Function
R parameters can be displayed and modified.
Prerequisites
• The R Parameters softkey has been pressed in the Parameters
Operating Area working window.
The following working window is then displayed:

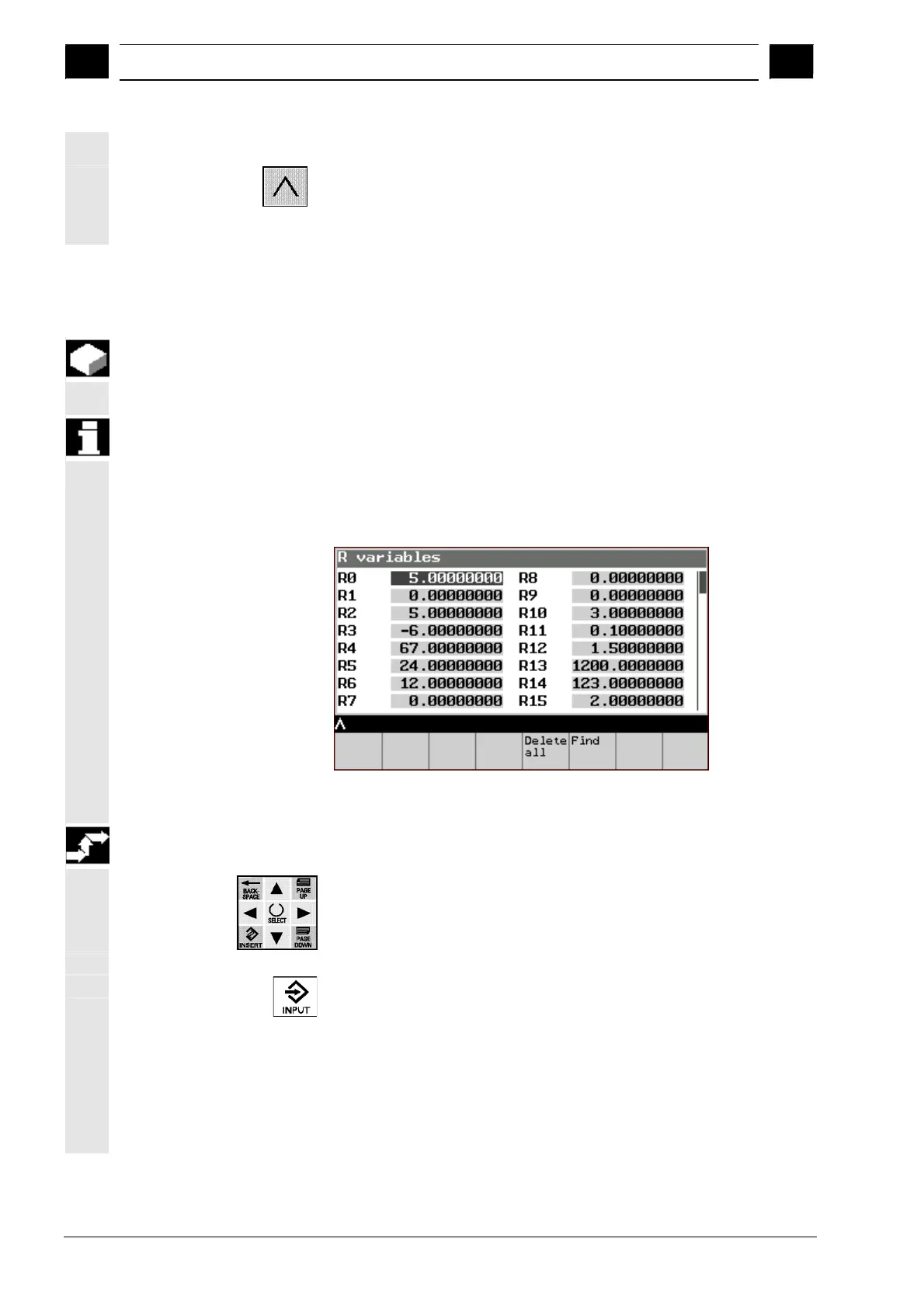

R parameters working window
Operating sequence
• Select the R parameters with the cursor.
• Use the numerical input to modify the values.
• Press Input to accept the value (or exit the field to do this).
Further buttons
Delete all Sets all R parameters to 0.000 (after a safety prompt)
Search R Parameter Search working window: Search for a
desired R parameter by inputting its number
