03.04 Parameters operating area
3.2 Tool offset
3
Further buttons
T No. -/+ Offset data for the next lowest/highest
tool
D No. -/+ Offset data for the next lowest/highest
cutting edge
Delete Selected tool/cutting edge is deleted after a
safety prompt
New Offset data are created for a new tool/cutting edge
3.2.3 Create new tool/new cutting edge
Prerequisites
• The softkey New has been pressed in the Tool Offset
Parameters working window.

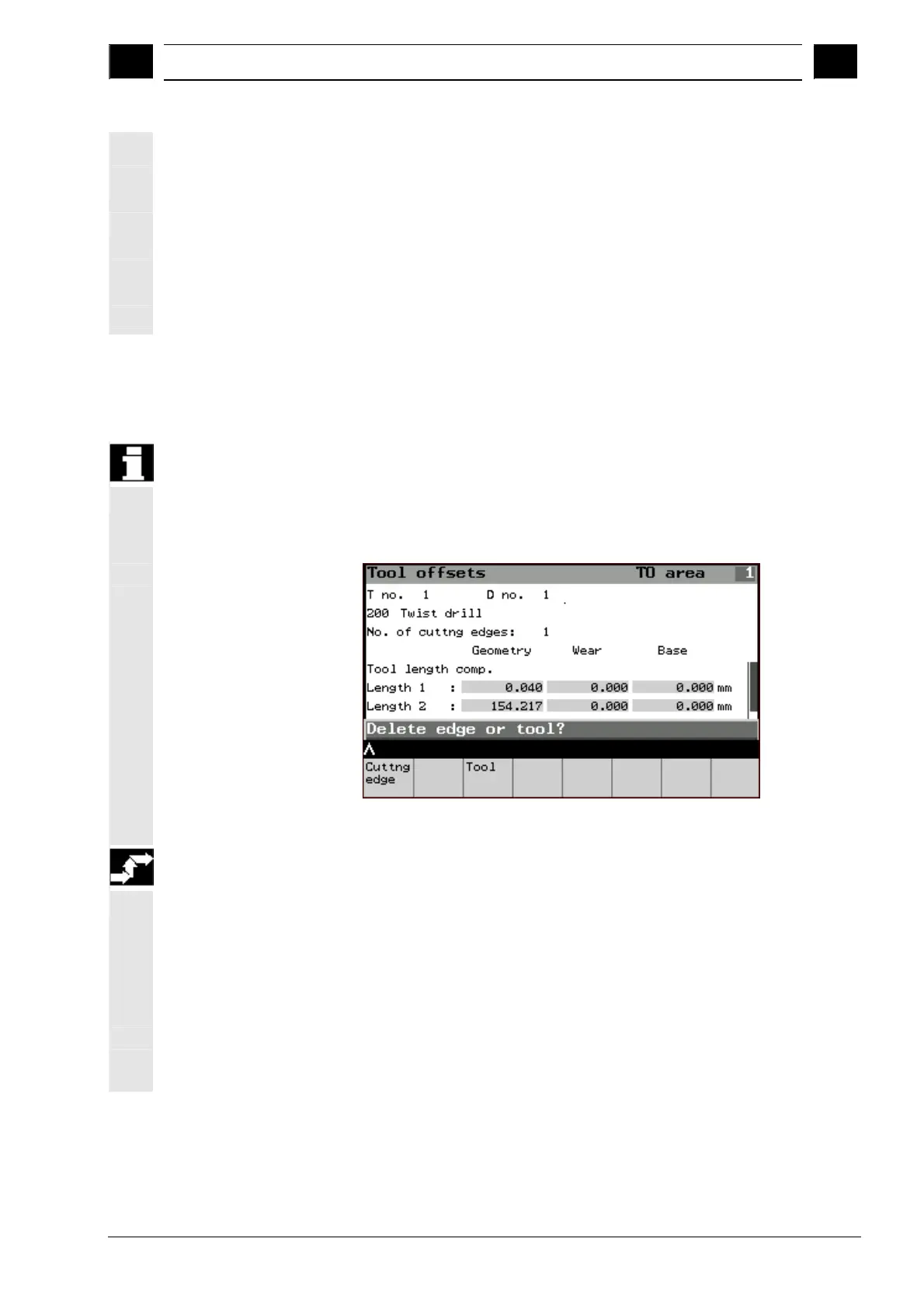

The following working window is then displayed:
Tool Offsets – New working window
Operating sequence
• Cutting edge softkey In the "Create New Cutting Edge"
working window enter the D no.
• Tool softkey In the "Create New Tool" working
window enter the T no. and (if
appropriate) the tool type
• Click on the OK softkey each time to confirm and return to the
starting window.
