9
Messages, Service Displays, PLC Data ā Operating Area Diagnosis 03.04
9.5 PLC
9
Further buttons
Input aid Assistance for entering values
Delete Deletes all display lines after a safety prompt
Yes/No
Abort Cancels changing the PLC values and changes from
"Values" to "Operand" mode.
Input aid
Instead of entering the operands and formats directly in the PLC
Status working window, you can also generate them by pressing the
Input aid softkey and then the softkeys which appear subsequently.
Depending on the previous history, the following softkey bars appear:
"Operand" is selected:

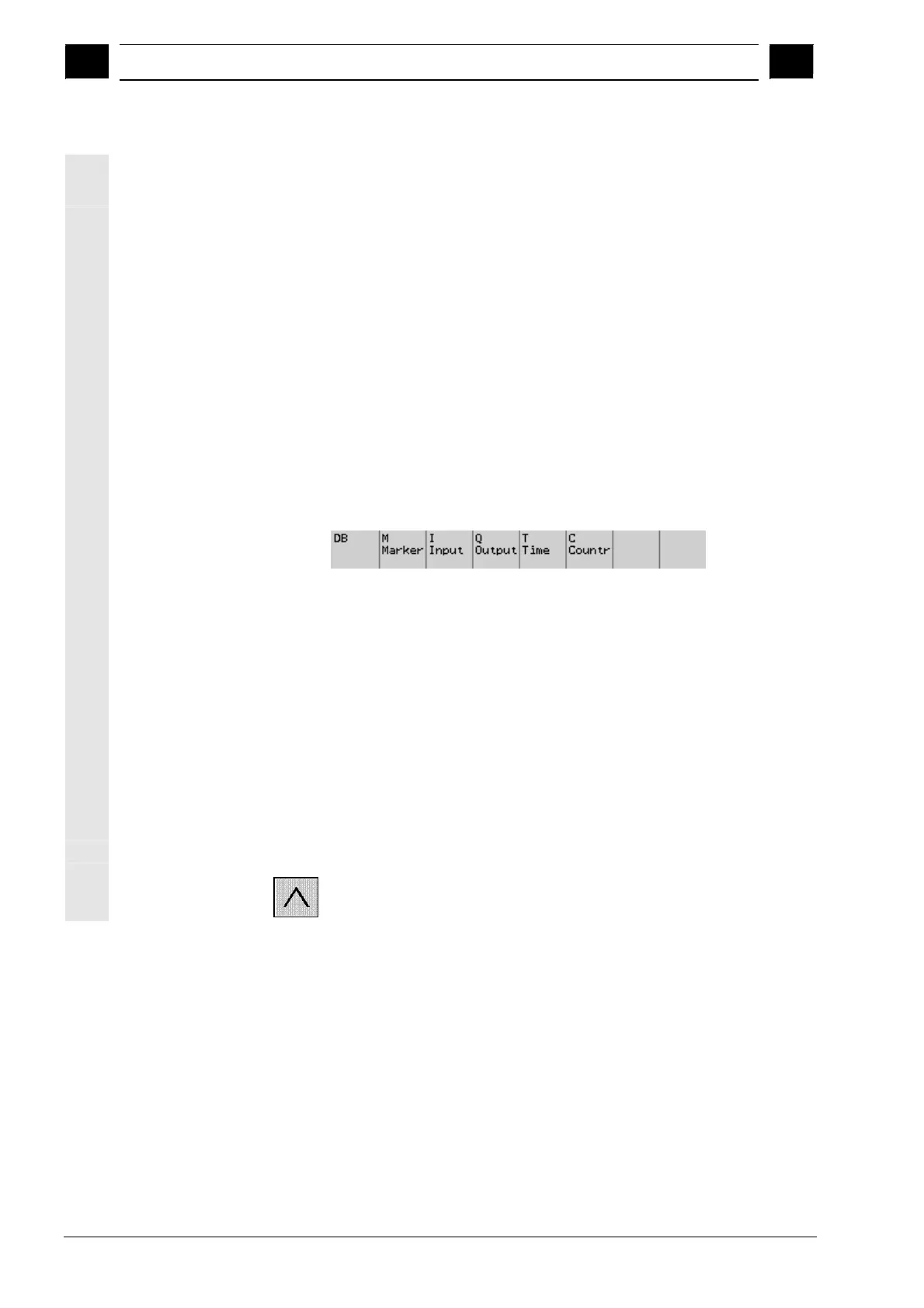

Input aid softkeys
After softkey selection DB:
Select .DBX, .DBB, .DBW and .DBD.
After softkey selection M, I or Q:
Select B byte, W word, D double-word.
If the cursor is in the "Format" input field then the following values
appear in the softkey bar:
B binary, D decimal., H hexadecimal, F float
Further buttons
Recall Exits the input aid and accepts the inputs.
ļ Siemens AG, 2004. All rights reserved.
9-112 SINUMERIK 840D/840Di/810D Operator's Guide Handheld Terminal 6 (BAH) - 03.04 Edition
