4
03.04 Program operating area
4.1 Directories
4

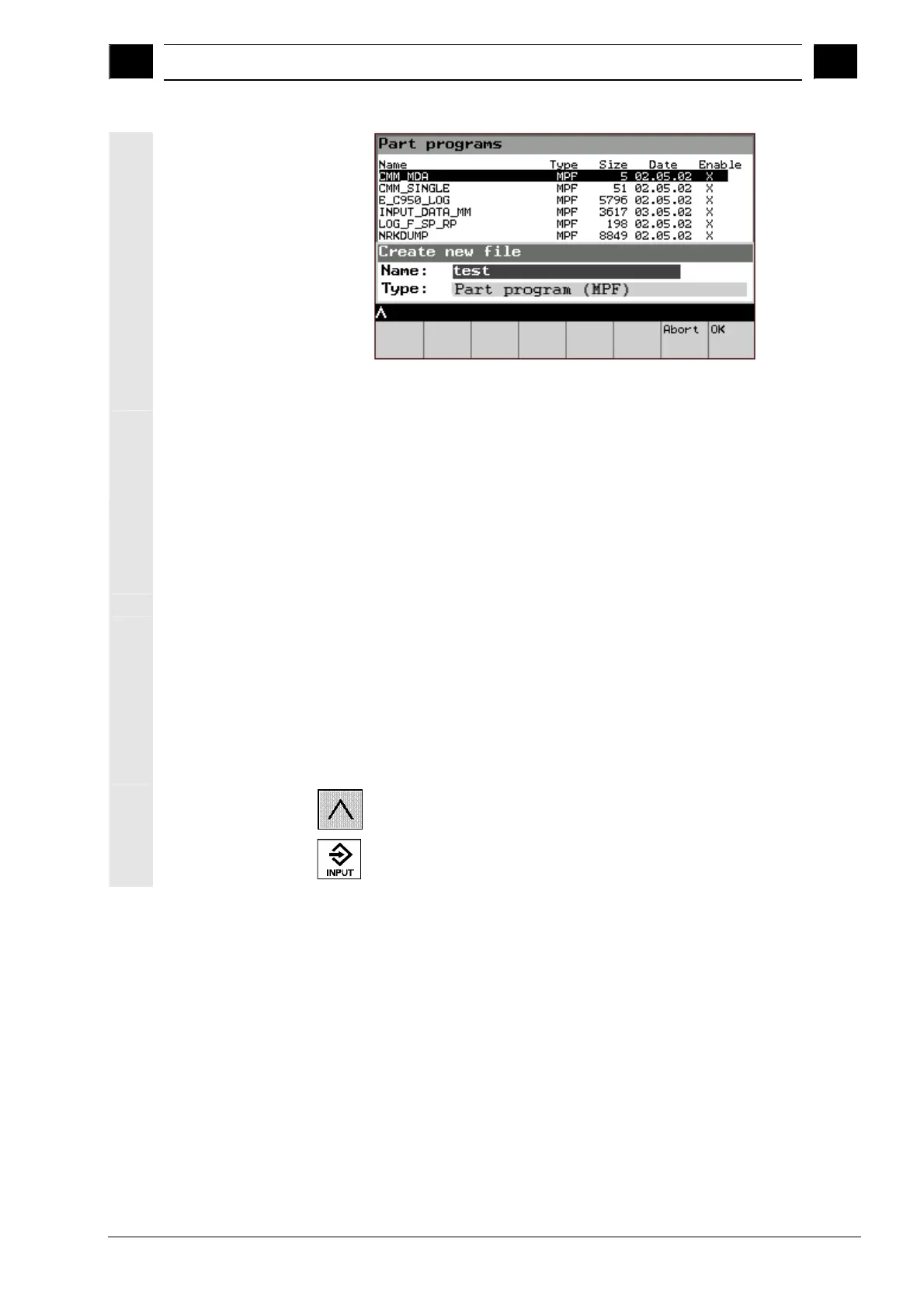

Parts Programs, New File working window
Enter the file name (up to a maximum of 24 characters).
The type is set by default.
Copy Copies the selected parts program or subroutine onto
the clipboard
Paste Inserts a parts program or subroutine which was
previously copied to the clipboard.
Delete Deletes the selected parts program or subroutine.
Renaming Allows the selected parts program or subroutine to be
renamed.
Enable The selected parts program or subroutine
receives/loses the enable identifier. This is indicated
with an "X": The program can be worked through.
Selection The parts program is selected on the current channel.
Further buttons
Recall Standard Directories Overview working window
Input Directory of the Selected Parts Program working
window
Siemens AG, 2004. All rights reserved.
SINUMERIK 840D/840Di/810D Operator's Guide Handheld Terminal 6 (BAH) - 03.04 Edition 4-51
