4
Program operating area 03.04
4.2 Editor in normal mode
4
Prerequisites
• The Input button has been pressed in a directory.
If for example the starting point was a program directory (MPF or
SPF), the following working window could appear:

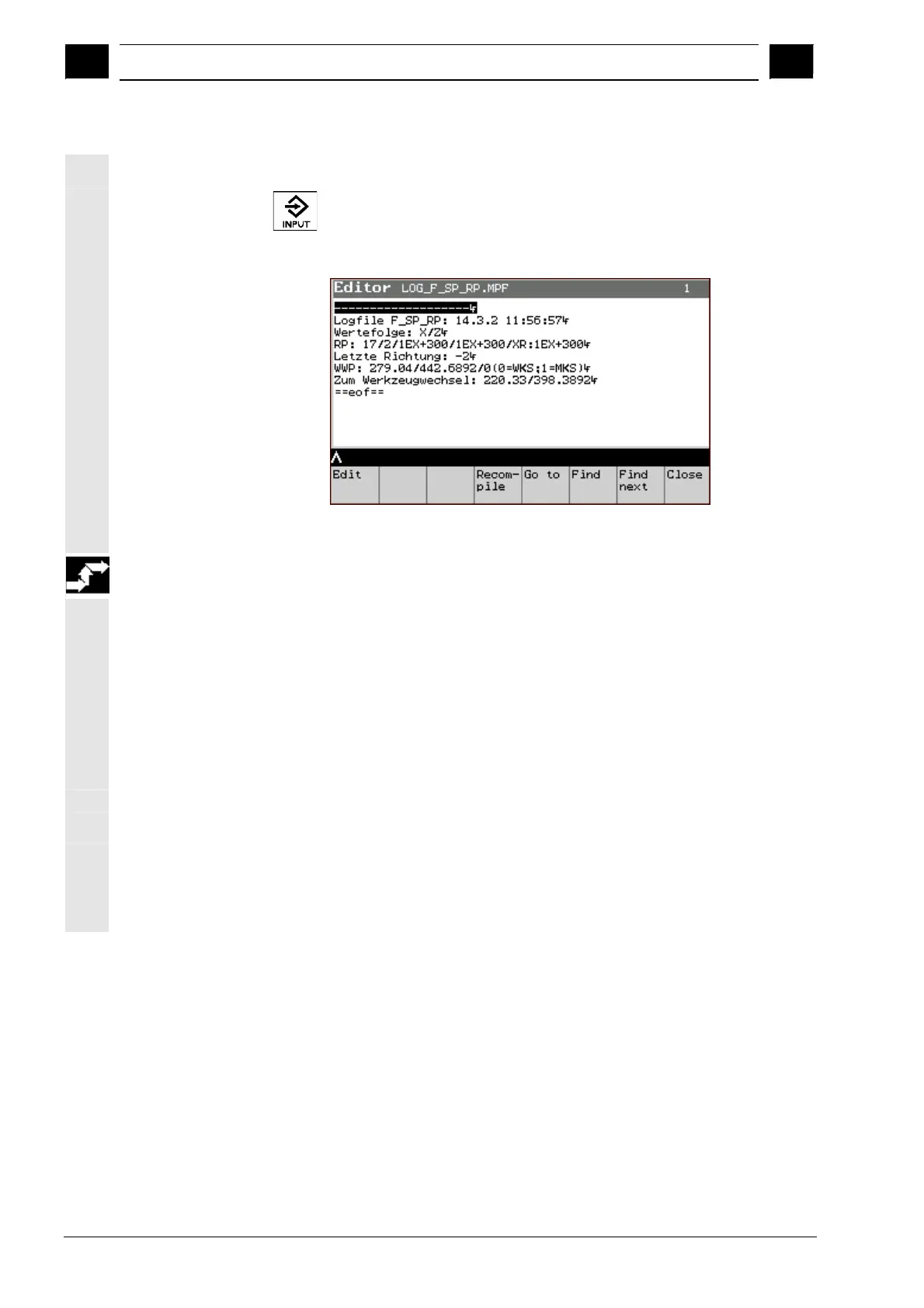

Working window Editor in Normal Mode
Operating sequence
Activate the editor functions with the softkeys as described below:
Edit Editor mode (Edit Program working window)
Recompile The changes are not saved. (This softkey only
appears if there is a corresponding entry in the
Comm.com file).
Go to Exact details of the row and column
Search Text Search working window:
Asks for a string and then searches for it in the file.
Continue Searches for the last string again
search
Close Exits the editor and returns to the previously selected
directory.
The content of the last row is saved. The content of
the other rows is saved as soon as you leave the row.
Siemens AG, 2004. All rights reserved.
4-54 SINUMERIK 840D/840Di/810D Operator's Guide Handheld Terminal 6 (BAH) - 03.04 Edition
