6.6 Functions of the 1PosSSI/Analog
ET 200S Positioning
Operating Instructions, 05/2007, A5E00124871-04
263
Completing/Interrupting a Run
If you parameterized and activate MODE 0
9
5DSLGIHHG
&UHHSIHHG
6WDUWSRVLWLRQ 02'(LV
DFWLYDWHG
'HVWLQDWLRQ
3DWK
SOXV

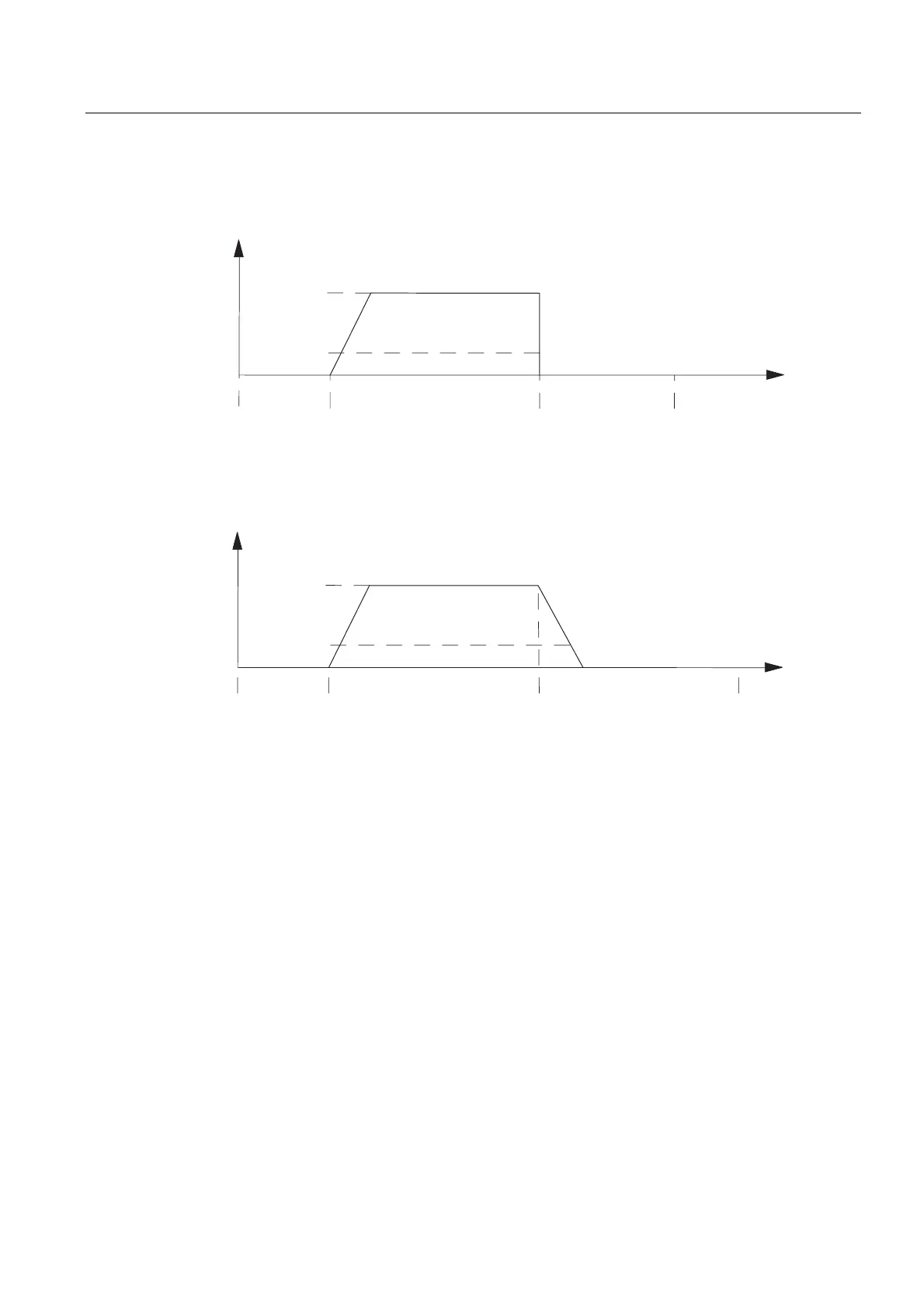

Figure 6-10 Interrupting the Run by Switching Off: Directly
If you parameterized "Ramp" at switch-off and activate MODE 0
T
dec
V
Rapid feed
Creep feed
Start position MODE 0
is activated
Destination
Path
(plus)
Figure 6-11 Interrupting the Run by Switching Off: Ramp
