3.4 Safety concept
ET 200S Positioning
Operating Instructions, 05/2007, A5E00124871-04
61
3.4 Safety concept
Safety Measures
The following measures are vital to the safety of the system. Install them with particular care,
and adapt them to meet the requirements of the system.
Check the measures are effective before the first run.
WARNING
To avoid injury and damage to property, make sure you adhere to the following:
• Install an emergency stop system in keeping with current technical standards
(for example, EN 60204, EN 418, etc.).
• Make sure that no one has access to areas of the system with moving parts.
• Install, for example, safety limit switches for the end positions of the axes that switch off
the power control system directly.
• Install devices and take steps to protect motors and power electronics.
Setting up a positioning control
0
(
(0(5*(1&<
6723
0DLQV
SRZHU
3RV,QF'LJLWDO
&38
PDVWHU
3URJUDPLQJDQG
SDUDPHWHU
DVVLJQPHQW
3DUDPHWHU
DVVLJQPHQW
VRIWZDUH
(QFRGHU
6DIHW\
OLPLWVZLWFK
0HFKDQLFDO
WUDQVPLVVLRQ
HOHPHQWV
6DIHW\
OLPLWVZLWFK
0RWRU
+DUGZDUHOLPLWVZLWFK
0RWLRQ
3RZHUXQLW
6DIHW\
GHYLFH

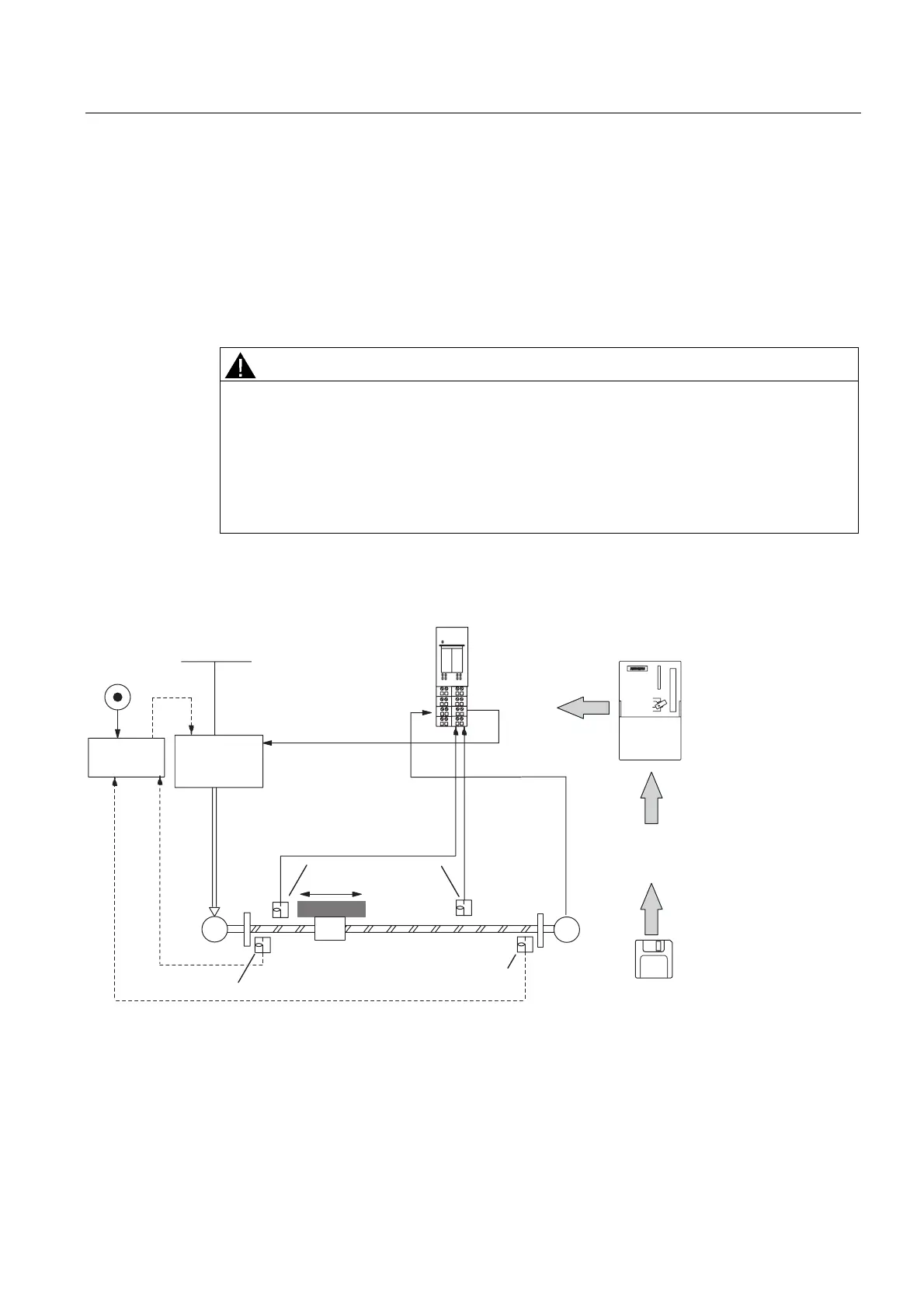

Figure 3-2 Design of a Positioning Control System (Example)
