1PosUniversal/Digital
7.3 Terminal Assignment Diagram
ET 200S Positioning
316 Operating Instructions, 05/2007, A5E00124871-04
Connection of Relays and Contactors to the Digital Outputs
Note
Direct connection of inductivities (such as relays and contactors) is possible without external
circuiting. If SIMATIC output circuits can be deactivated by additionally installed contacts (for
example relay contacts), you have to provide additional overvoltage protection devices at
inductivities (see the following example for overvoltage protection).
Overvoltage Protection Example

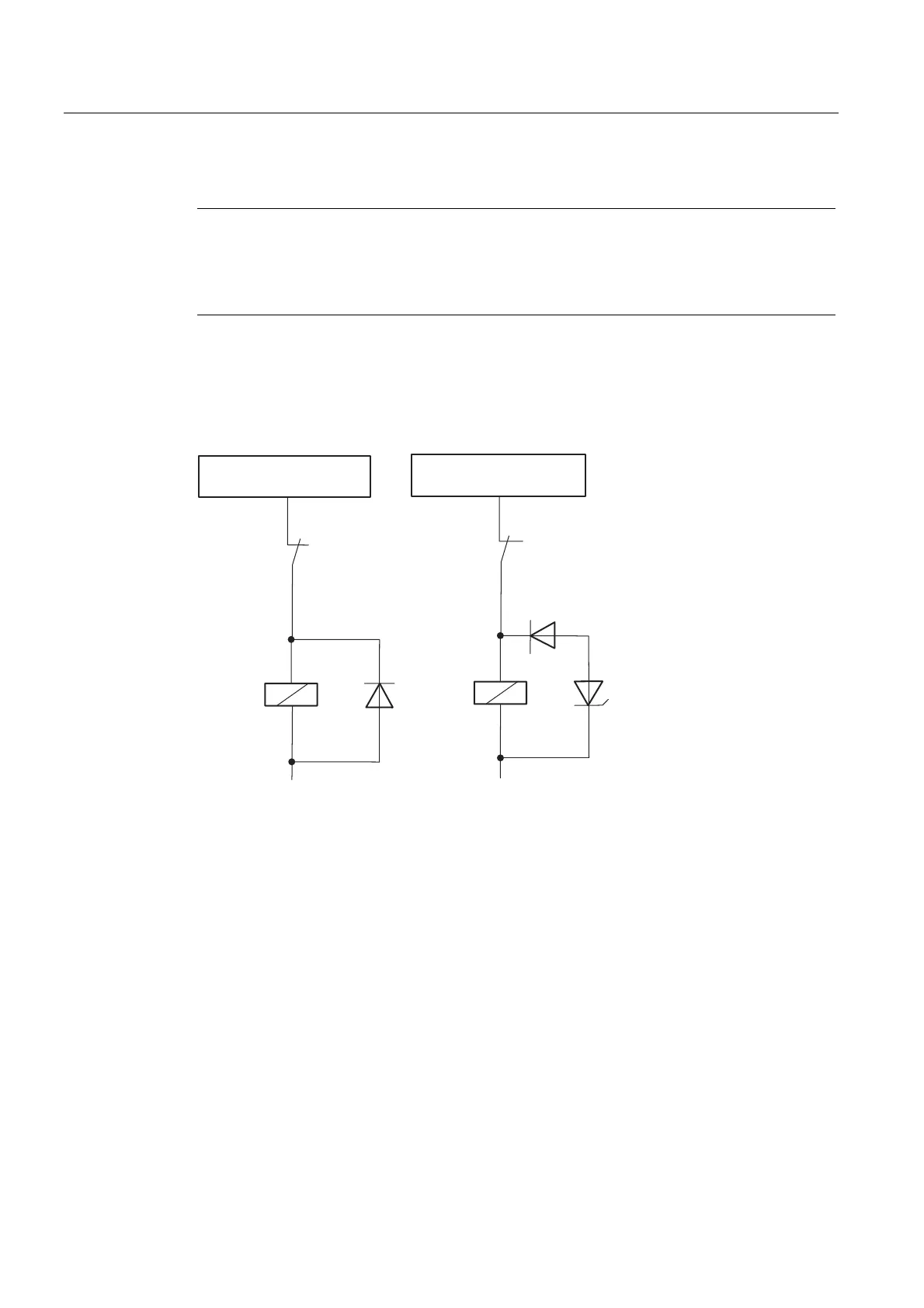

The following figure shows an output circuit that requires additional overvoltage protection
devices. Direct-current coils are wired with diodes or Zener diodes.
'LJLWDORXWSXWHJ287 'LJLWDORXWSXWHJ287
&RQWDFWLQRXWSXWFXUUHQWFLUFXLW
ZLWKGLRGH ZLWK=GLRGH
Figure 7-1 Relay Contact in the Output Circuit
