Siemens SINUMERIK 802D sl Instruction Manual

Creating a Drive Project
10.1 Creating a drive project OFFLINE
10-139
SINUMERIK 802D sl Instruction Manual (BA), 05/2005 Edition
6FC5 397-0CP10-1BA0

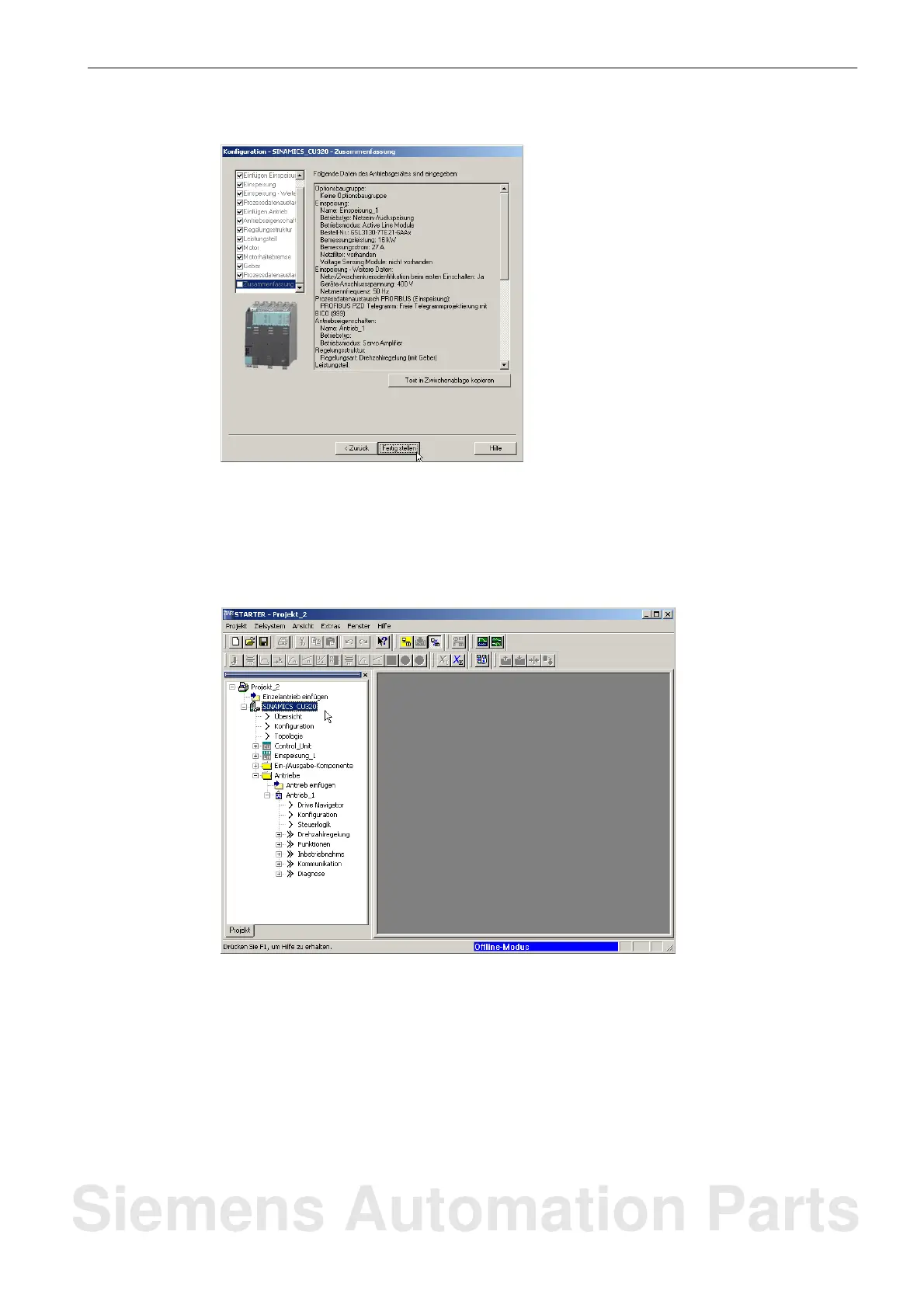

Fig. 10-26 Summary
22.Check the summary and confirm it by choosing Complete.
As you can see in Fig. 10-27, the configuration wizard has created the objects (including
Drive_1) for drive unit SINAMICS_In_802D in the project navigator.
Fig. 10-27 Project navigator with SINAMICS_In_802D
23.Save the project Machine Tool V1_2 using the Project > Save menu.
Once you have configured the drive unit with STARTER in OFFLINE mode, proceed with the
steps described in Chapter 10.2 “Starting the Drive Project (“Motor rotates)”. You will set the
parameters of the interface with the drive and rotate the motor.
