Starting Up the PLC
11.5 PLC applications Download/Upload/Copy/Compare
11-183
SINUMERIK 802D sl Instruction Manual (BA), 05/2005 Edition
6FC5 397-0CP10-1BA0
11.5 PLC applications Download/Upload/Copy/Compare
The user can save, copy or overwrite the PLC project or the PLC applications in the control
system.
This is possible using
S PLC 802 Programming Tool
S RCS802 (binary file)
S CF card
The PLC project comprises the PLC user program including all important information (sym-
bols, comments, ...). It is loaded by the Programming Tool via upload/download or via File >
Import/Export.
The PLC application incorporates the PLC project and PLC user alarm texts. The PLC ap-
plication can only be generated by the control system.

PLC
project

PLC
user
alarm texts

PLC
machine data
PT PLC 802
RCS802
CF card
Toolbox




PLC
application
Series machine start-up
Series machine
start-up
PLC
application


Download/
Upload/
Compare
802D
Permanent
memory

Export/Import

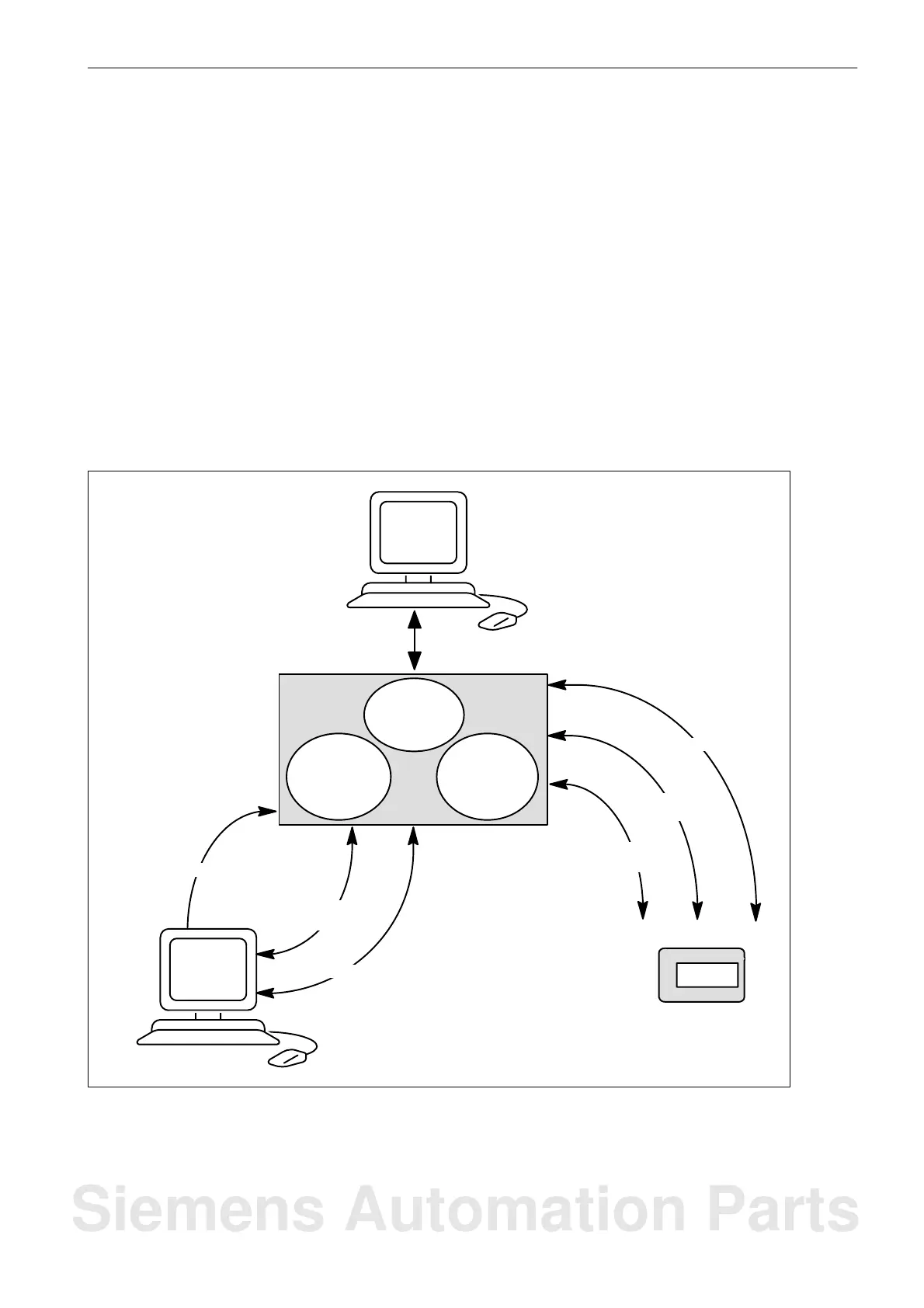

Fig. 11-1 PLC applications in the control system
