7.3 Overall design of the SINUMERIK 802D sl
Connecting
7-54
SINUMERIK 802D sl Instruction Manual (BA), 05/2005 Edition
6FC5 397-0CP10-1BA0
7.3 Overall design of the SINUMERIK 802D sl
The following section provides information on the overall design of the SINUMERIK 802D sl connected to a
grounded power supply.
DOCOMx
L1
L2
L3
N
PE
CNC operator panel
Grounding rail in the cubicle
M
P24
X40
PE
24 V DC
Cubicle
X1
I/O module PP72/48
M
P24
PE
Low voltage distribution
e.g. TNS system (3 x 400 V)
Machine control
panel (MCP)
NC full keyboard
Handwheel
(option)
P24
M
X111/222/333
1) 2)
M
DOCOMx
DOCOMx
DOCOMx
1)
For use of an external power supply for digital inputs, see Section 4.3 “Digital inputs”.
Ext. power supply
2)
The load power supply is configured by the user.

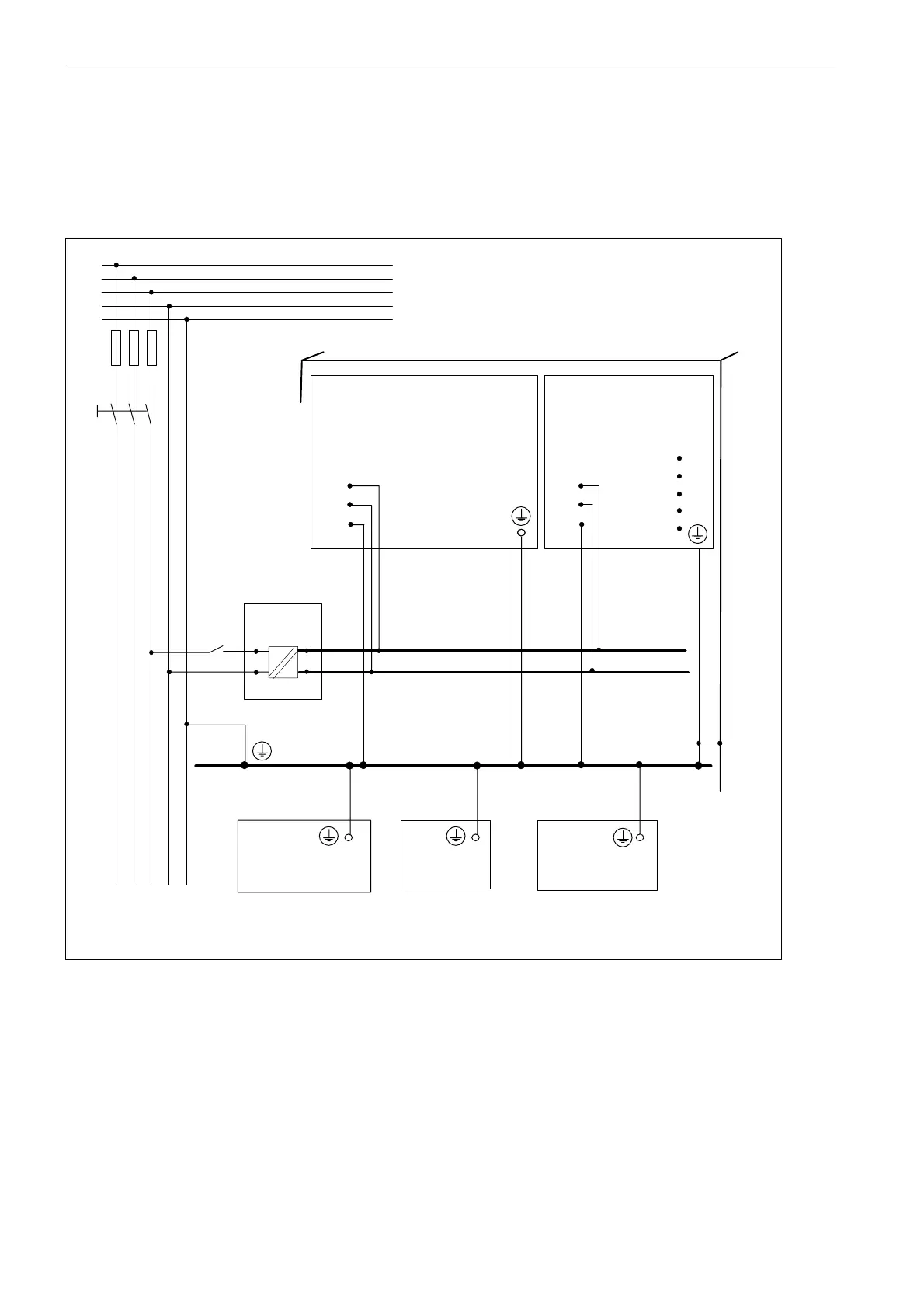

Fig. 7-1 Possibility of supplying the modules
