5.3 Dimension drawings and drilling patterns for the NC full keyboard
Dimension Drawings
5-44
SINUMERIK 802D sl Instruction Manual (BA), 05/2005 Edition
6FC5 397-0CP10-1BA0
5.3 Dimension drawings and drilling patterns for the NC full keyboard
Dimension drawing for the NC full keyboard (installed beneath the PCU)
Connection socket
0
172.2
86.1
0
2)
320
0
0
10
330
Grounding screw M5
290
20
20
24
161.2
7.7
15
7.2
165
158.8
13.4
330 321
9
15
172.2
142.2
Note:
1) Add the height of the connector
(15 mm) to this dimension
(24 + 15) = 39 mm
2) Pin for fixing the position (2∅4.7)
1)
2)

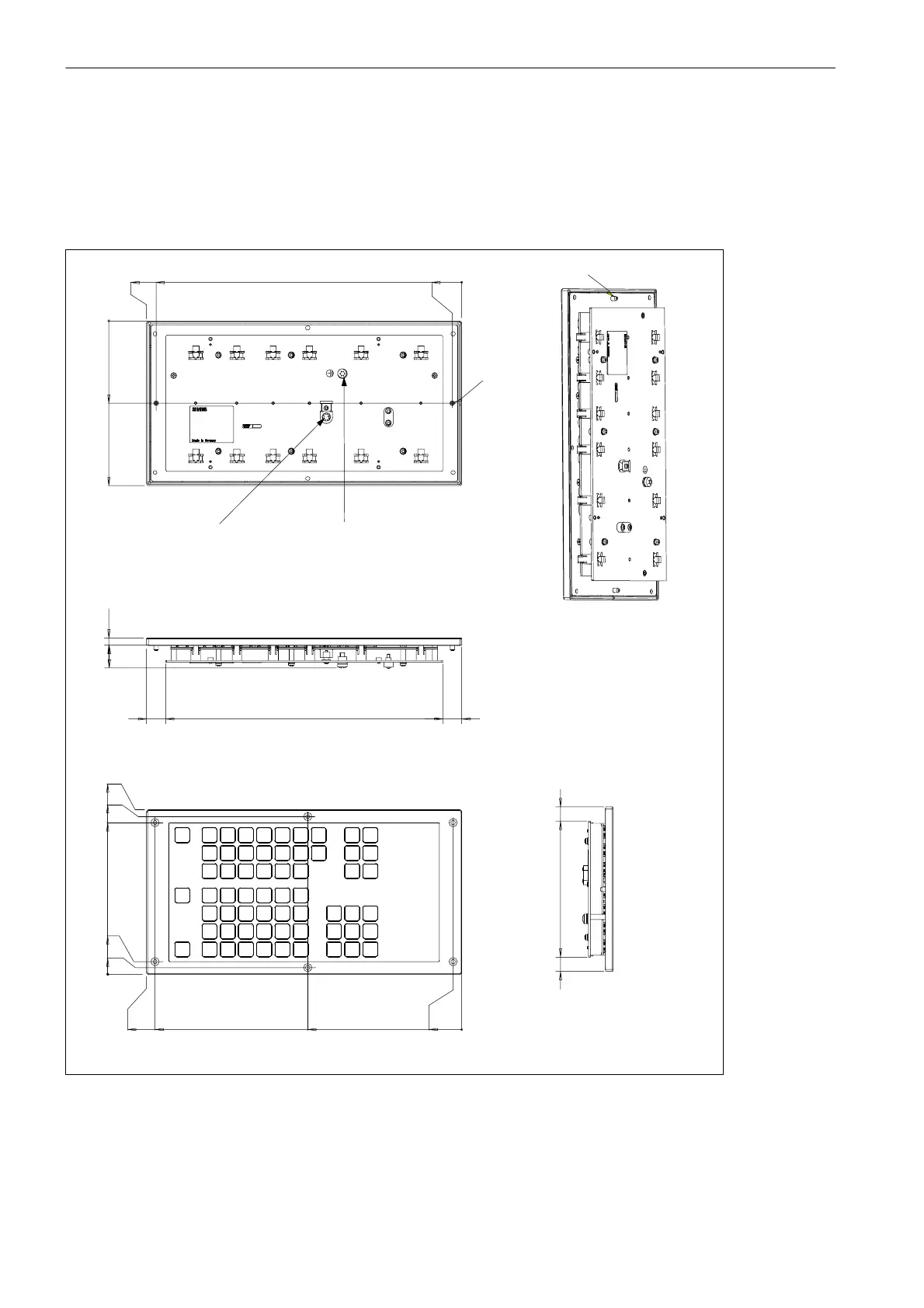

Fig. 5-5 Dimension drawing for the NC full keyboard (installed next to the PCU)
