Siemens SINUMERIK 802D sl Instruction Manual

Interfaces
4.1 CNC operator panel (PCU) interfaces
4-23
SINUMERIK 802D sl Instruction Manual (BA), 05/2005 Edition
6FC5 397-0CP10-1BA0
4.1.6 DRIVE CLiQ interface
The CNC operator panel (PCU) can communicate with the SINAMICS drive via the DRIVE
CLiQ interface.
Female connector pin assignment
Designation: X1, X2
Type: 8-pin RJ45 socket

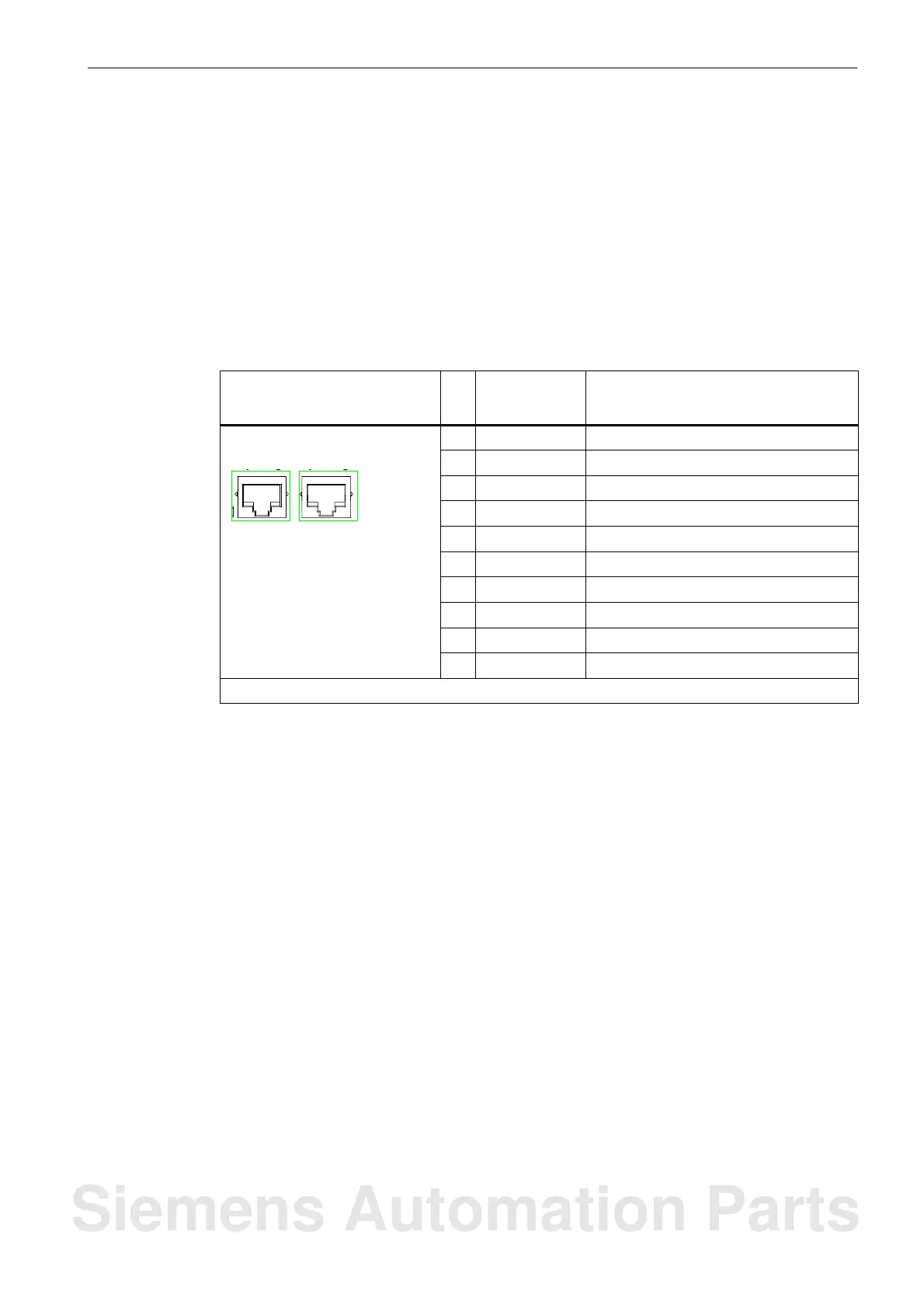

Table 4-4 Pin assignment of the female connectors X1 and X2
Schematic view of the female
connector, mounting position
and labeling
Pin Name Description
1 TXP Transmitted data +
8181
2 TXN Transmitted data –
8181
3 RXP Received data +
4 not assigned –
X1
X2
AABB
5 not assigned –
X1
X2
6 RXN Received data –
7 not assigned –
8 not assigned –
A not assigned –
B not assigned –
Blanking plate for DRIVE-CLiQ interface: Molex corp., order no. 85999-3255
