4.1 CNC operator panel (PCU) interfaces

4-21

SINUMERIK 802D sl Instruction Manual (BA), 05/2005 Edition

6FC5 397-0CP10-1BA0

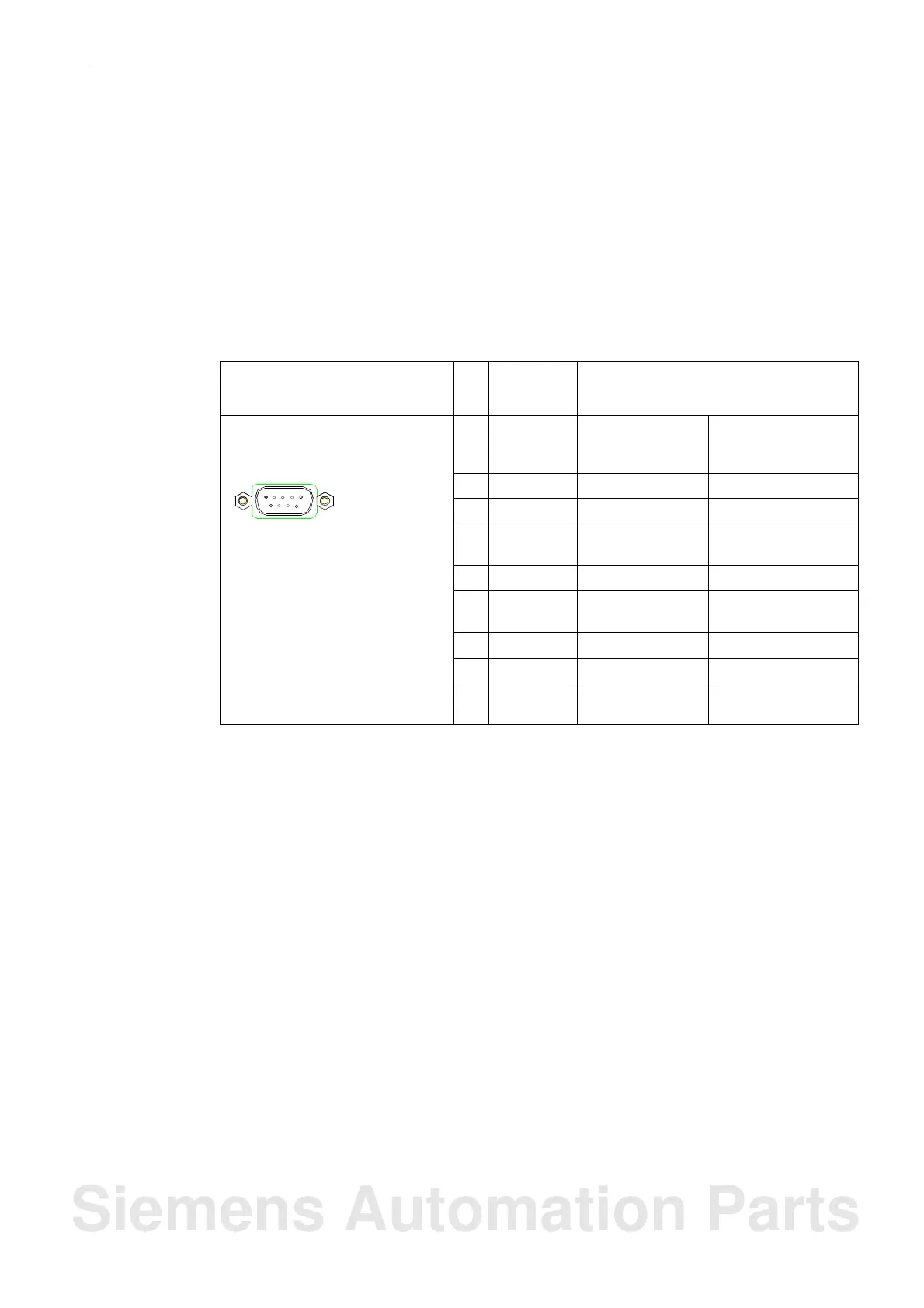

4.1.4 RS232 COM interface

A PC/programming device (PG) for data exchange with the CNC operator panel can be con-

nected to male connector X8.

Connector pin assignment

Designation: X8 (RS232)

Type: 9-pin D-Sub plug terminal strip

Table 4-2 Pin assignment of connector X8

Schematic view of the female

connector, mounting position

and labeling

Pin Name Description

RS232

1 DCD Received Line

Signal Detector

Carrier Detector

Received signal level

2 RXD Received Data Received data

3 TXD Transmitted Data Transmitted data

4 DTR Data Terminal

Ready

Terminal ready

5 M Ground Ground (GND)

6 DSR Data Set Ready Readiness for

operation

7 RTS Request To Send Transmission request

8 CTS Clear To Send Ready to send

9 not

assigned

– –
