Siemens SINUMERIK 802D sl Instruction Manual

Commissioning
9.11 Diagnosis via STARTER
9-115
SINUMERIK 802D sl Instruction Manual (BA), 05/2005 Edition
6FC5 397-0CP10-1BA0
Parameterization
The “function generator” parameter screen is selected via the following icon in the toolbar of
the STARTER commissioning tool:
Fig. 9-15 STARTER icon for “trace function/ramp-function generator”
9.11.2 Trace function
Description
The trace function can be used to acquire measuring values over a specified period,
depending on the trigger conditions.
Parameterizing and operating the trace function
The trace function is parameterized and operated via the STARTER parameterization and
commissioning tool.

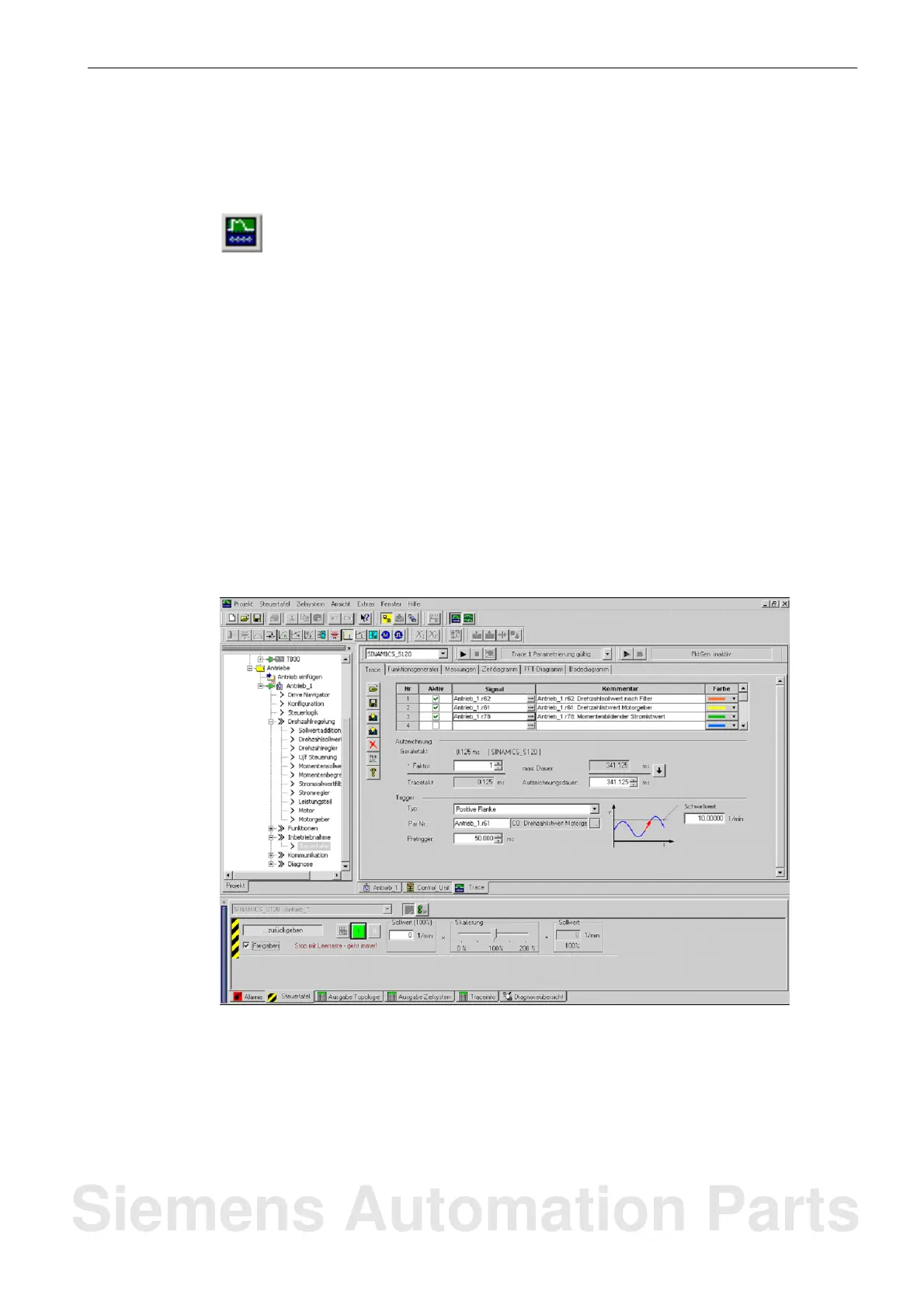

Fig. 9-16 The “Trace function” start screen
