5.1 Dimension drawing and drilling pattern for the CNC operator panel (PCU)

Dimension Drawings

5-40

SINUMERIK 802D sl Instruction Manual (BA), 05/2005 Edition

6FC5 397-0CP10-1BA0

5.1 Dimension drawing and drilling pattern for the CNC operator panel

(PCU)

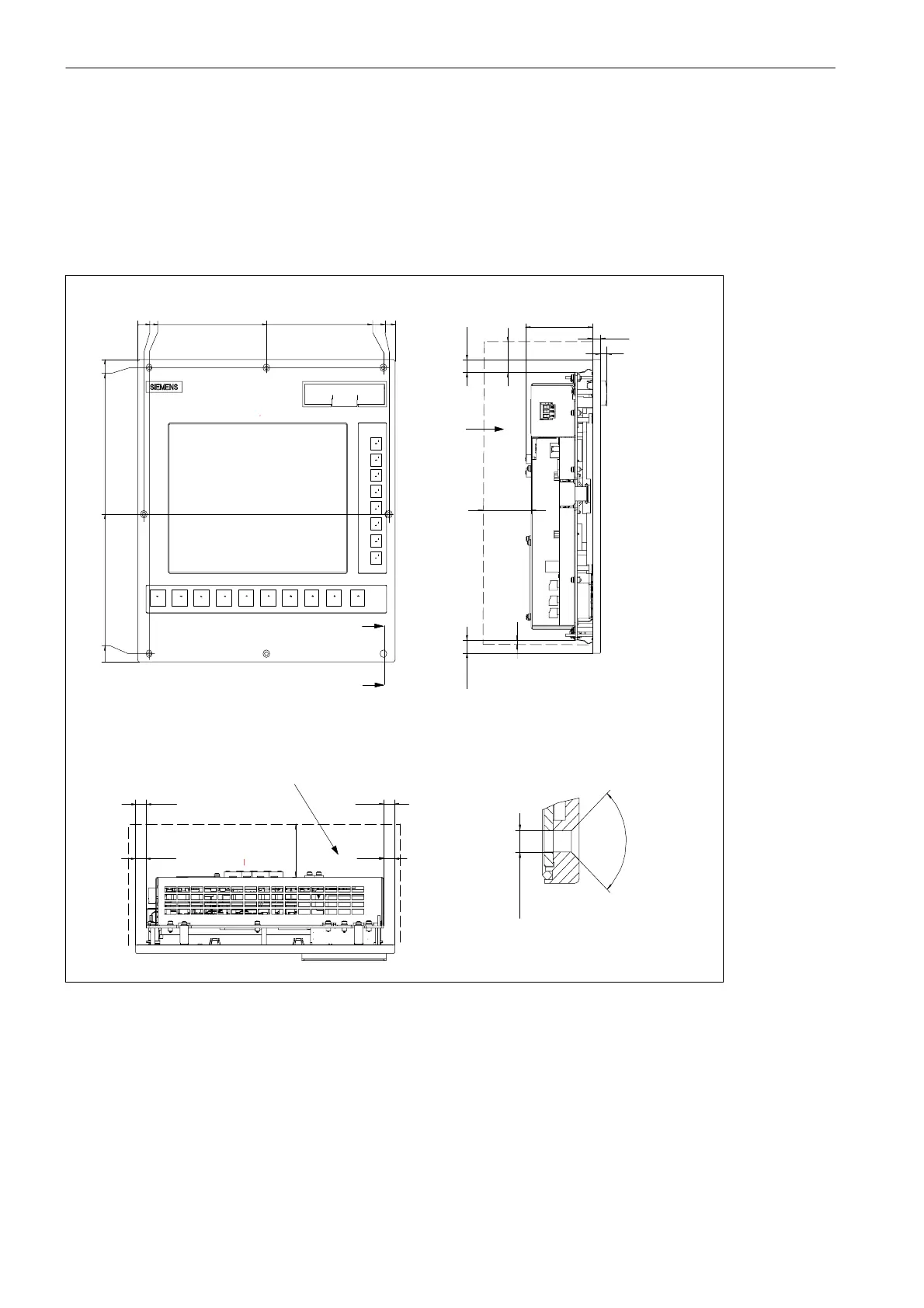

Dimension drawing CNC operator panel (PCU)

Required clearance

8.2

330

302.9

295.6

7.2

13.8

309.4

154.7

161.2

321

90°

∅ 4.5 (8x)

A-A

Fig. 5-1 Dimension drawing for the CNC operator panel
