5.2 Dimension drawing and drilling pattern for the machine control panel (MCP)

Dimension Drawings

5-42

SINUMERIK 802D sl Instruction Manual (BA), 05/2005 Edition

6FC5 397-0CP10-1BA0

5.2 Dimension drawing and drilling pattern for the machine control

panel (MCP)

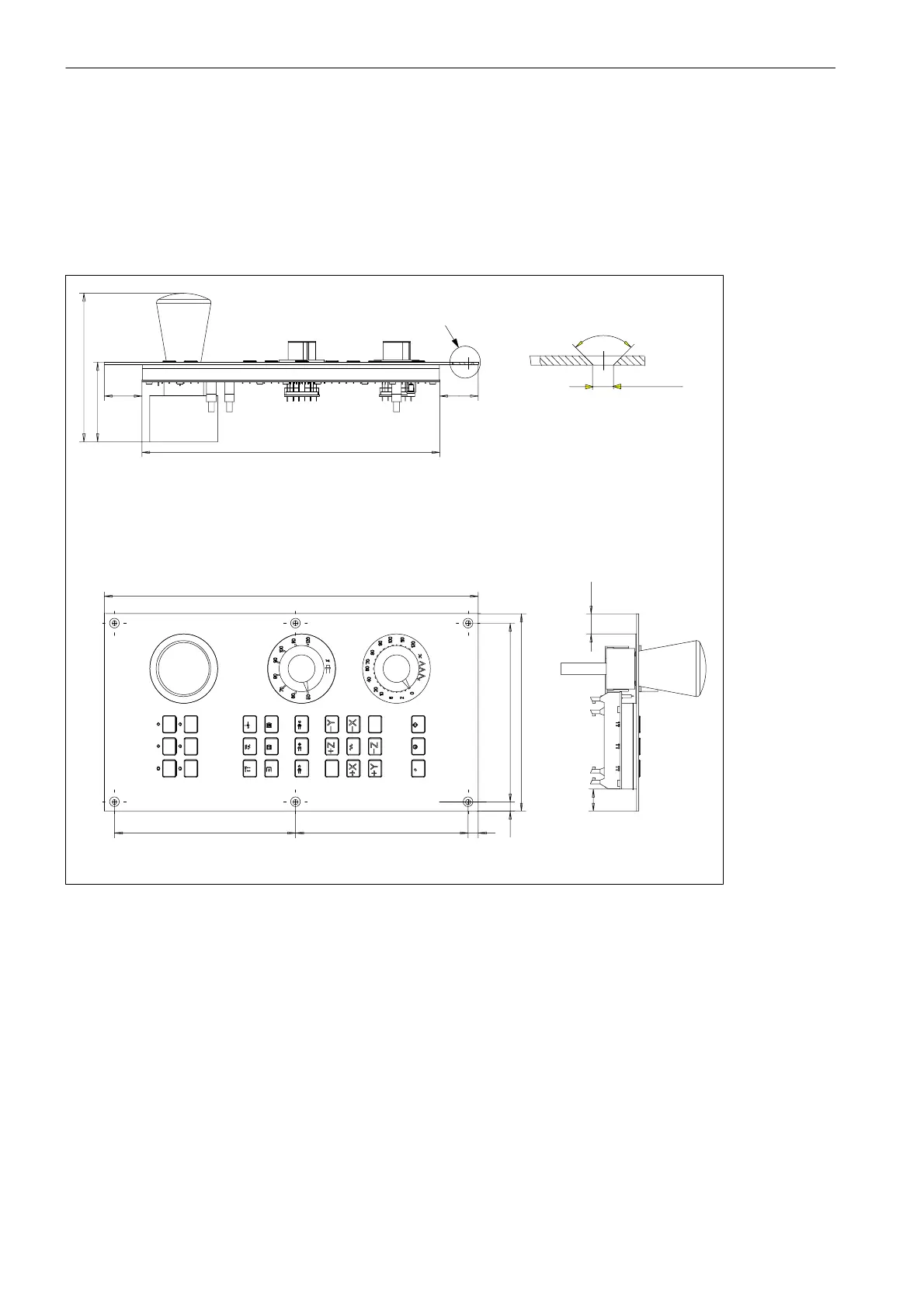

Dimension drawing of the machine control panel (MCP)

128

68.7

170

159.8

330

152.2

263

∅ 4.5 (6x)

154

17.2

90°A

Fig. 5-3 Dimension drawing of the machine control panel
