Dimension Drawings

5.2 Dimension drawing and drilling pattern for the machine control panel (MCP)

5-43

SINUMERIK 802D sl Instruction Manual (BA), 05/2005 Edition

6FC5 397-0CP10-1BA0

Drilling pattern for the machine control panel (MCP)

140

M4 (6x)

290

147

301

141.2

w 2

1) M4 rivet-down, insert nut or M4 extruded hole

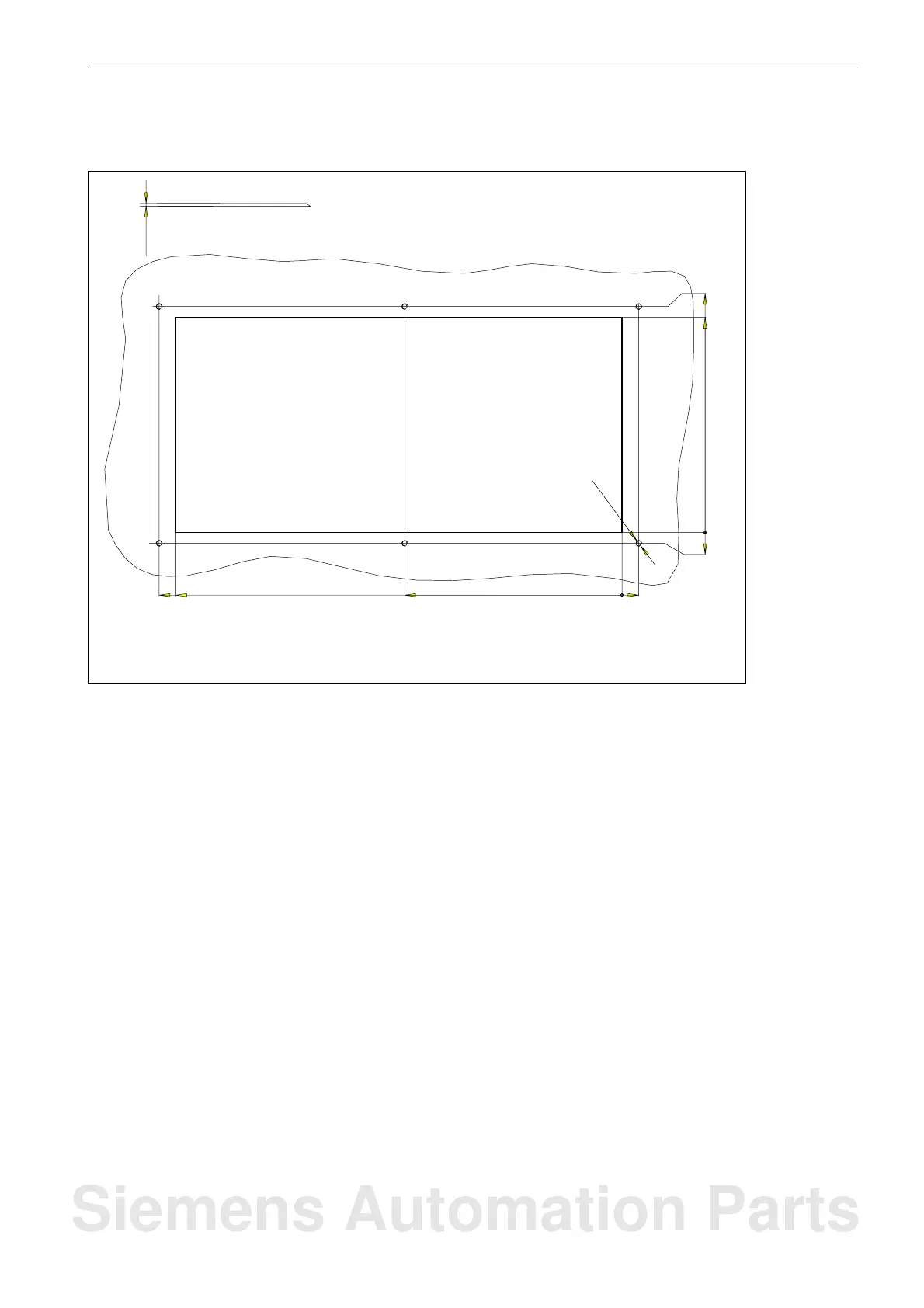

Fig. 5-4 Drilling pattern for the machine control panel
