Description
2-14
SINUMERIK 802D sl Instruction Manual (BA), 05/2005 Edition
6FC5 397-0CP10-1BA0
View

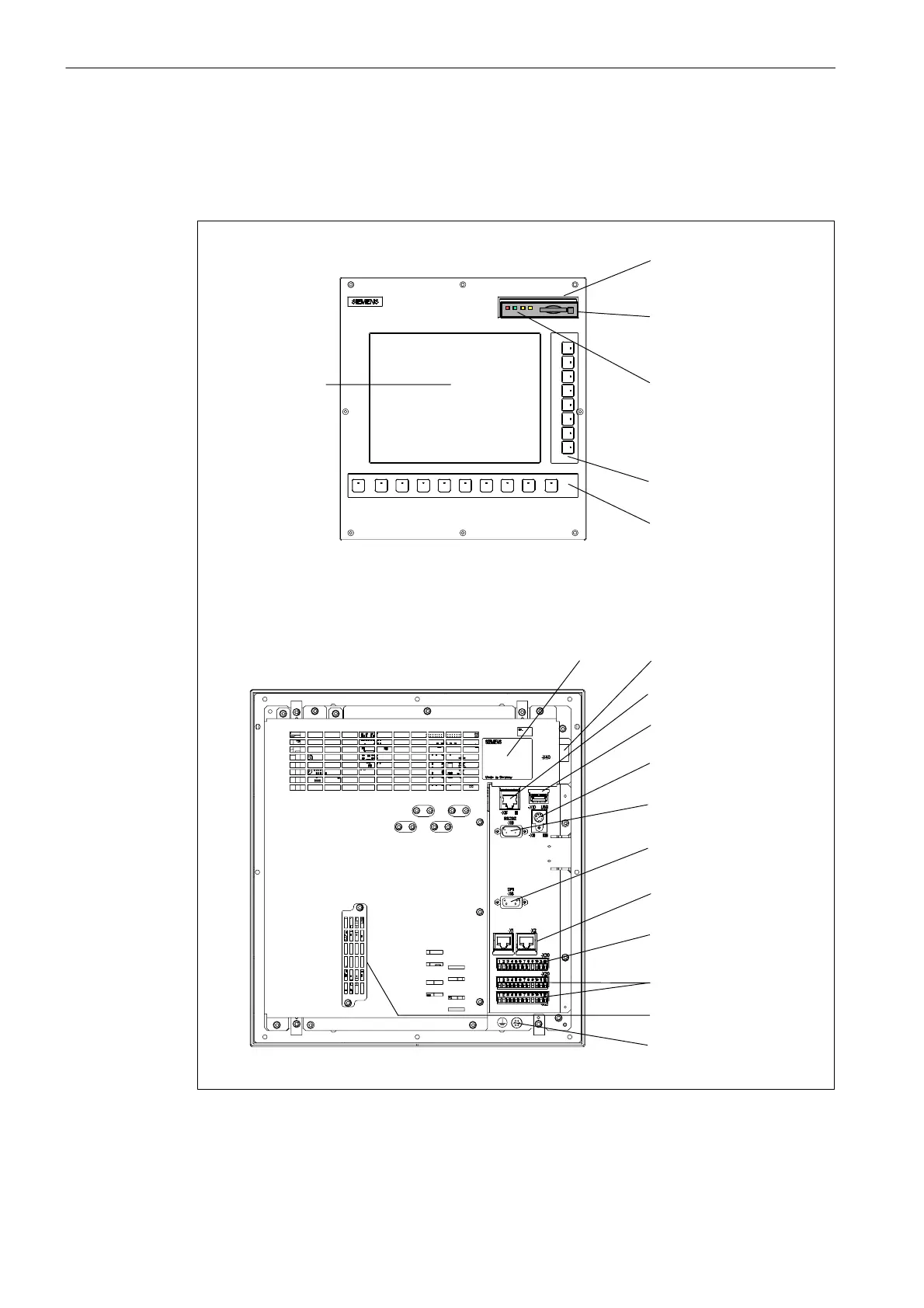

The illustration below shows the CNC operator panel (PCU) with its interfaces and the front
panel elements.
Graphical
display
Front view of the CNC operator panel
(PCU)
Rear view of the CNC operator panel (PCU)
Horizontal softkeys
Vertical softkeys
Power supply
connection X40
Ethernet interface X5
NC full keyboard
connection X9
PROFIBUS DP
interface X6
DRIVE CLiQ interfaceX1
and X2
Digital inputs/outputs
X20, X21
RS232 COM port X8
USB port X10
Handwheel
connectionX30
Compact flash card slot
Error and status
displays
Front hatch, opened
Optional interface
Grounding screw
Rating plate
Fig. 2-1 Position of the interfaces and front elements on the CNC operator panel
