10.3 Creating a drive project ONLINE
Creating a Drive Project
10-160
SINUMERIK 802D sl Instruction Manual (BA), 05/2005 Edition
6FC5 397-0CP10-1BA0
15. Choose the motor type.
16. Choose the motor
according to type (order no.).

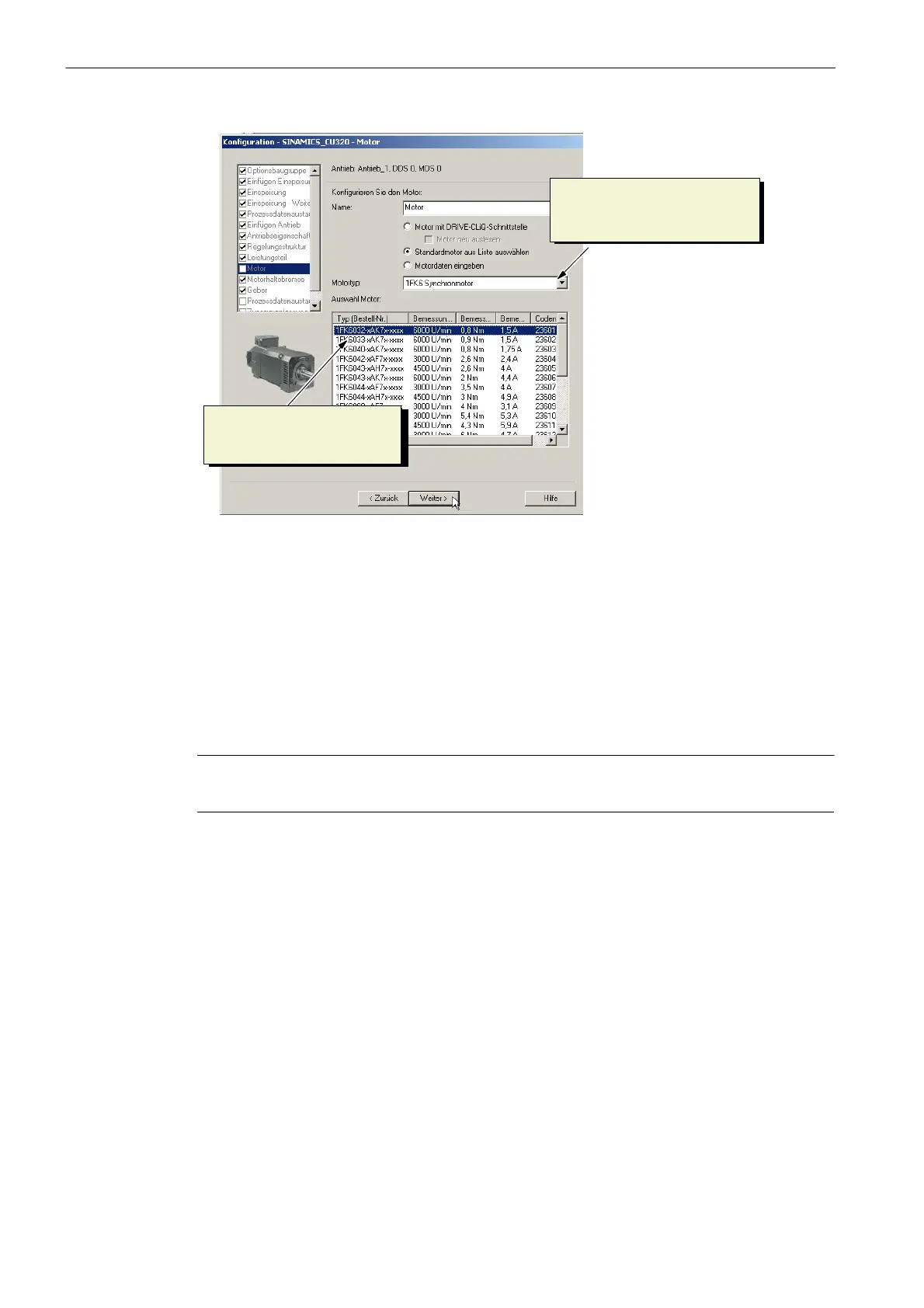

Fig. 10-61 Motor configuration
5. Select the motor type, e.g.:
– 1FK6 synchronous motor
– 1PH7 asynchronous motor
6. Select the appropriate motor from the Motor selection list box according to type
(order no.) (see rating plate) and assign a name (Drive_1_Motor).
7. Click on Continue > and Continue> again to proceed with the wizard until you have
come to the dialog with the summary (see Fig. 10-62 below).
Note
Change only the configuration of the motor. The supply etc. must not be changed!
