PLC diagnostics
13.3 Operating options
Surface grinding
Programming and Operating Manual, 11/2012, 6FC5398-5CP10-3BA0
329
3URJUDP
EORFN

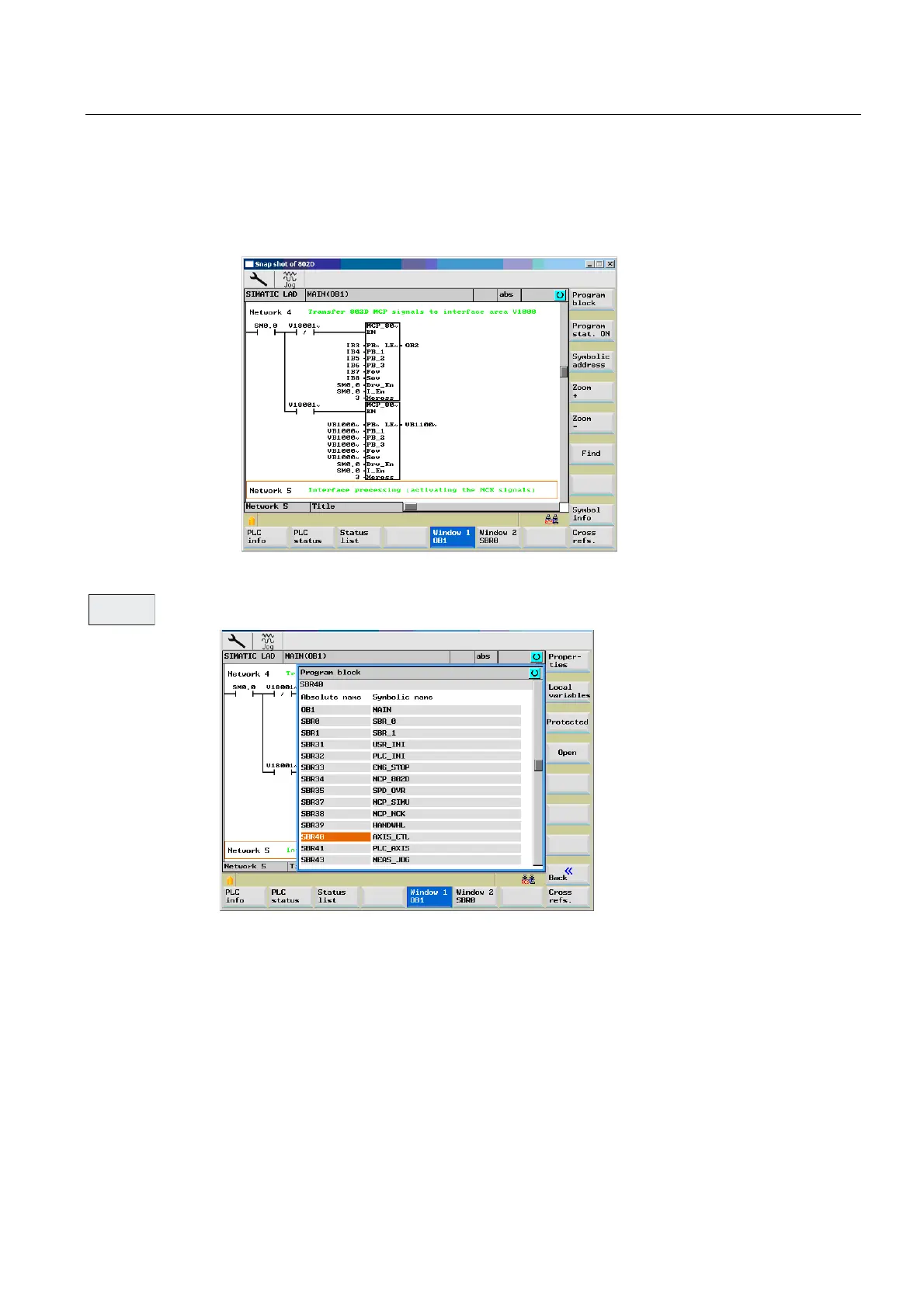

The logics in the ladder diagram (LAD) display the following:
● Networks with program parts and current paths
● Electrical current flow through a number of logical operations
Figure 13-5 Window 1, OB1
This softkey can be used to select the list of the PLC program blocks.
Figure 13-6 Select the PLC program block
