PLC diagnostics
13.3 Operating options
Surface grinding
330 Programming and Operating Manual, 11/2012, 6FC5398-5CP10-3BA0
3URSHU
WLHV
/RFDO
YDULDEOHV
Using this softkey will display the following properties of the selected program block:
● Symbolic name
● Author
● Comments

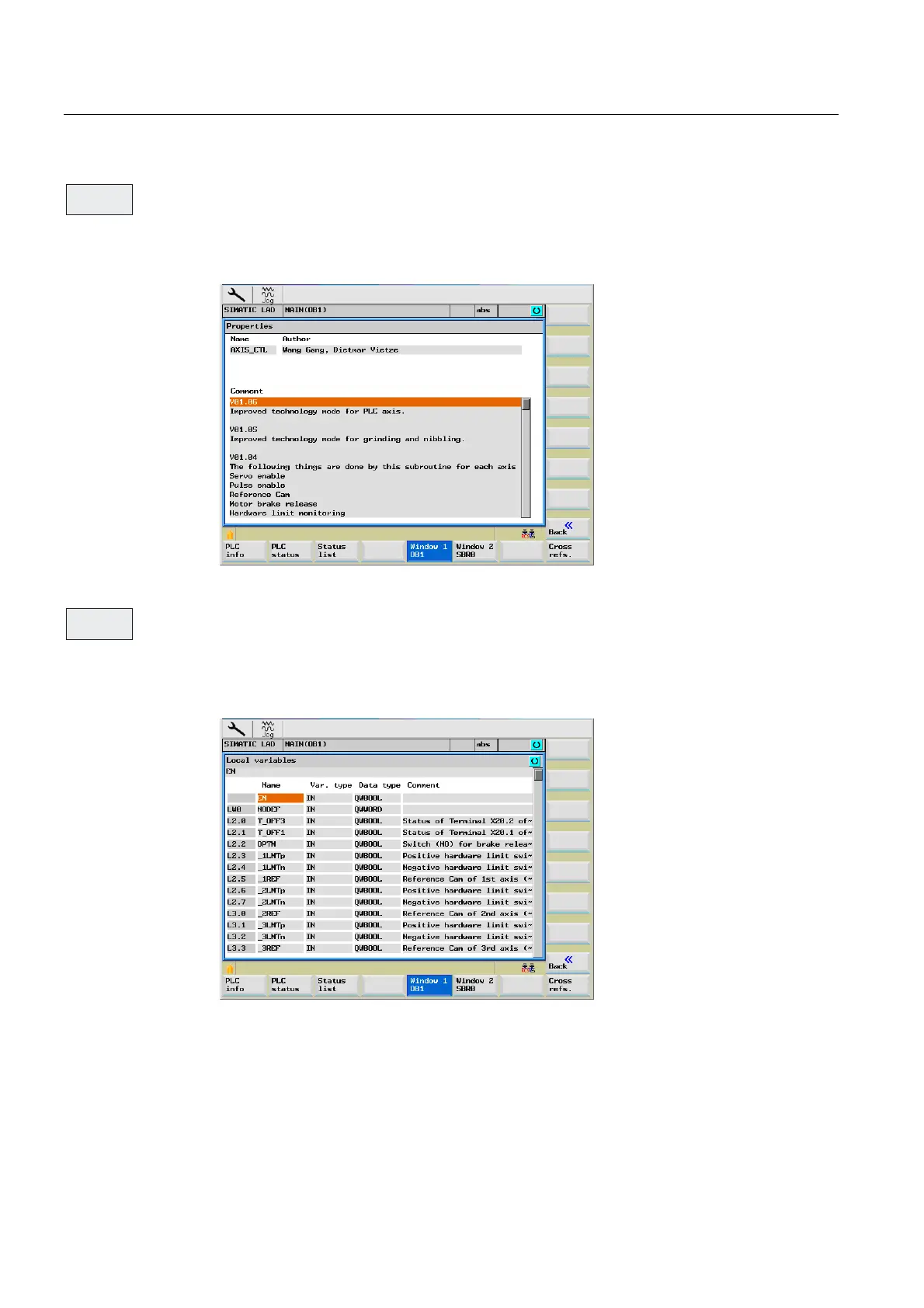

Figure 13-7 Properties of the selected PLC program block
Selecting this softkey displays the table of local variables of the selected program block.
There are two types of program blocks.
● OB1 only temporary local variable
● SBRxx temporary local variable
Figure 13-8 Table of local variables for the selected PLC program block
The text of the current cursor position is additionally displayed in a text field above the table.
