Setup
4.6 Manual grinding
Surface grinding
46 Programming and Operating Manual, 11/2012, 6FC5398-5CP10-3BA0
6WDUW
JULQG
%DFN
Manual grinding, no oscillation

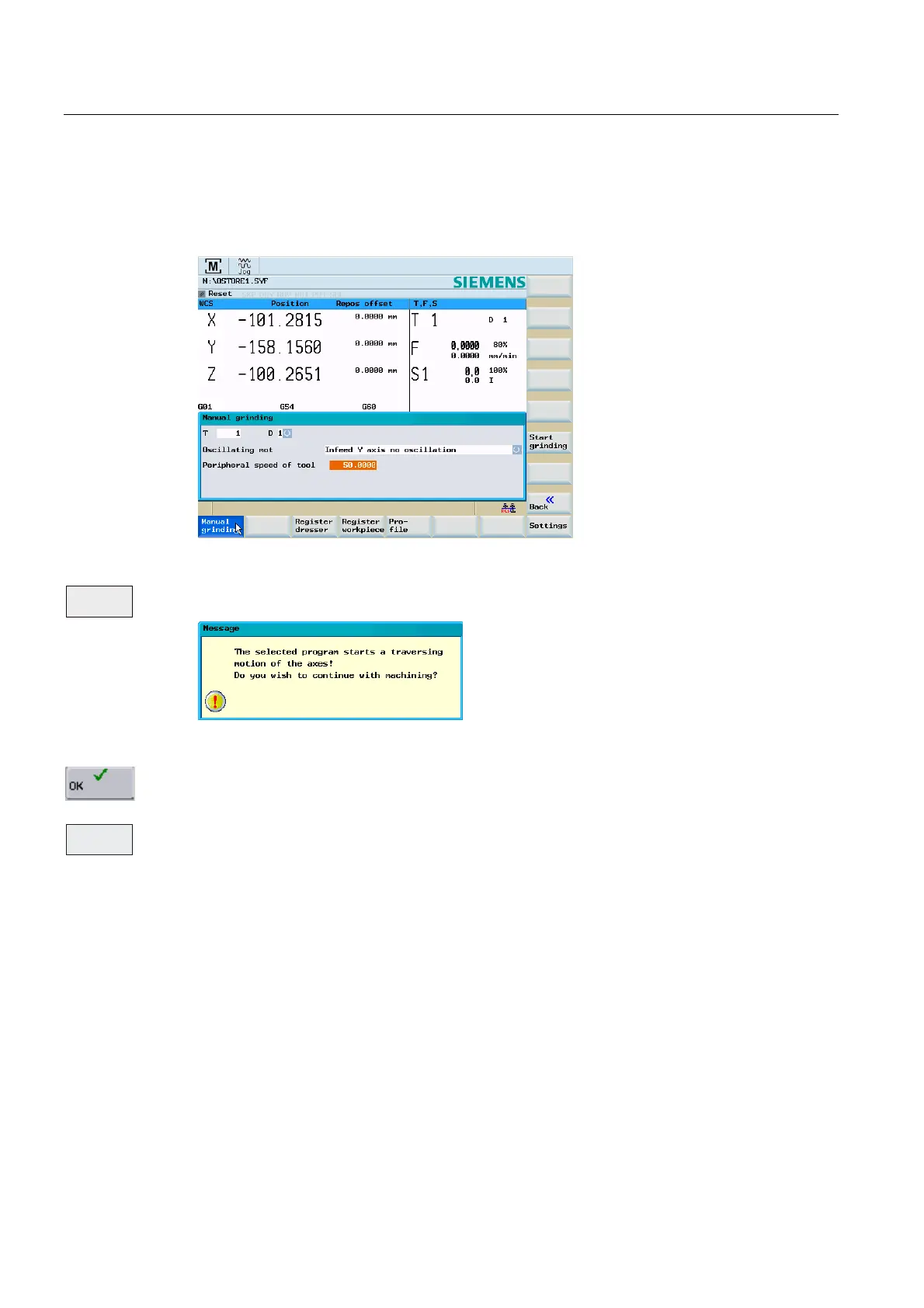

The figure below shows an input screen with parameters for manual grinding without
oscillation:
Figure 4-18 Manual grinding without oscillation
This function starts manual grinding with the handwheel. A prompt appears.
Figure 4-19 Prompt
Execution of manual grinding with handwheel (without oscillation).
Exit manual grinding.
