Manual mode
5.3 MDA mode (manual input) "Position" operating area
Surface grinding
64 Programming and Operating Manual, 11/2012, 6FC5398-5CP10-3BA0
7HFKQRO
GDWD
,QVHUW
WUDQVIHU
&KDQJH
WUDQVIHU
%DFN
5DSLG
WUDYHUVH
Select the appropriate softkey for the traversing block.
"Technological data"

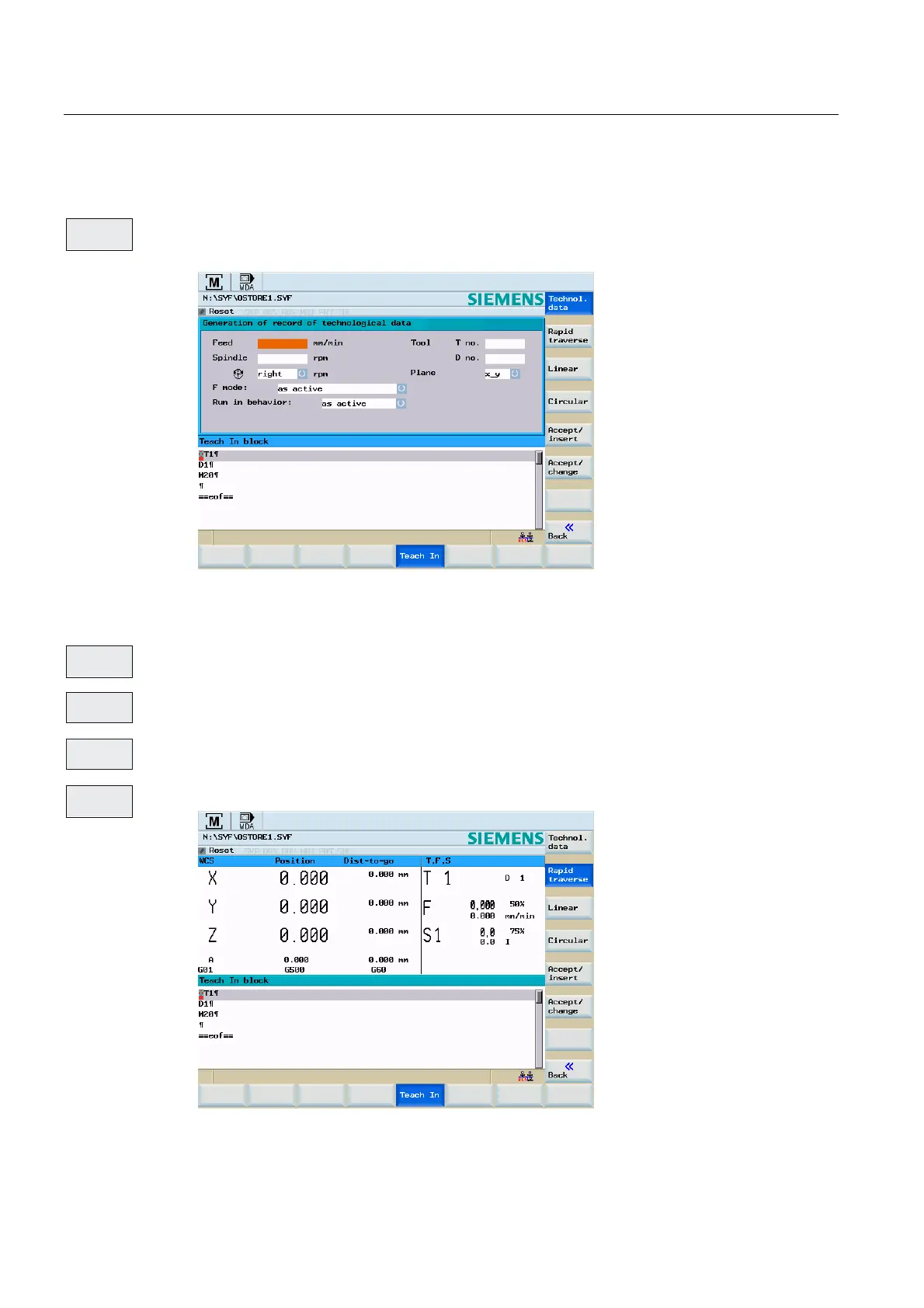

Figure 5-8 Technological data
Enter the appropriate technological data (e.g. feedrate: 1000).
Click "Insert transfer" to add a new part program block. The new part program block will be
added in front of the block selected with the cursor.
Click "Change transfer" to change the selected part program block.
Use "<<Back" to return to the "Teach In" start screen.
"Rapid feed"
Figure 5-9 Rapid traverse
