Manual mode
5.3 MDA mode (manual input) "Position" operating area
Surface grinding
Programming and Operating Manual, 11/2012, 6FC5398-5CP10-3BA0
65
/LQHDU
&LUFXODU
You traverse the axes and teach-in a rapid traverse block with the approached positions.
"Linear"

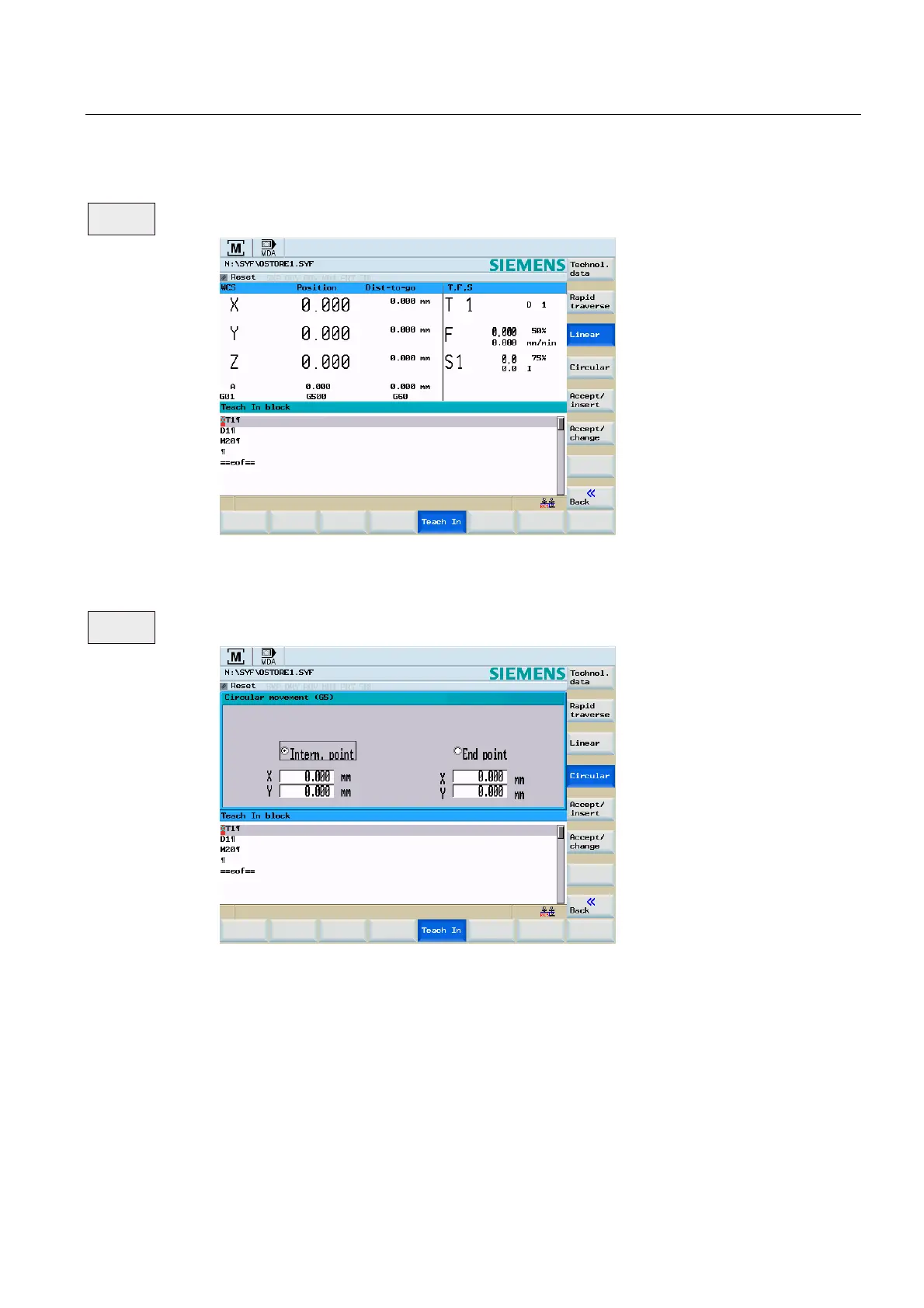

Figure 5-10 Linear
You traverse the axes and teach in a linear block with the approached positions.
"Circular"
Figure 5-11 Circular
You teach in an intermediate point and an end point for a circle.
