Automatic mode
6.5 Simultaneous recording
Surface grinding
78 Programming and Operating Manual, 11/2012, 6FC5398-5CP10-3BA0
%DFN
'LVSOD\
DUHD
:LQGRZ
PLQPD[
● "Show ..."
– "All G17 blocks"
– "All G18 blocks"
– "All G19 blocks"
● "Display areas"
See the following page for a description.
● "Delete window"
● "Cursor"
– "Set cursor"
– "Cursor fine", "Cursor coarse", "Cursor very coarse"
When the cursor keys are pressed, the cross hair moves in small, average or large
steps.
Exit the "Simultaneous recording" function.
"Display areas"
Using the "Display areas" function, you have the possibility of saving a previously selected
area from the simulation display.
The menu for the display area can be selected using the "Window min/max" function.

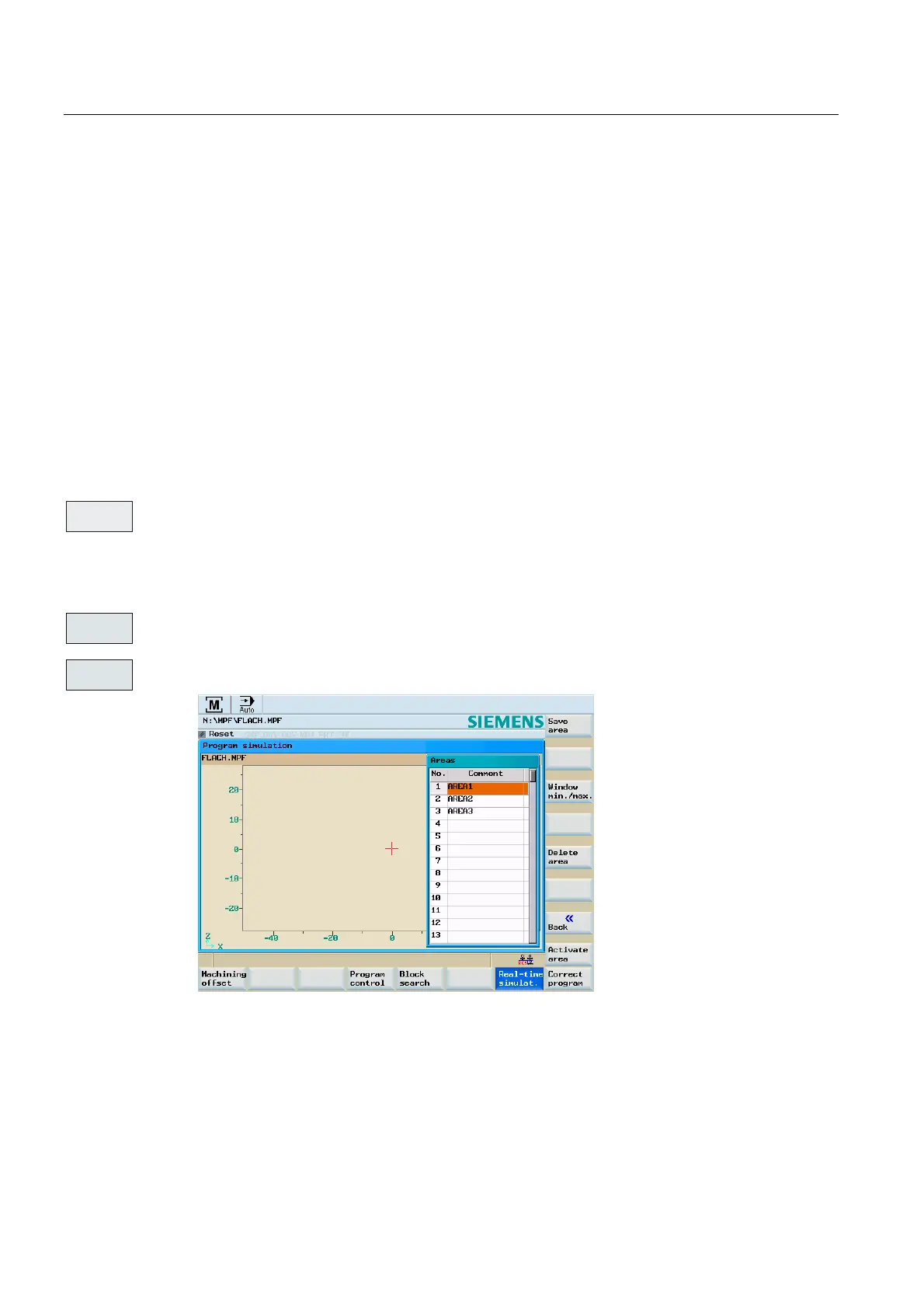

Figure 6-11 Display area "Window min"
