Siemens SIPART Series User Manual

Commissioning
7.4 Commissioning linear actuators
SIPART PS2 with and without HART
Operating Instructions, 10/2013, A5E00074631-11
129

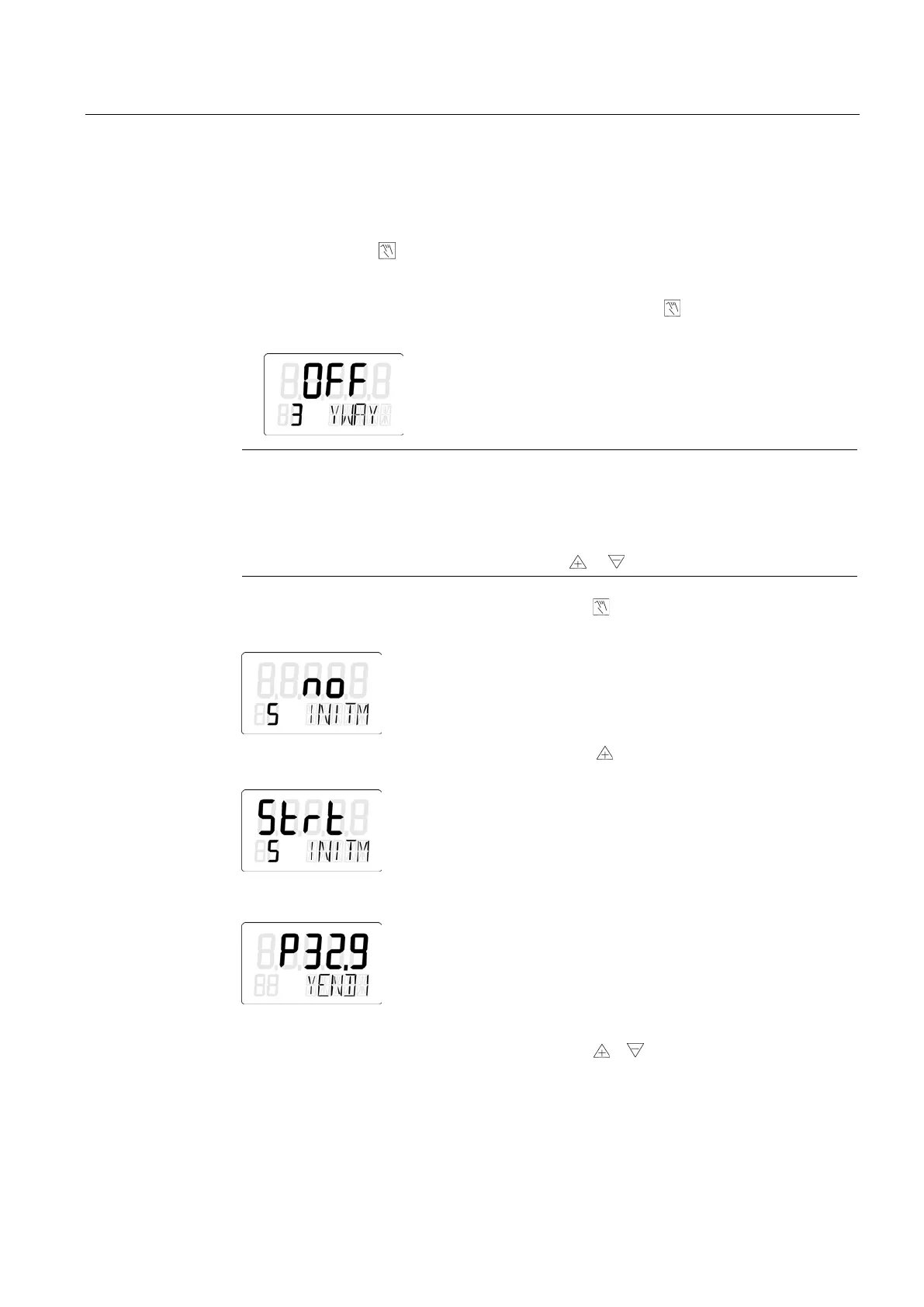

4. Set the "3.YWAY" parameter to determine the total stroke in mm. The setting of the
"3.YWAY" parameter is optional. The display shows the determined total stroke only at
the end of the initialization phase.
– Briefly press the
button if you do not require any information about the total stroke
in mm. You are then directed to parameter 4.
– Call the "3.YWAY" parameter. To do this, briefly press the
button. The display
shows the following:
Note
Set the "3.YWAY" parameter
To set the "3.YWAY" parameter proceed as follows:
1.
On the scale of the lever, read the value marked by the carrier pin.
2.
Set the parameter to the read value with the or button.
5. Call the "5.INITM" parameter. To do this, press the button twice. The display shows
the following:
6. Start the initialization process. To do this, press the
button for at least 5 seconds until
the display shows the following:
The current potentiometer position is output on the display after 5 seconds. Examples of
the displayed potentiometer positions are given below:
7. Determine the end position 1 of the actuator spindle.
8. Move the actuator to the desired position using the
or button.
