Siemens SIPART Series User Manual

Commissioning
7.4 Commissioning linear actuators
SIPART PS2 with and without HART
130 Operating Instructions, 10/2013, A5E00074631-11

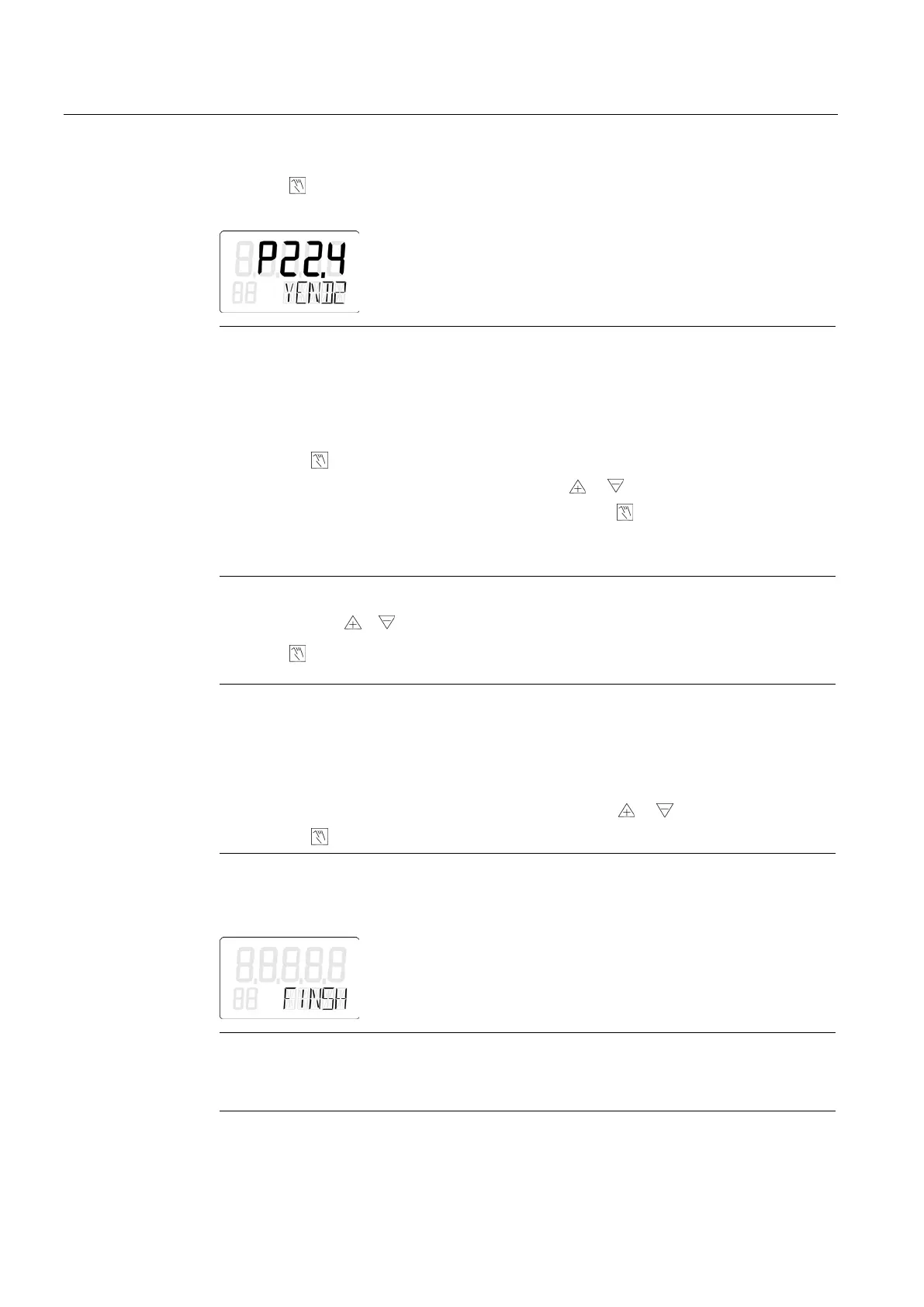

9. Press the button. The current position of the actuator is applied. The display shows the
following:
Note
Fault message "RANGE"
The selected end position is beyond the permissible measuring range if the "RANGE"
message is ou
tput on the display. Correct the settings as follows:
1.
Move the friction clutch until the display shows "OK".
2.
Press the button.
3.
Move the actuator to another position using the or button.
4.
Abort the manual initialization process by pressing the button.
5.
Then return to "P manual mode" mode.
6.
Correct the actuator travel and the position detection.
10.Determine the end position 2 of the actuator spindle. Move the actuator to the desired
position using the
or button.
11.Press the
button. The current position of the actuator is applied.
Note
Fault message "Set Middl"
The lever arm is not in the horizontal position if the "Set Middl" message is output on the
display. To correct the fault, set the reference point of the sine correc
tion. Proceed as
follows:
1.
Move the lever arm to the horizontal position using the or button.
2.
Press the button.
12.The initialization process is automatically resumed. Initialization steps "RUN1" to "RUN5"
are output in the bottom line of the display. The following is displayed when the
initialization has been completed successfully:
Note
Total stroke
If the "3.YWAY" paramet
er has been set, the display shows the total stroke in mm.
