Description
3.2 Structure
SIPART PS2 with and without HART
Operating Instructions, 10/2013, A5E00074631-11
19
①
Pressure gauge block, single-acting
②
Valve
③
Yoke / actuator yoke
④
Single-acting positioner in non-flameproof aluminum enclosure
⑤
Actuator

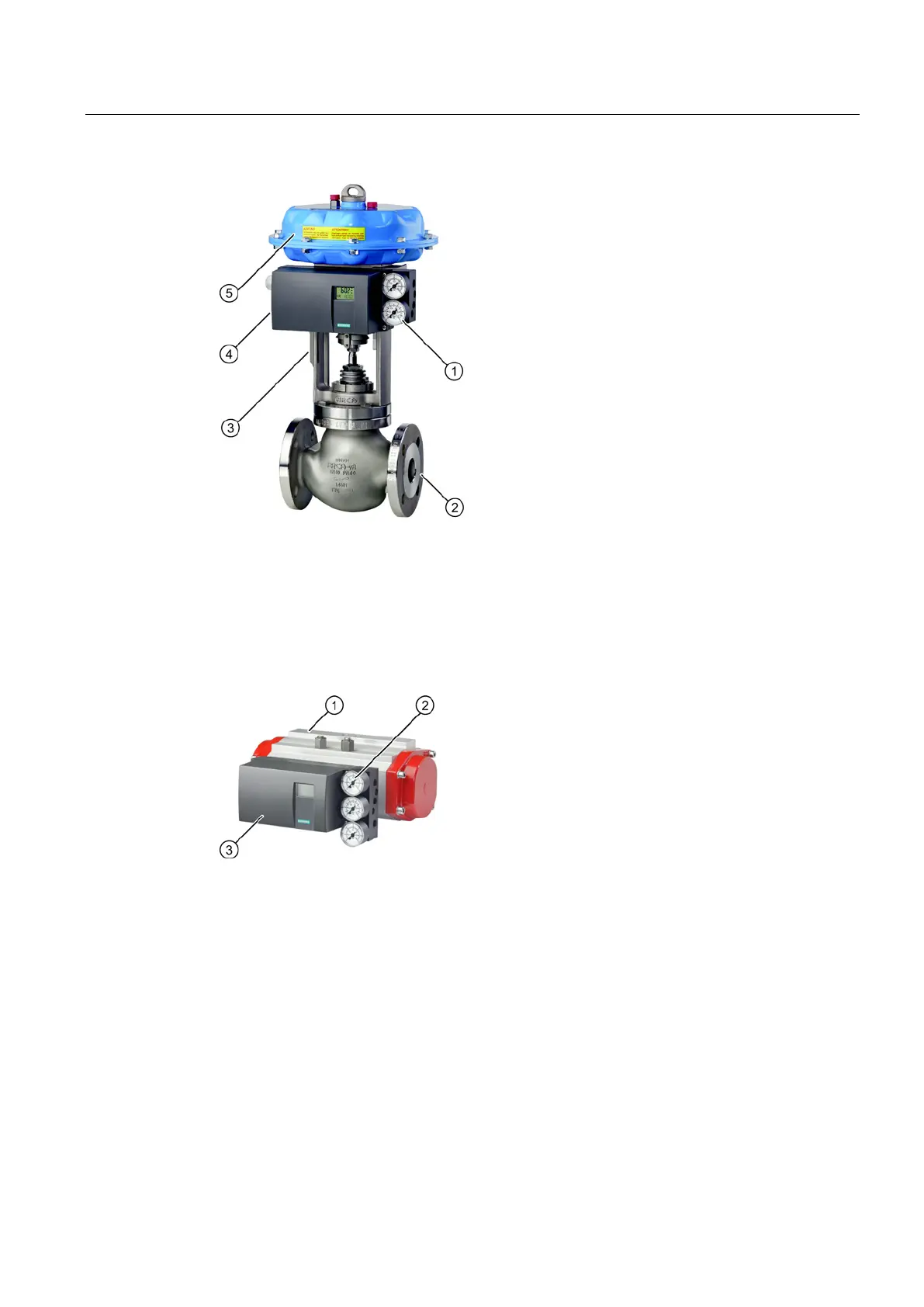

Figure 3-1 Positioner attached to a single-acting linear actuator
①
Part-turn actuator
②
Pressure gauge block, double-acting
③
Double-acting positioner in macrolon enclosure
Figure 3-2 Positioner attached to double-acting part-turn actuator
