Siemens SIPART Series User Manual

Installing/mounting
4.2 Mounting the linear actuator
SIPART PS2 with and without HART
Operating Instructions, 10/2013, A5E00074631-11
35

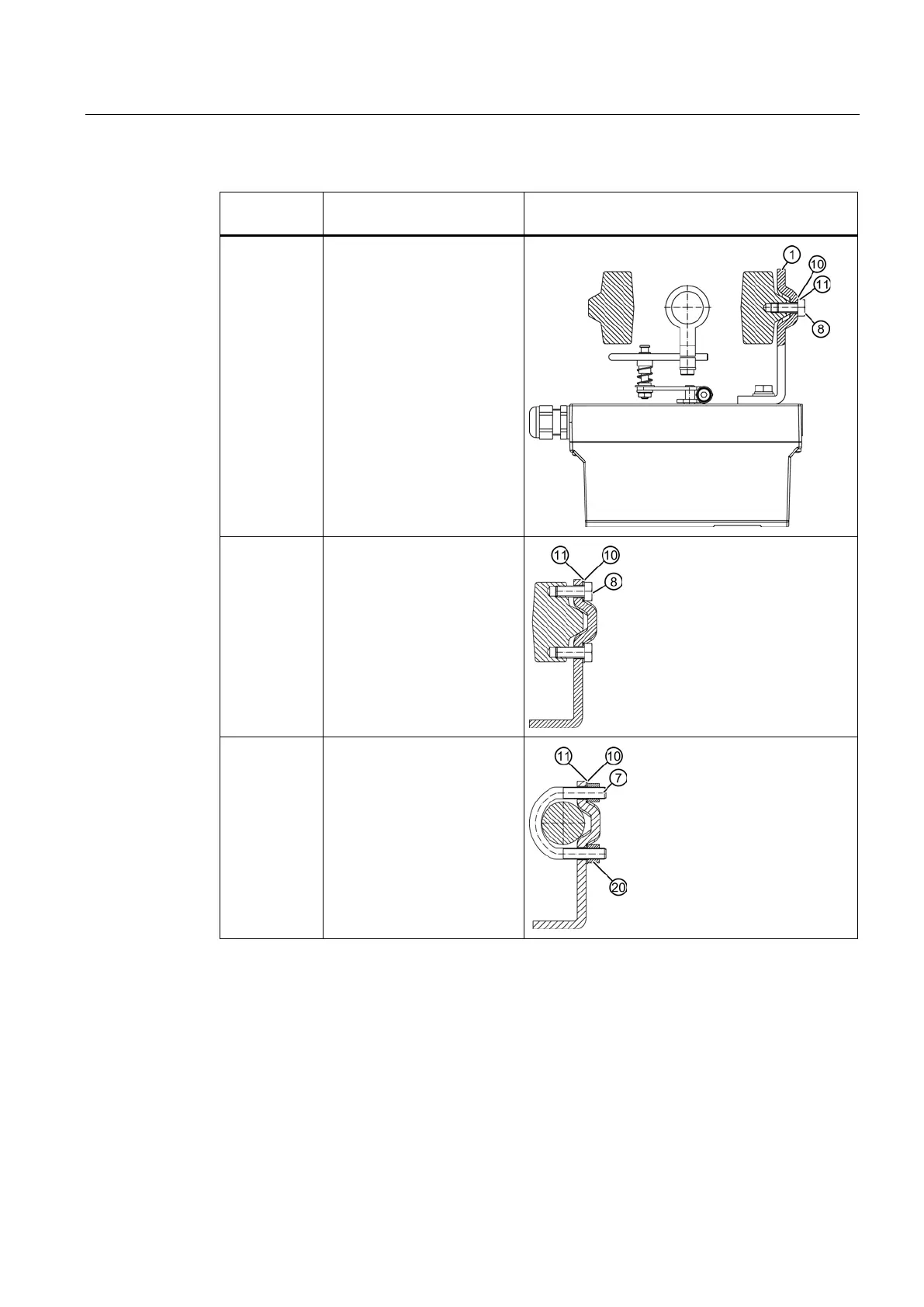

Actuator type
Required installation
components
Yoke with fin
• Hexagon bolt
⑧
• Washer ⑪
• Spring lock washer
⑩
Yoke with
plane surface
• Four hexagon bolts
⑧
• Washer ⑪
• Spring lock washer
⑩
Yoke with
columns
• Two U–bolts
⑦
• Four hexagon nuts ⑳
• Washer
⑪
• Spring lock washer
⑩
