Installing/mounting
4.2 Mounting the linear actuator
SIPART PS2 with and without HART
38 Operating Instructions, 10/2013, A5E00074631-11
7. Install the following components on the lever â‘¥: Socket cap screw â‘°, spring lock
washer
⑯, flat washer ⑫, square nut ⑲.

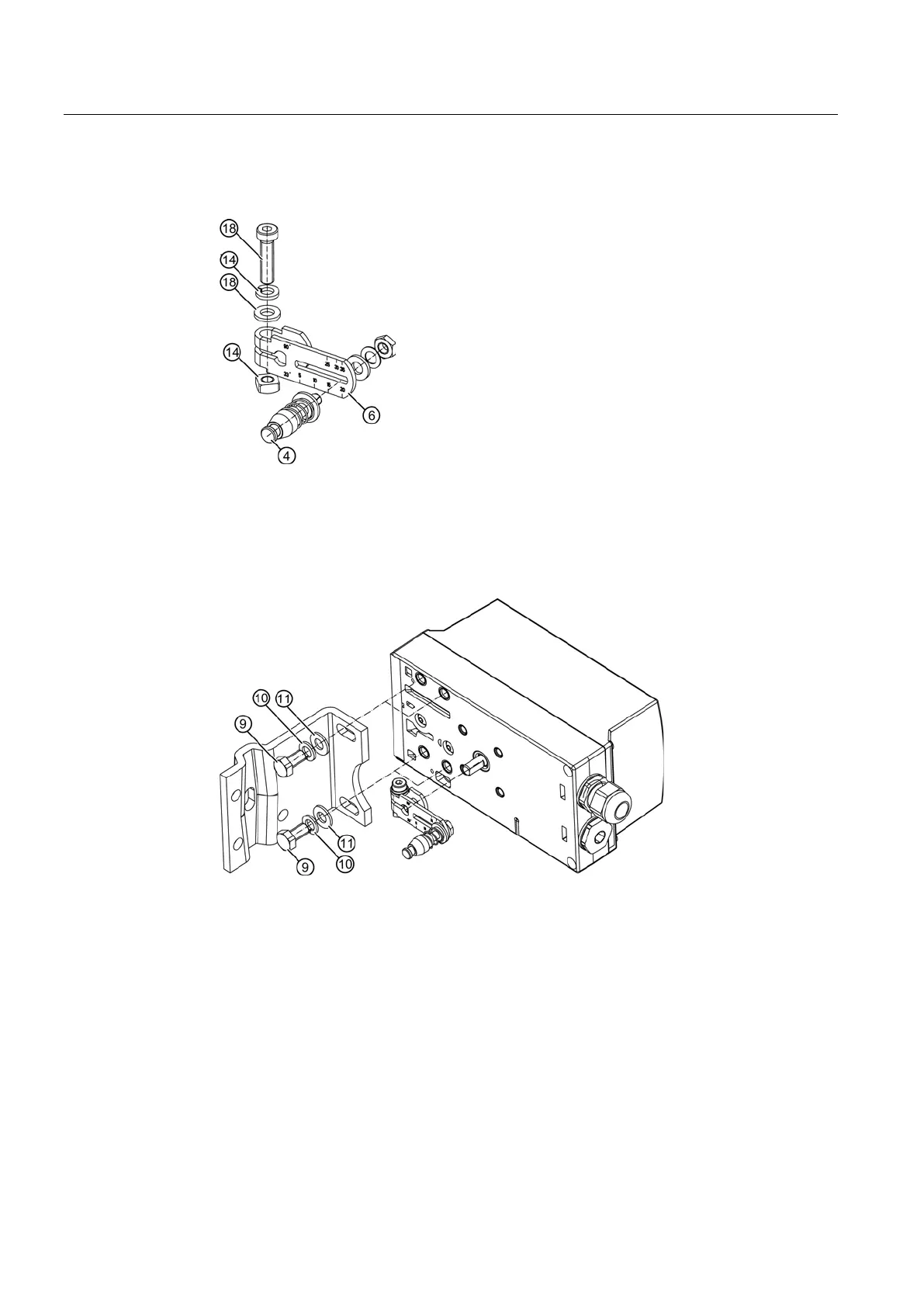

Figure 4-3 Components on the lever
8. Push the pre-installed lever â‘¥ up to the end stop on the positioner shaft. Fasten the
lever
â‘¥ using a socket cap screw â‘°.
9. Install the mounting bracket
①at the rear side of the positioner. Use 2 hexagon bolts ⑨,
2 spring lock
⑩ and 2 flat washers ⑪.
Figure 4-4 Linear actuator in
enclosure
