Installing/mounting
4.3 Mounting the part-turn actuator
SIPART PS2 with and without HART
Operating Instructions, 10/2013, A5E00074631-11
43

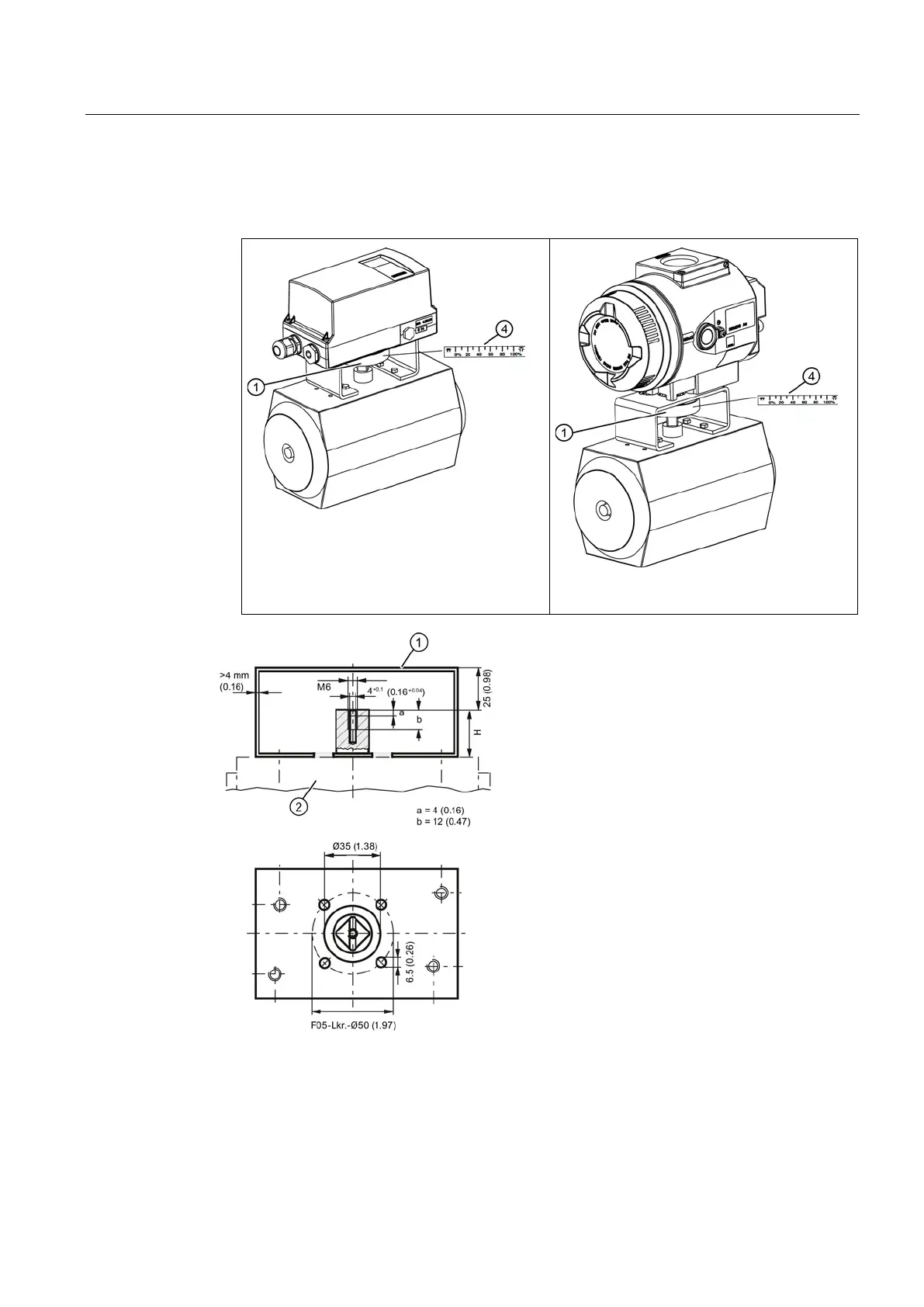

9. Stick the scale â‘£ with the direction of rotation or the swivel range on the coupling wheel
â‘ . The stickers with scale are self-adhesive.
Part-turn actuator in non-flameproof enclosure
Part-turn actuator in flameproof enclosure
Fixing level of positioner on mounting plate
Figure 4-7 Dimensions of mounting plate in accordance with VDI/VDE 3845 (depends on actuator)
