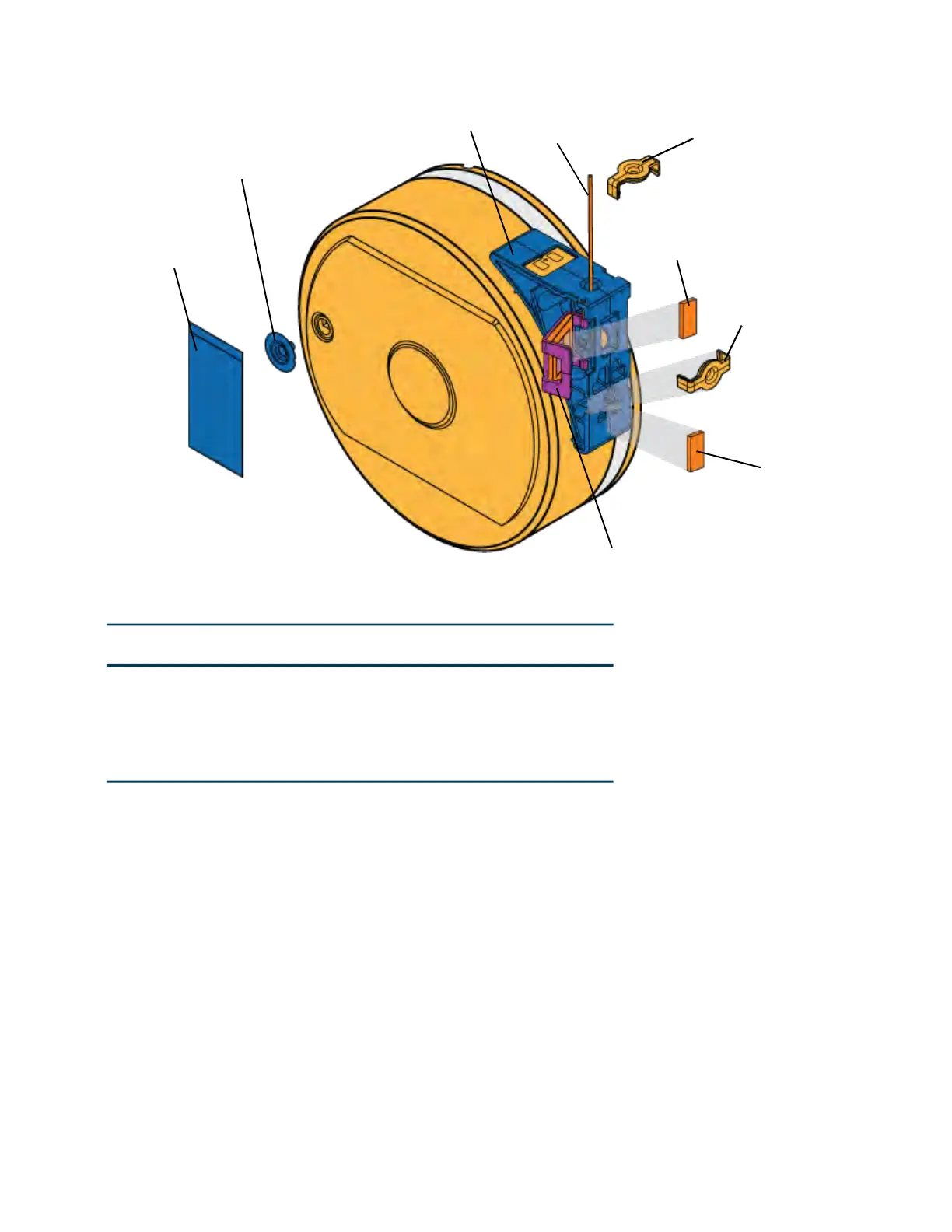

Figure 4-39: Canister Installation
10. Drop the filament drive block down onto the canister by pulling out the canister drive lever.
(Fi
gure 4-40)
• Verify that the filament drive is aligned with the filament exit.
•
The LED is OFF at this point.
•
After about five seconds, the SmartSpool chip is read by the system and the drive block motor
s
tarts turning.
11. Perform “
Preload filament to the drive wheels:” on page 93.
Item Description Item Description
1 Foil Tape 6A Plastic Plug (operating position)
2 Anti-Rotation Plug 6B Plastic Plug (storage position)
3 Thumbwheel Door 7A Foam Gasket (operating position)
4 Canister Snout 7B Foam Gasket (storage position)
5 Filament
1
2
3
6A
5
6B
7B
7A
4
