Suzuki GSF1250 - Throttle Cable Routing Diagram

1D-2 Engine Mechanical:

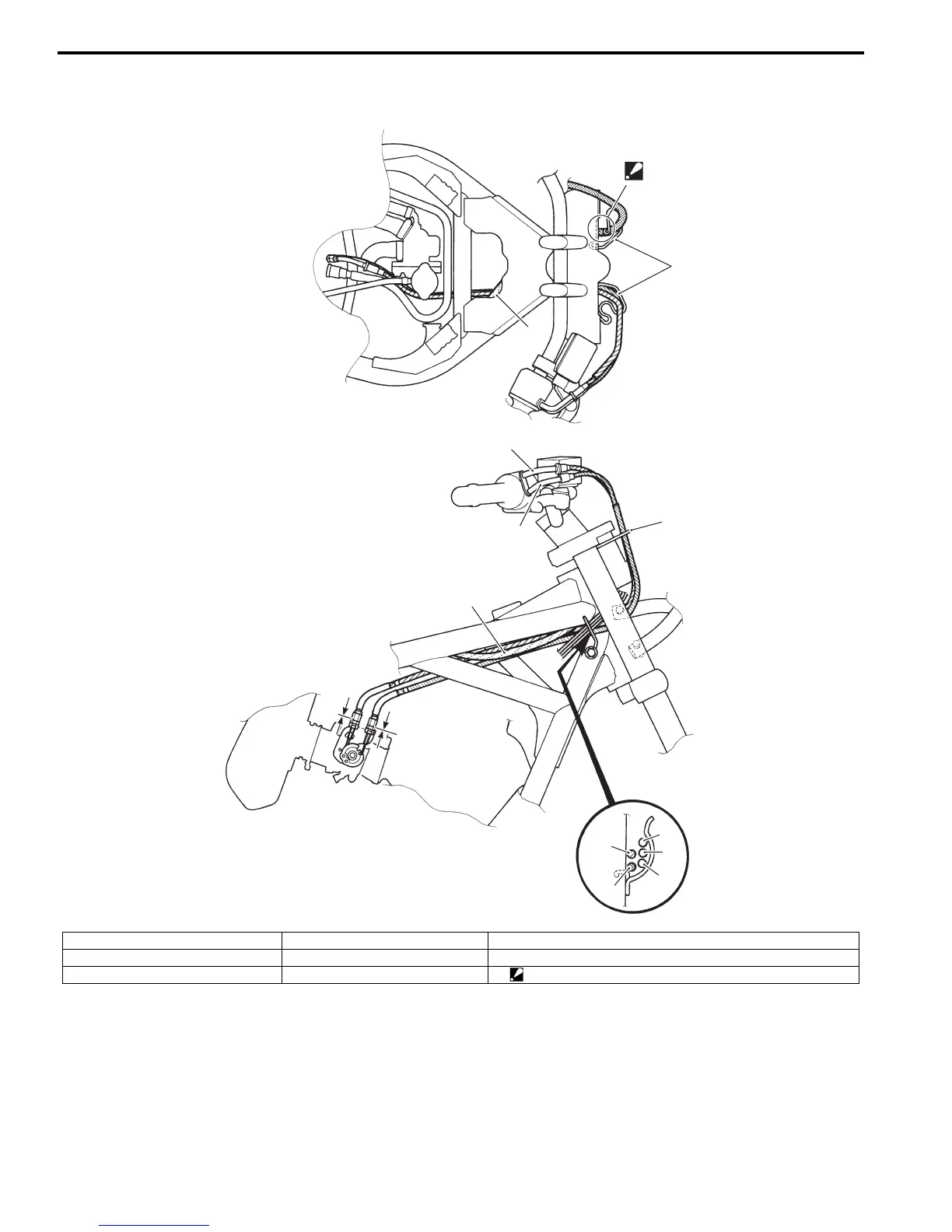

Throttle Cable Routing Diagram
B718H11402002
1
2
“A”
4
3
2
1
3
4
5
6
7
“a”
“a”
I718H1140308-03
1. Wiring harness 4. Throttle cable No.2 7. Ignition switch lead wire
2. Cable guide (GSF1250S/SA only) 5. Handlebar switch lead wire (L) “a”: 0 mm (0 in)
3. Throttle cable No.1 6. Handlebar switch lead wire (R) “A”: Don’t contact the tip of cable guide with the upper bracket.
