Suzuki GSF1250 - Rear Wheel Assembly Construction

Wheels and Tires: 2D-14

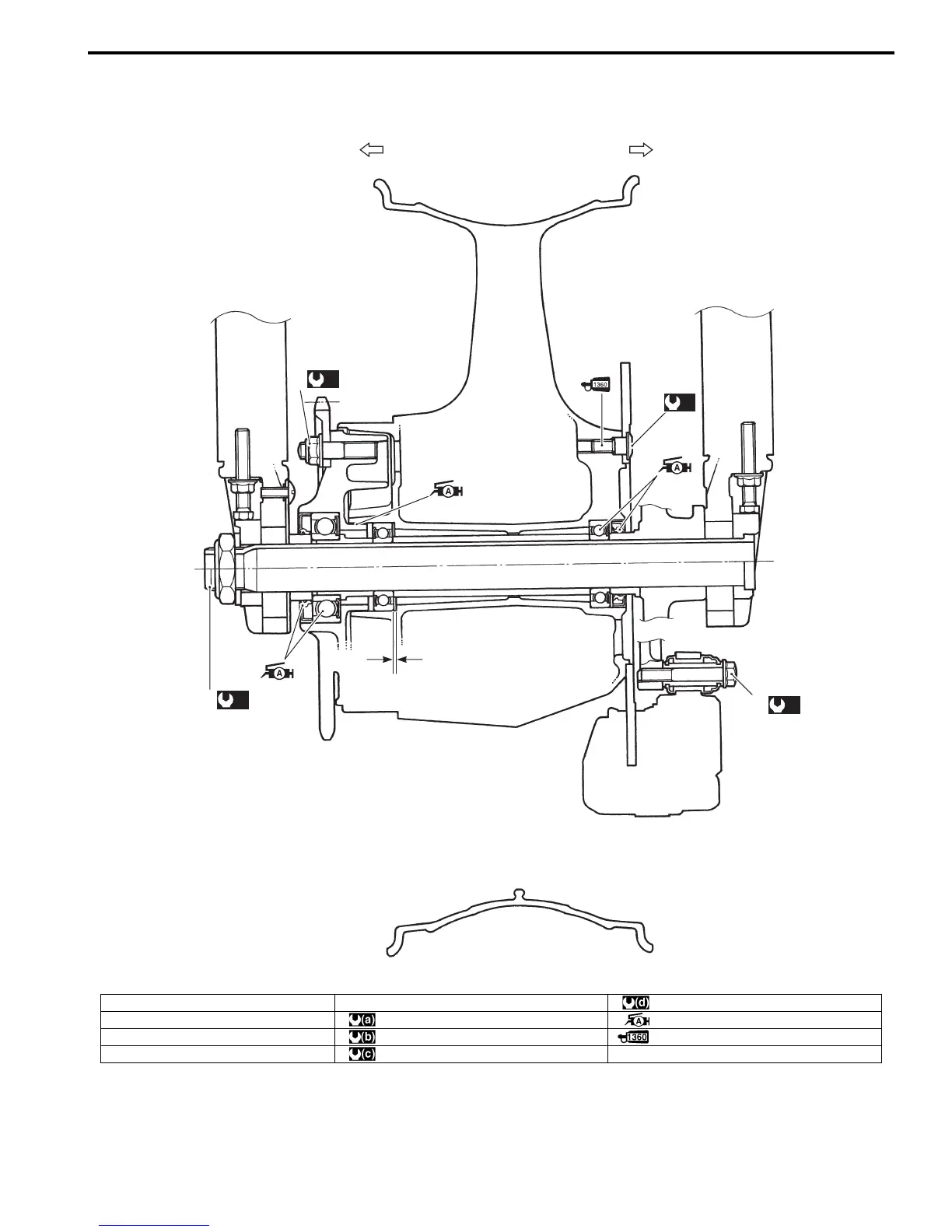

Rear Wheel Assembly Construction
B718H12406018
GSF1250/S
“a”
(d)
4
(a)
1
(b)
2
Left Right
(c)
3
I718H1240027-03
1. Rear sprocket nut “a”: Clearance : 23 N⋅m (2.3 kgf-m, 16.5 lb-ft)
2. Rear axle nut : 60 N⋅m (6.0 kgf-m, 43.5 lb-ft) : Apply grease.
3. Brake caliper mounting bolt : 100 N⋅m (10.0 kgf-m, 72.5 lb-ft) : Apply thread lock to thread part.
4. Brake disc bolt : 22 N⋅m (2.2 kgf-m, 16.0 lb-ft)
